Grandway Optical Instruments Series - Top Panel; Back Panel

FHO5000
2
I II III IV
V VI VII VIII
I
II
III

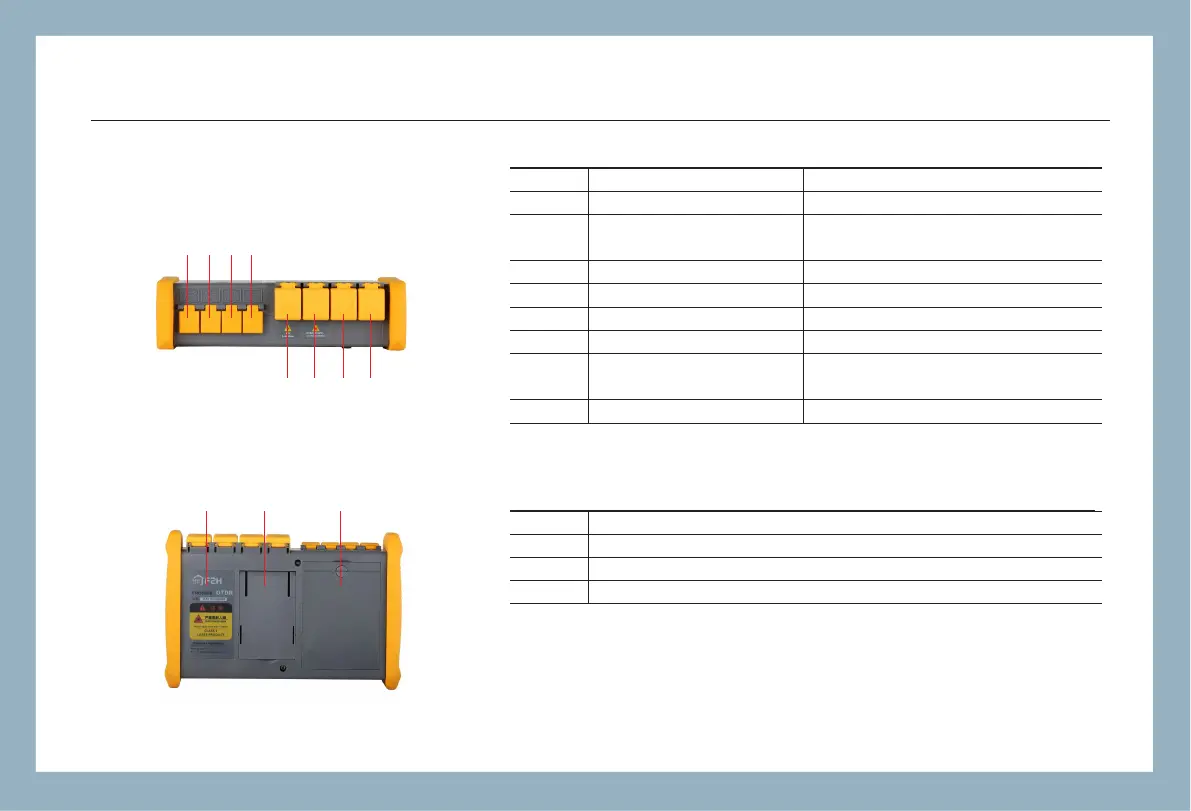

0.2 Top Panel
Num.
I
II
III
Item
Warning label
Battery compartments
Supporting plate
0.3 Back Panel
Num.
I
II
III
IV
V
VI
VII
VIII
Item
AC-DC port
Main USB
Internet Access
Sub USB(mini USB)
VFL(visual fault locator) port
OTDR1 port
OTDR2 port
OPM(Power Meter) port
Description
Connect to AC adapter
Connect external device like: U disk
,keyboard and FIM Probe
Connect to internet
Remote control through PC
VFL module port
1310/1490/1550nm Test/Laser Source port
850/1310nm or 1625nm Test/Laser Source
port
