FC9000-UM-251-9370 8-18
8 Electrical Adjustment
8.11 Adjusting the Pen Force
This adjustment will set the pen force.
Perform this procedure if adjustment values could not copy from the SUB-NVRAM when replacing the main
board or if the Pen Block Assembly was replaced.
If you replace the main board, use the following procedure to input the recorded adjustment values.
If you replace the pen block assembly, you must measure the pen force by using the Correx Dial Tension
gauge and adjust pen force to the target force with following procedure.
Required jigs and tools when the pen block assembly was replaced
• Correx Dial Tension gauges (1000 g, 500 g, 300 g, 50 g)
• Cutter plunger
8.11.1 Inputting the pen force from the recorded value
How to adjust the pen force from the recorded value
(1) Turn on the power while pressing the SLOW and the ENTER keys.
(2) Load a media to the plotter.

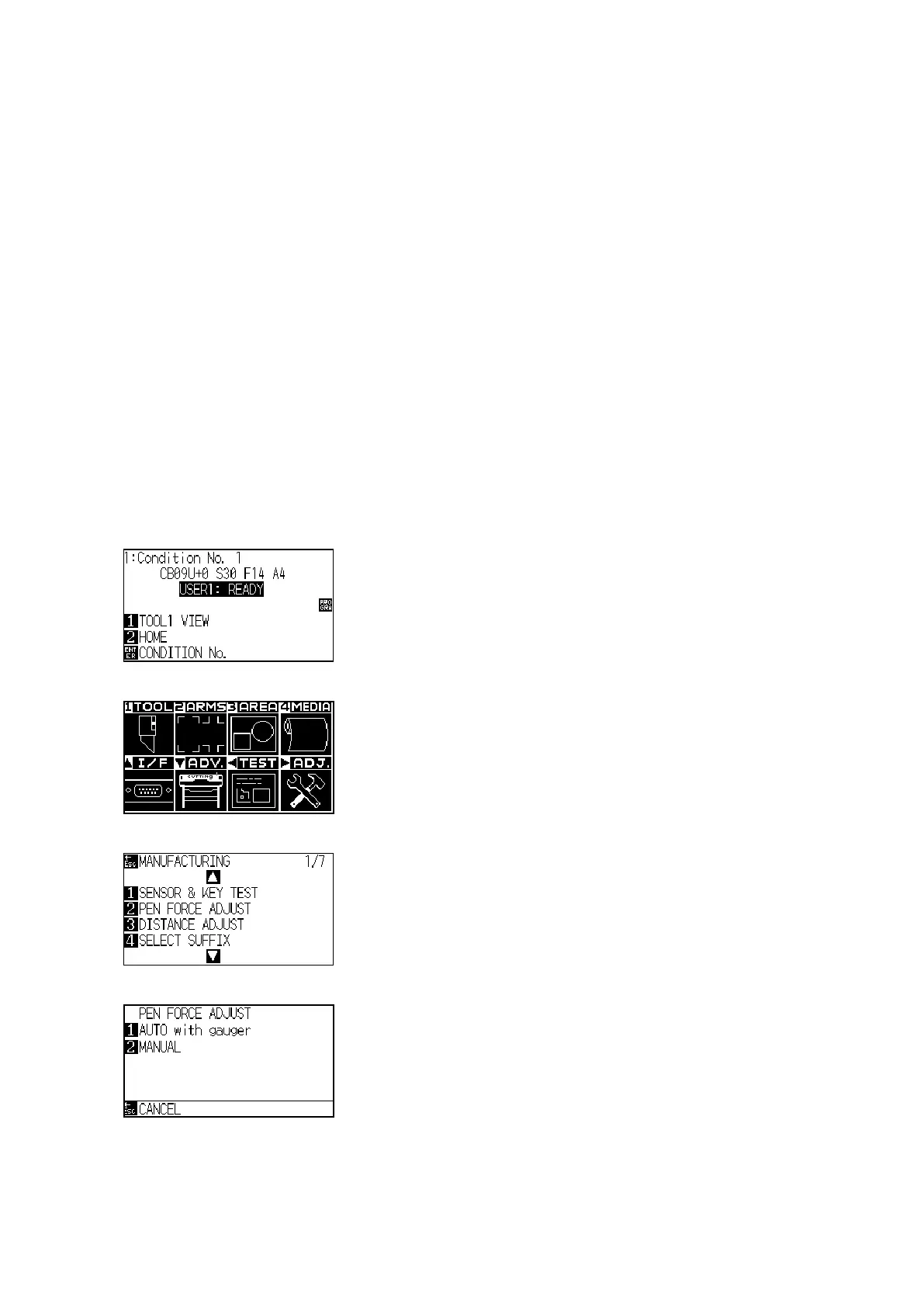

(3) The plotter displays the following menu.
(4) Press the PAUSE/MENU key to display the following menu.
(5) Press the Right Position key to display the adjustment menu shown below.
(6) Press the F2 key (PEN FORCE ADJUST) to display the following menu.
To Next Page
