GRAPHTEC FC9000-75 - Adjusting the Spacing between Tool 1 and Tool 2

FC9000-UM-251-9370 8-57
8 Electrical Adjustment
8.19.2 Adjusting the Spacing Between Tool 1 and Tool 2
Preparation
• Preparethetwobertip-pens(KF700-BK)andthebertip-penplunger(PHP31-FIBER).
Installthebertip-pens(KB700-BK)tothebertip-penplunger(PHP31-FIBER)correctly,thelengthfortip
ofbertip-peisimportanttodetectthepens.
• Conrmthebit7ofSW1isONfor2nd Pen option.
This setting depends on the model.

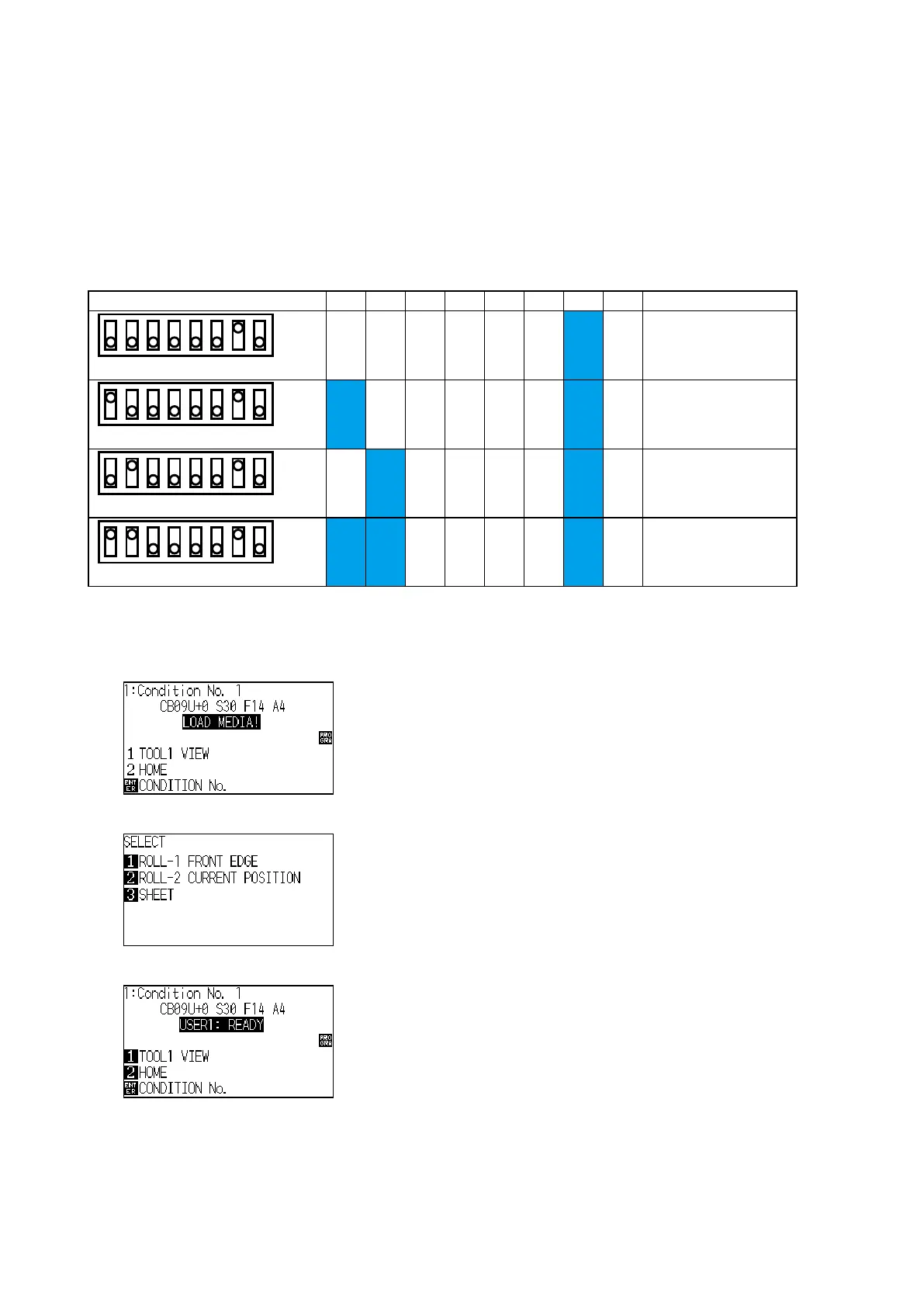

Dip Switch (SW1) 1 2 3 4 5 6 7 8 Model
12345678
ON
OFF
OFF OFF OFF OFF OFF OFF ON OFF
FC9000-75
2nd pen option model
12345678
ON
OFF
ON OFF OFF OFF OFF OFF ON OFF
FC9000-100
2nd pen option model
12345678
ON
OFF
OFF ON OFF OFF OFF OFF ON OFF
FC9000-140
2nd pen option model
12345678
ON
OFF
ON ON OFF OFF OFF OFF ON OFF
FC9000-160
2nd pen option model
How to adjust the spacing between tool 1 and tool 2
(1) Turn on the power while pressing the SLOW and the ENTER keys.
(2) The plotter displays the following menu.
(3) Load the copy paper to the plotter, and then the plotter displays the following menu.
(4) Press the 3 key (SHEET) to display the following menu.
