GRAPHTEC FC9000-75 - 10.3 Pen Block

FC9000-UM-251-9370 10-4
10 PARTS LIST

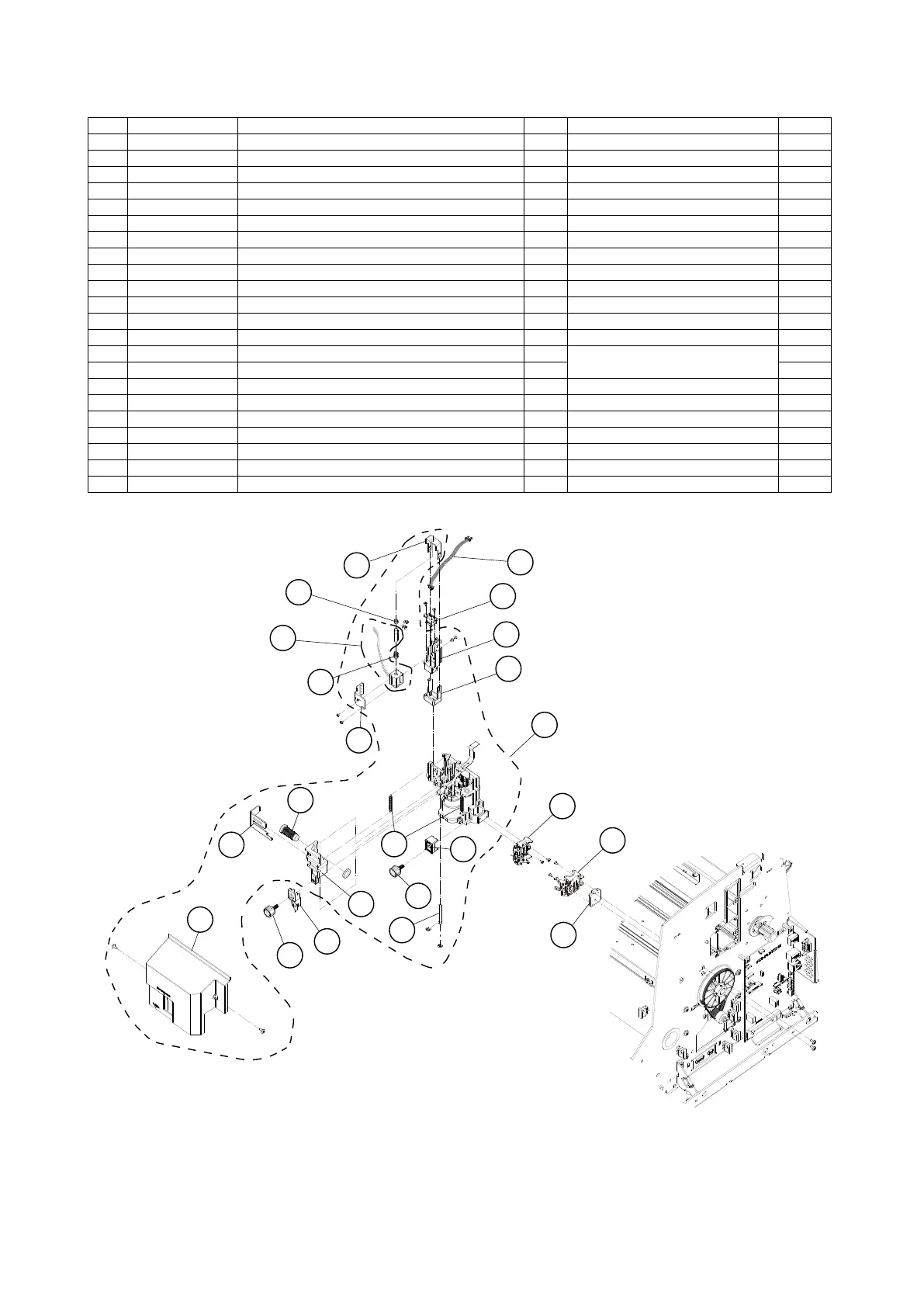

10.3 Pen Block
No. Part No. Description Q’ty Remarks Rank
1 U792900745 Pen Block Assembly, FC90 1 A
2 U682180300 Registration Mark Sensor, KR4012-GTLF 1 KR4012-GTLF A
3 U621803703 Holder, Registration Mark Sensor 1 C
4 U621803722 Hood, Registration Mark Sensor 1 C
5 U621803711 Hanger, Registration Mark Sensor 1 C
6 U621403200 Spring, Cover Down 1 C
7 U500052472 Solenoid, TDS-05B-DC12V 1 B
8 U621263340 Spring, RMS Up 1 C
9 U621803731 Bracket, Solenoid, FC9 1 C
10 U692180161 Cable, CA512216A 1 Registration Mark Sensor C
11 U621263460 Latch, TL-294 1 A
12 U621803813 Cross Cutter Key Bracket 1 C
13 U380205351 Spring, E-535 2 C
14 U621803803 Cross Cutter Base 1 This part is including in the Pen Block Assy. D
15 U621803821 Shaft, Cross Cutter 1 D
16 U621833091 Clamp, Cutter Pen Holder 1 A
17 U621353011 Thumb Screw L10 1 A
18 PM-CC-002 Cross Cutter Blade, PM-CC-002 1 Supply parts S
19 U621804161 Pen Block Cover 1 B
20 U792900785 2nd Pen Holder Assembly 1 For 2nd pen option A
21 U792900790 2nd Pen Station Assembly 1 For 2nd pen option A
22 U621863501 2nd Pen Station Plate 1 This part is including in the 2nd pen option. D
Pen Block
1
20
21
2
3
4
5
6
7
12
14
16
17
17
18
15
22
13
11
19
10
9
8
