FC9000-UM-251-9370 7-4
7 DISASSEMBLY AND REASSEMBLY
7.1.4 Replacing the Center Cover
How to detach the center cover
(1) Detach the right side cover (Refer to subsection 7.1.1.).
(2) Detach the control panel assembly (Refer to subsection 7.1.3.).

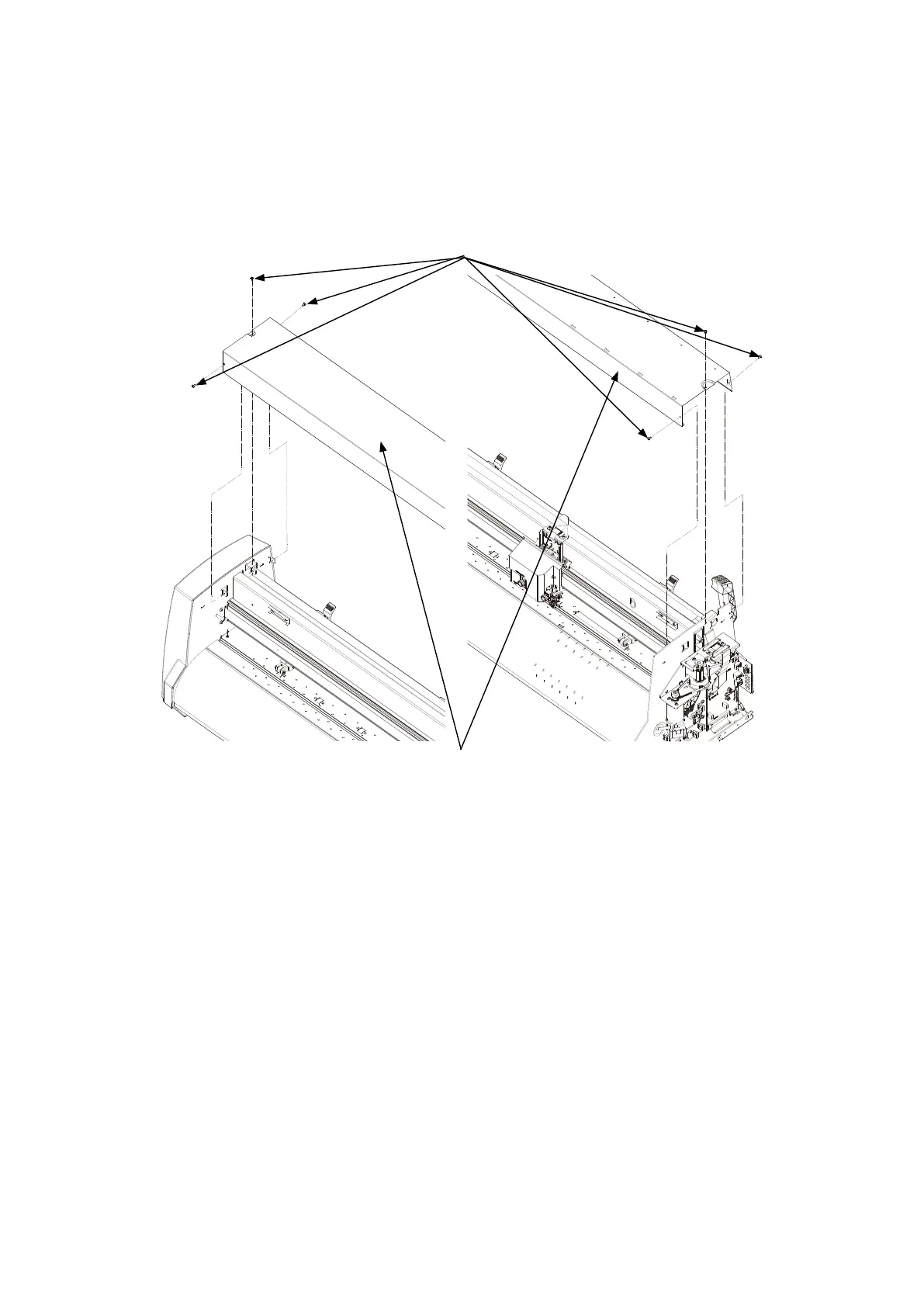

(3) Remove the six M3L6 binding head screws holding the center cover.
M3L6 binding head screw
Center cover
(4) Detach the center cover.
How to reinstall the center cover assembly
(1) Reattach the center cover in the reverse order in which it was detached.
