GRAPHTEC FC9000-75 - Replacing the Pen Block

FC9000-UM-251-9370 7-18
7 DISASSEMBLY AND REASSEMBLY
7.2.6 Replacing the Pen Block
How to detach the pen block
(1) Detach the right side cover (Refer to subsection 7.1.1.).
(2) Detach the control panel assembly (Refer to subsection 7.1.3.).
(3) Detach the center cover (Refer to subsection 7.1.4.).

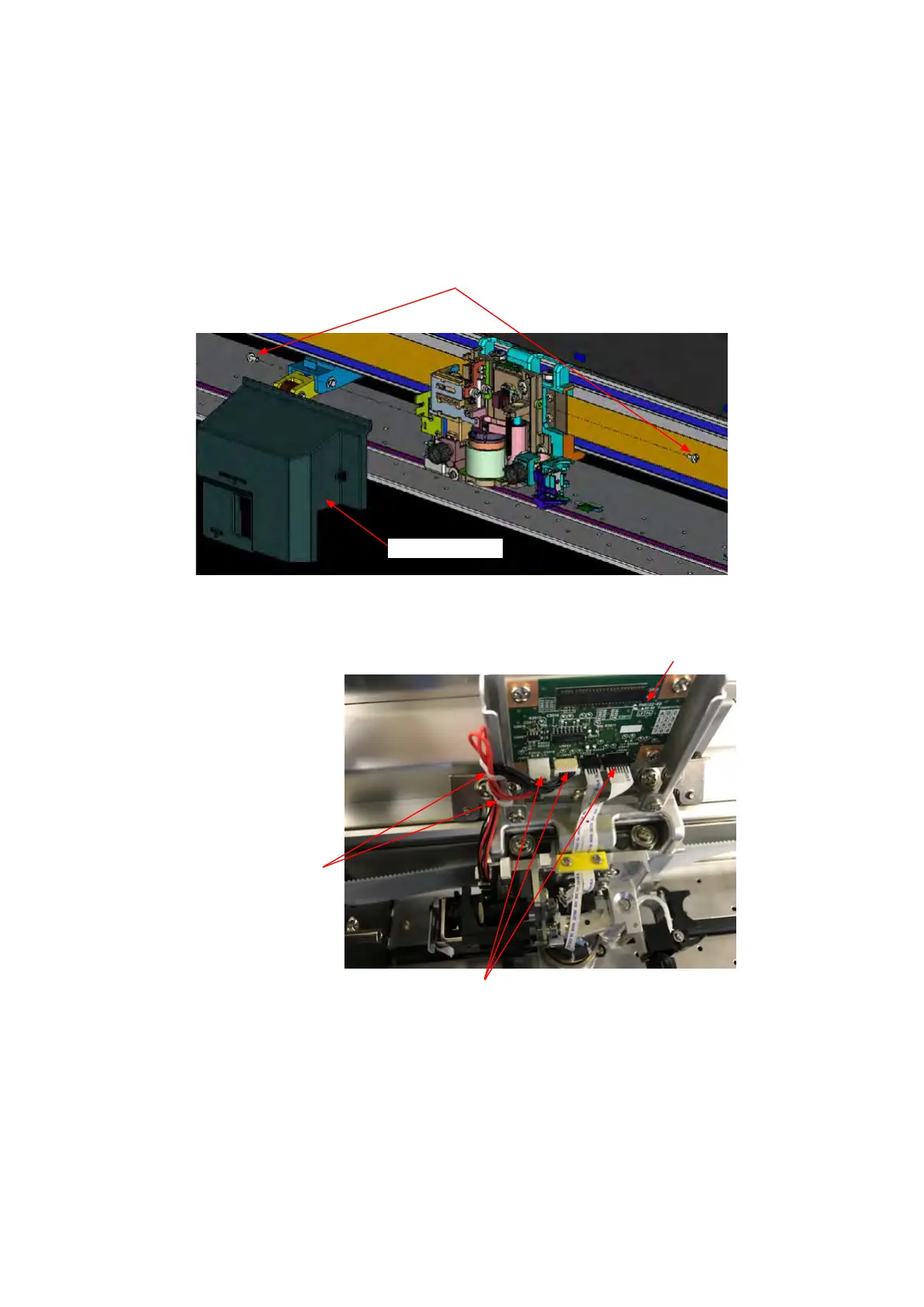

(4) Remove the two M3L6 binding head screws attaching the pen block cover.
M3L6 binding head screw
Pen block cover
(5) Detach the pen block cover.
(6) Disconnect the cables from connector J3009, J3004, and J3006 on the Y-relay board.
Disconnect these cables.
Remove the cable ties.
Pen board (Y relay board)
(7) Remove the cable ties holding the registration sensor cable and the solenoid cable.
