GRAPHTEC FC9000-75 - Replacing the Y-Motor

FC9000-UM-251-9370 7-26
7 DISASSEMBLY AND REASSEMBLY
7.2.11 Replacing the Y-motor
How to detach the Y-motor
(1) Detach the right side cover (Refer to subsection 7.1.1.).

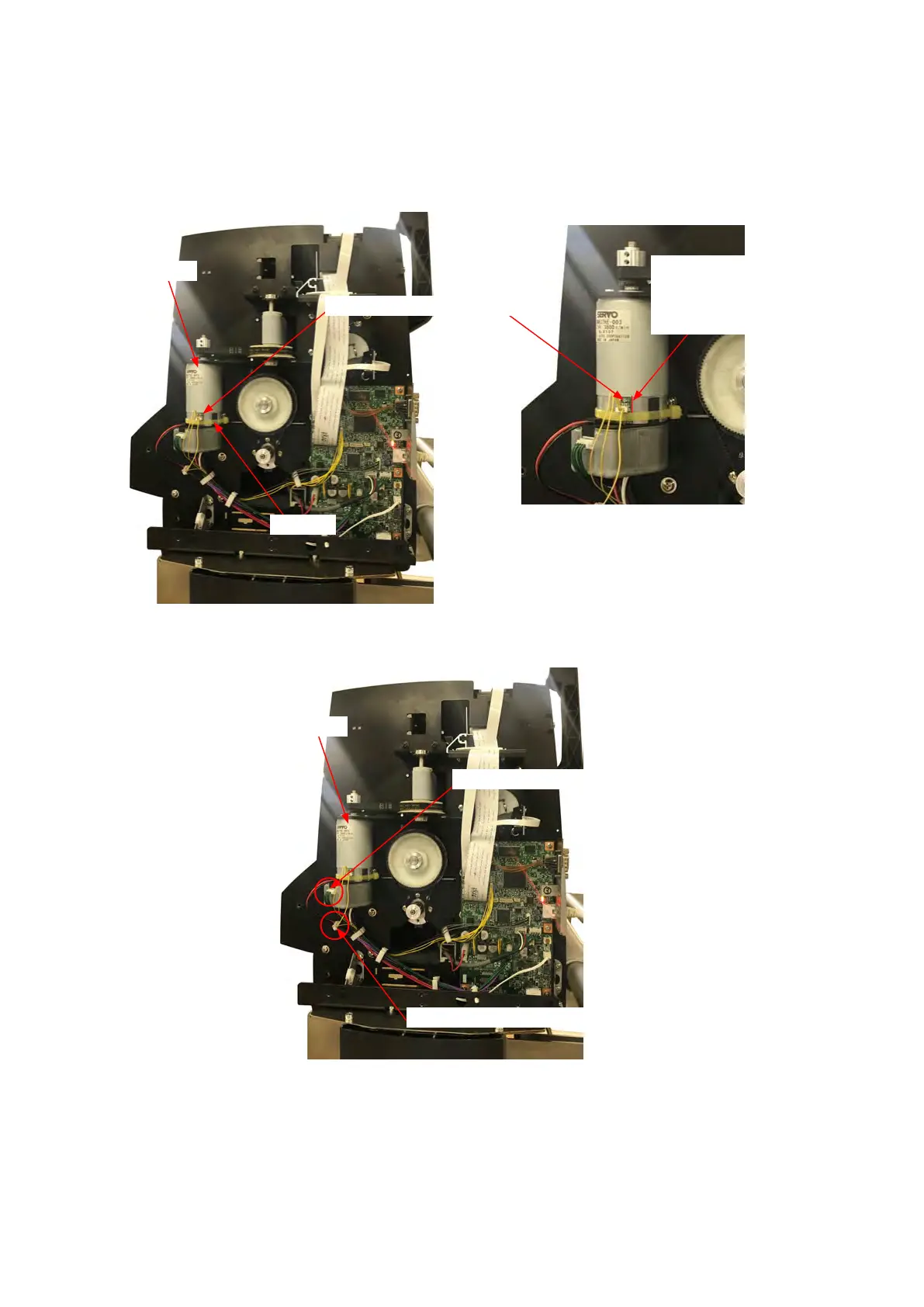

(2) Mark the position of temperature sensor board as shown in the picture below.
Y Motor
Mark the position of
temperature sensor
board.
Cable tie
Temperature sensor board
(3) Detach the temperature sensor board which is attaching by cable tie on the Y motor.
(4) Disconnect the Y-motor encoder cables from Y motor.
Y Motor
Y motor power relay connector
Y motor encoder connector
(5) Disconnect the Y-motor power cable from Y motor power relay cable connector.
