7 DISASSEMBLY AND REASSEMBLY
7.1.8 Replacing the Front Writing Panel Assembly

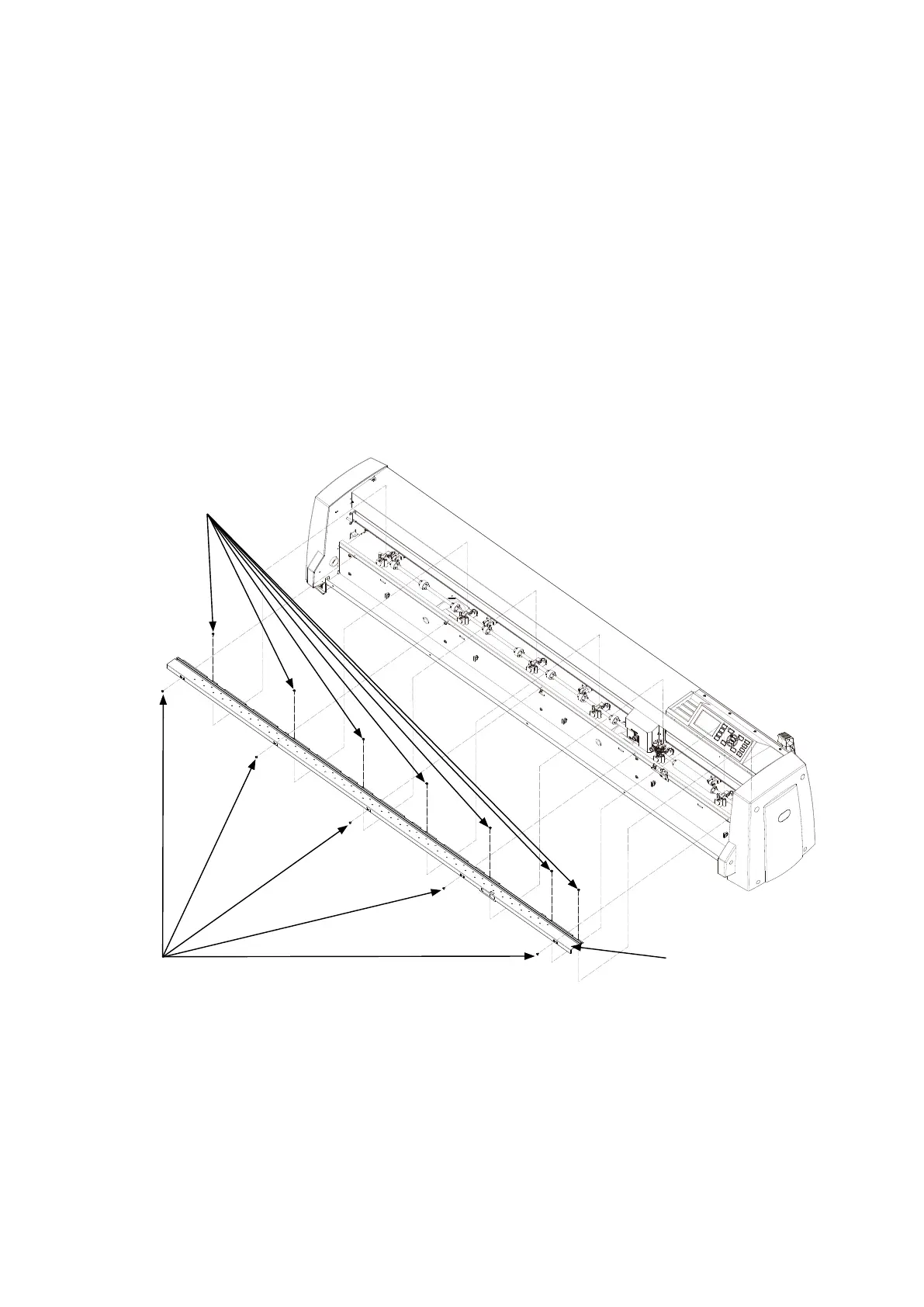

How to detach the front writing panel assembly
(1) Detach the front guide (Refer to subsection 7.1.5.).
(2) Detach the rear guide (Refer to subsection 7.1.6.).
(3) Detach the rear writing panel (Refer to subsection 7.1.7.).
(4) Remove the ten M3L6 binding head screws holding the front writing panel assembly for the FC9000-75.
(Remove the twelve M3L6 binding head screws holding the front writing panel assembly for the
FC9000-100.
Remove the fourteen M3L6 binding head screws holding the writing panel assembly for the FC9000-
140.
Remove the sixteen M3L6 binding head screws holding the front writing panel assembly for the
FC9000-160.)
(5) Detach the front writing panel assembly.
Front writing panel
M3L6 binding head screw
M3L6 binding head screw
How to reinstall the front writing panel assembly
(1) Reattach the front writing panel in the reverse order in which it was detached.
