GRAPHTEC FC9000-75 - Replacing the Cutting Mat

FC9000-UM-251-9370 7-12
7 DISASSEMBLY AND REASSEMBLY
7.1.12 Replacing the Cutting Mat
How to detach the cutting mat

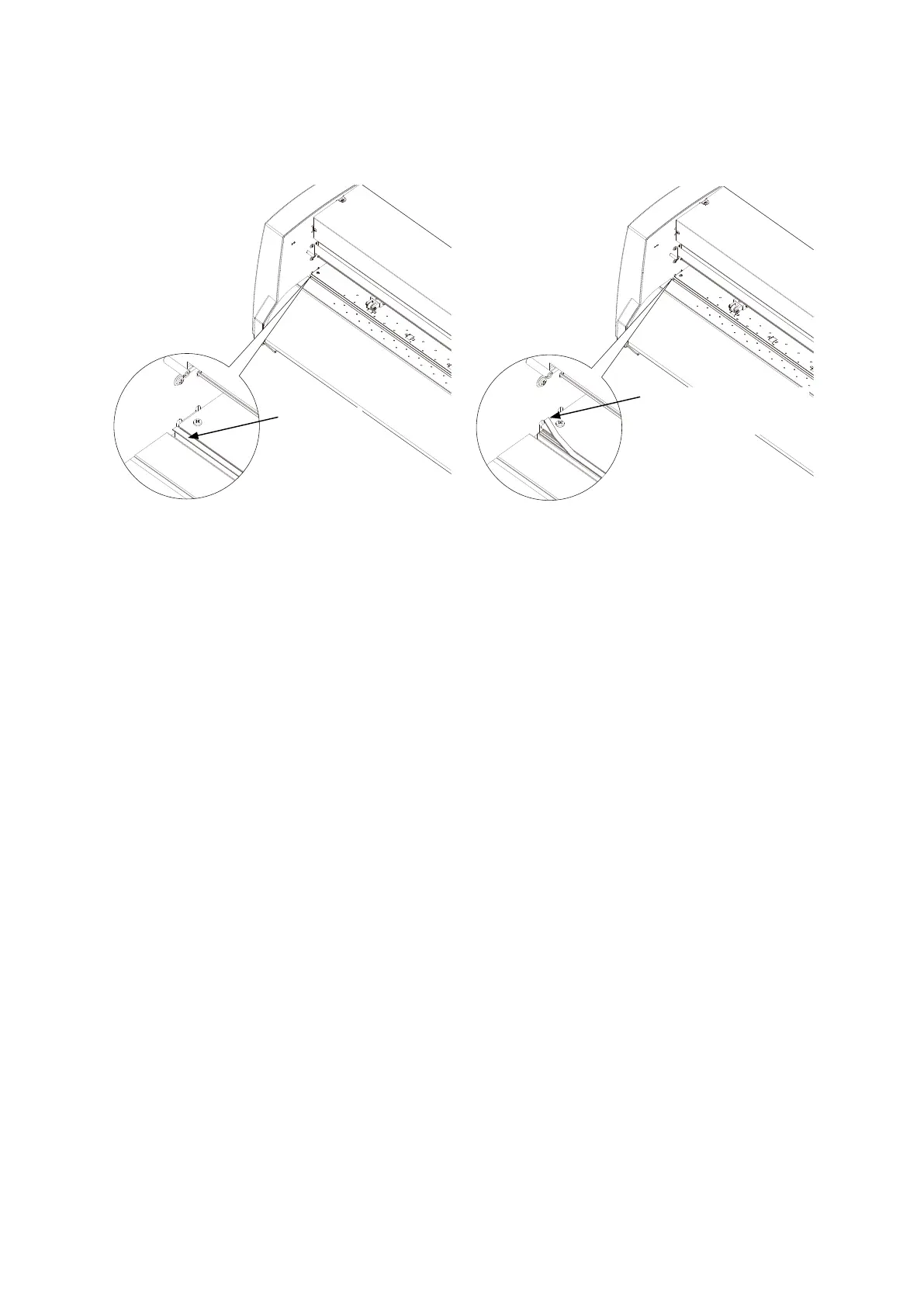

(1) Peel off the cutting mat from the left side of cutting mat base.
Cutting Mat
Peel off the cutting mat
from here.
How to reinstall the cutting mat
(1) Clean the cutting mat base.
(2) Put the cutting mat from the right side of cutting mat base.
