7 DISASSEMBLY AND REASSEMBLY
7.1.2 Replacing the Left Side Cover

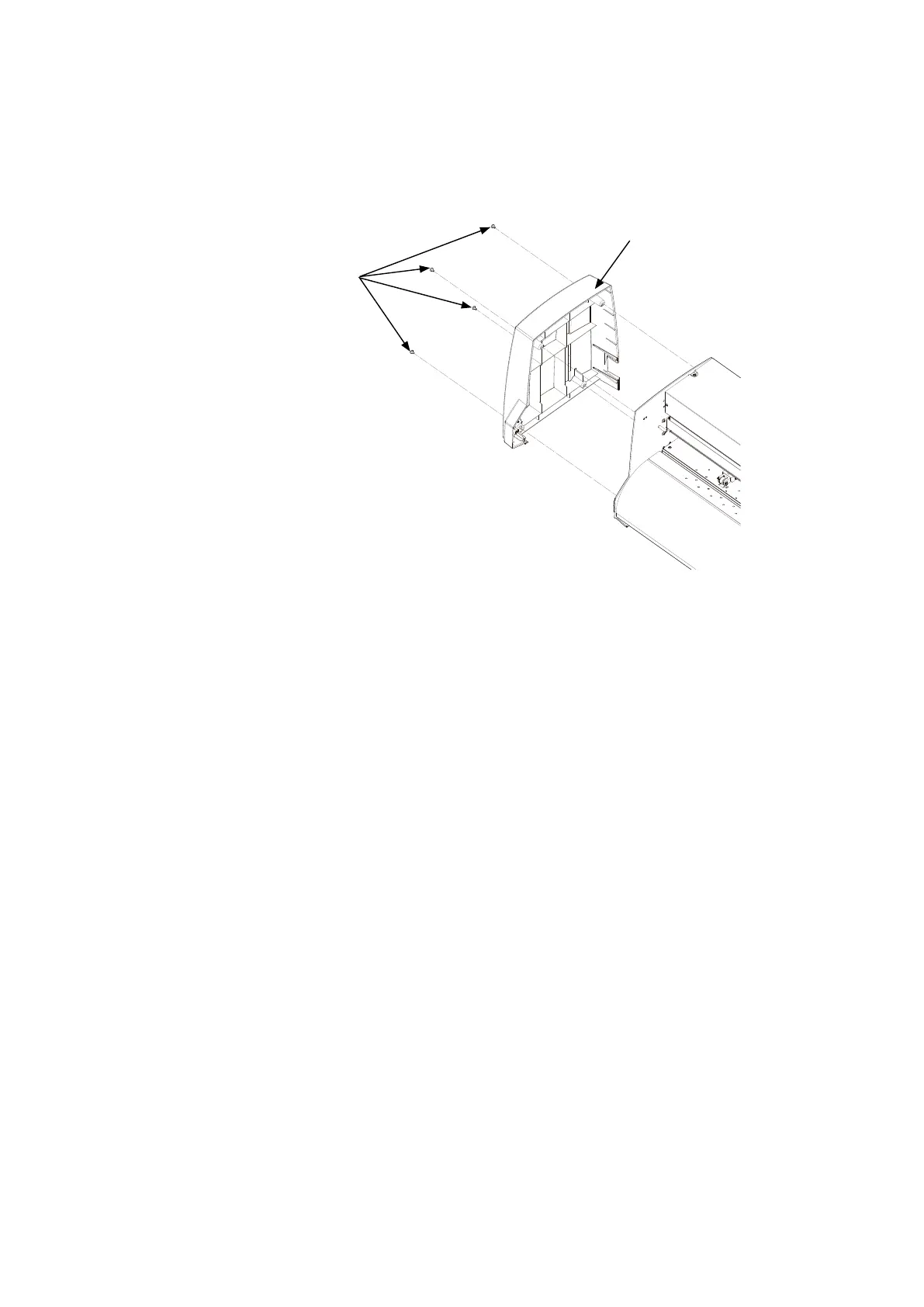

How to detach the left side cover
(1) Remove the four M4L6 binding head screws from the left side cover.
(2) Detach the left side cover.
M4L6 binding head screw
Left side cover
How to reinstall the left side cover
(1) Reattach the left cover in the reverse order in which it was detached.
