GRAPHTEC FC9000-75 - Optional Take up Roller (FC9000-140;160)

FC9000-UM-251-9370 10-15

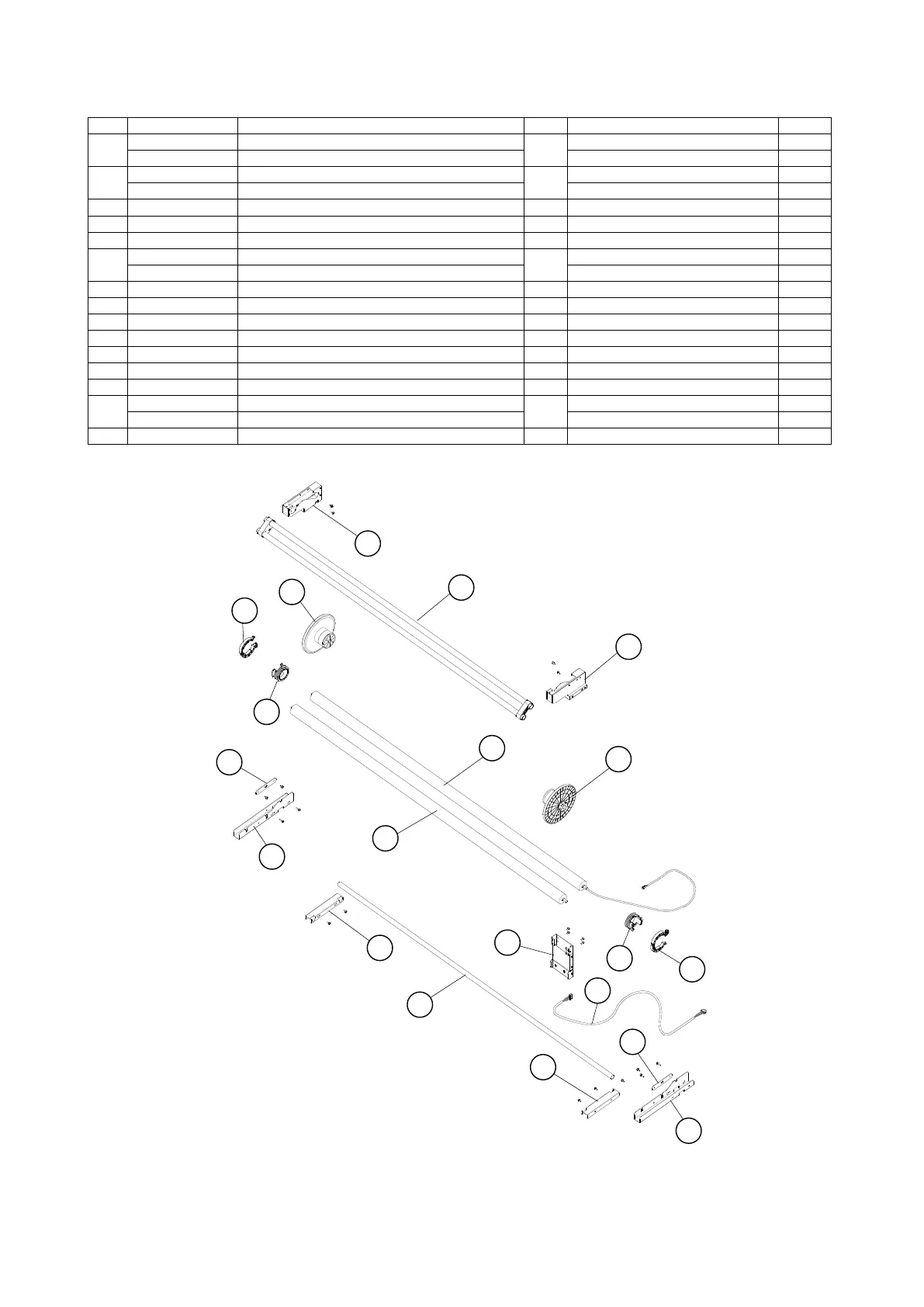

10 PARTS LIST
10.11 Optional Take up roller (FC9000-140/160)
No. Part No. Description Q’ty Remarks Rank
1
U621828180 Take Up Roller Motor Shaft 140
1
FC9000-140 A
U621838180 Take Up Roller Motor Shaft 160 FC9000-160 A
2
U621828190 Take Up Roller Free Shaft 140
1
FC9000-140 C
U621838190 Take Up Roller Free Shaft 160 FC9000-160 C
3 U792900830 Take Up Flange 2 C
4 U792900835 Guide Ring, Take UP Flange 2 621828340+621828100 C
5 U792900840 Stopper, Guide Ring 2 621828320+621828330+ C
6
U792900845 Take Up Guide 140
1
621828370x2+621828510x2 C
U792900850 Take Up Guide 160 621828370x2+621838510x2 C
7 U792900855 Right Media Guide Bracket 1 621828351+621828421 C
8 U792900860 Left Media Guide Bracket 1 621828361+621828431 C
9 U621828041 Plate, Take Up Roller Shaft Lock 2 C
10 U621828023 Right Take Up Bracket 1 C
11 U621828033 Left Take Up Bracket 1 C
12 U792900750 Take UP Media Sensor Assembly 1 A
13 U692180213 Cable, Take UP Media Sensor, CA512221C C
14
U621828520 Take Up Sensor Guard Pipe 140
1
C
U621838520 Take Up Sensor Guard Pipe 160 C
15 U621828382 Bracket, Take Up Sensor Guard Pipe 2 C
Optional Take up roller
2
3
4
3
3
4
4
5
6
7
8
9
11
12
13
14
15
15
10
9
5
1
2
