9 TROUBLESHOOTING
9.7.3 Printing the Test Pattern
Print a self-test pattern to check the operation of the plotter.
Operation
(1) Set a paper larger than A3 size.
(2) Set the pen tool to the tool carriage and select the condition where the pen tool is set.

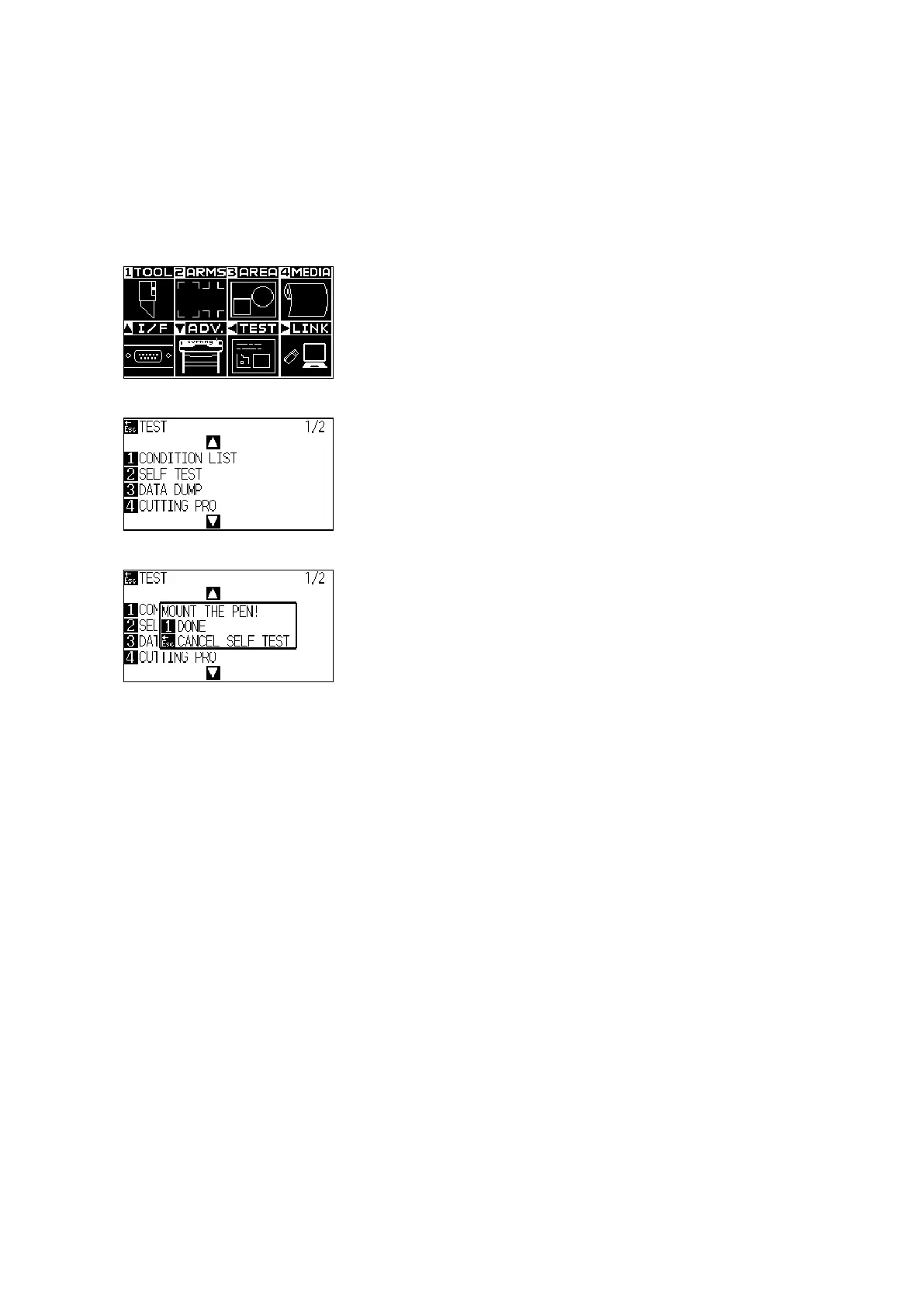

(3) Press the PAUSE/MENU key to display the menu below.
(4) Press the Left position (
t
) key (TEST) to display the menu below.
(5) Press the F2 key (SELF TEST) to display the menu below.
(6) Conrm that the pen tool is set.
(7) Press the F1 key (DONE) to print the test pattern.
(8) Turn the power off to stop the printing.
