8.18 Adjusting the 2nd Pen Exchange position
This adjustment will set the 2nd pen exchange position.
Perform this procedure if adjustment values could not copy from the SUB-NVRAM when replacing the main
board which main board adjusted for the 2nd pen option.
When the main board was replaced or the 2nd Pen option was installed, perform this adjustment.
8.18.1 Inputting the 2nd Pen Exchange position from the recorded value
How to input the 2nd Pen Exchange position
(1) Turn on the power while pressing the SLOW and the ENTER keys.

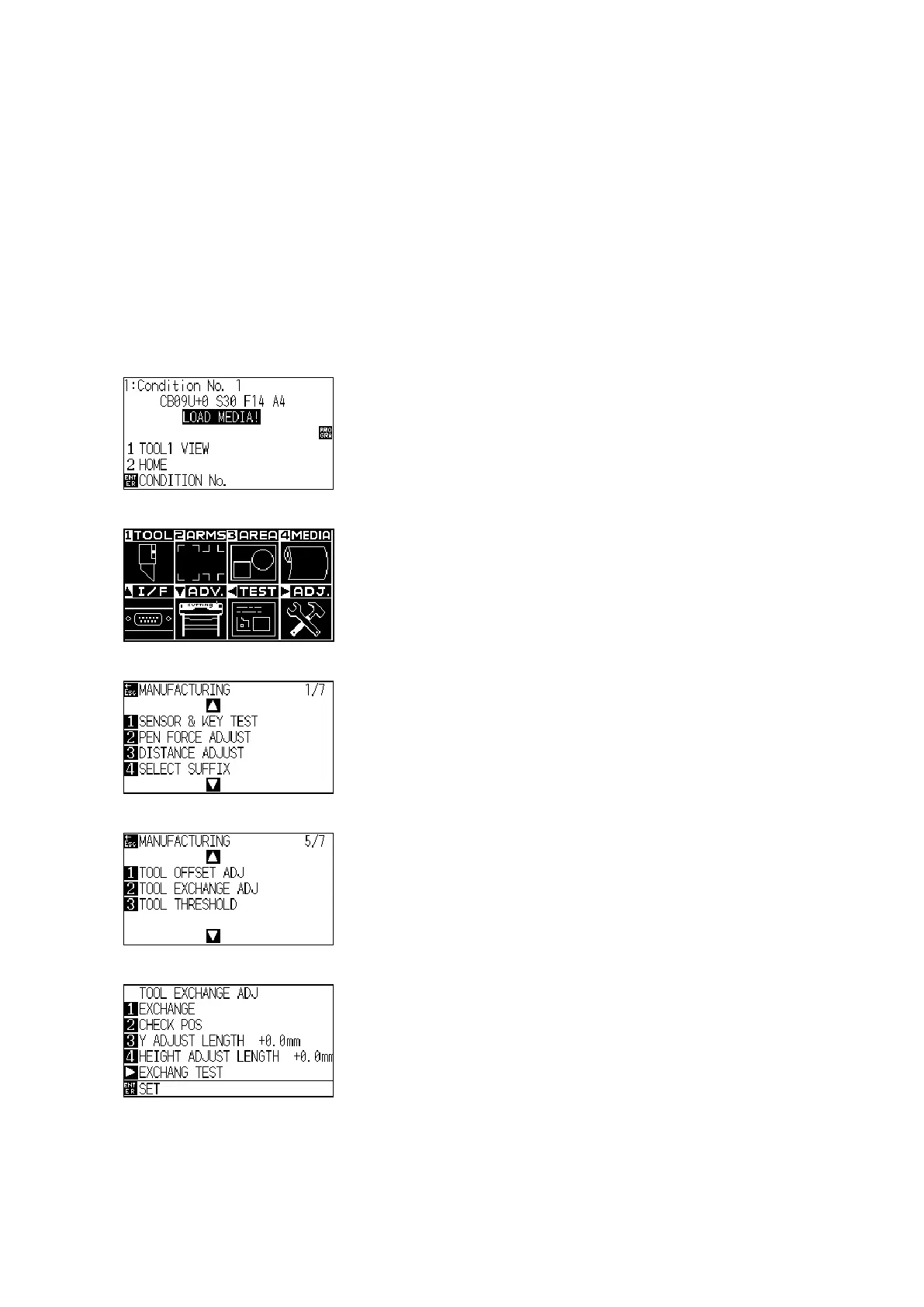

(2) The plotter displays the following menu.
(3) Press the PAUSE/MENU key to display the following menu.
(4) Press the Right position key to display the following menu.
(5) Press the Down position key until the following menu is displayed.
(6) Press the F2 key to display the following menu.
