GRAPHTEC FC9000-75 - Details of Basket Base Bracket

FC9000-UM-251-9370 10-14
10 PARTS LIST
10.10 Details of Basket Base Bracket
No. Part No. Description Q’ty Remarks Rank
1 U621801771 Side Pipe, Basket 4
2 U334506301 Plastic Washer, CC-0610-25 8
3 U621801930 Shaft, Side Pipe, Basket 12
4 E-ring C4 24
5 U621801211 Bracket, Side Pipe, Basket 4
Flange Cap Screw M5L10 8

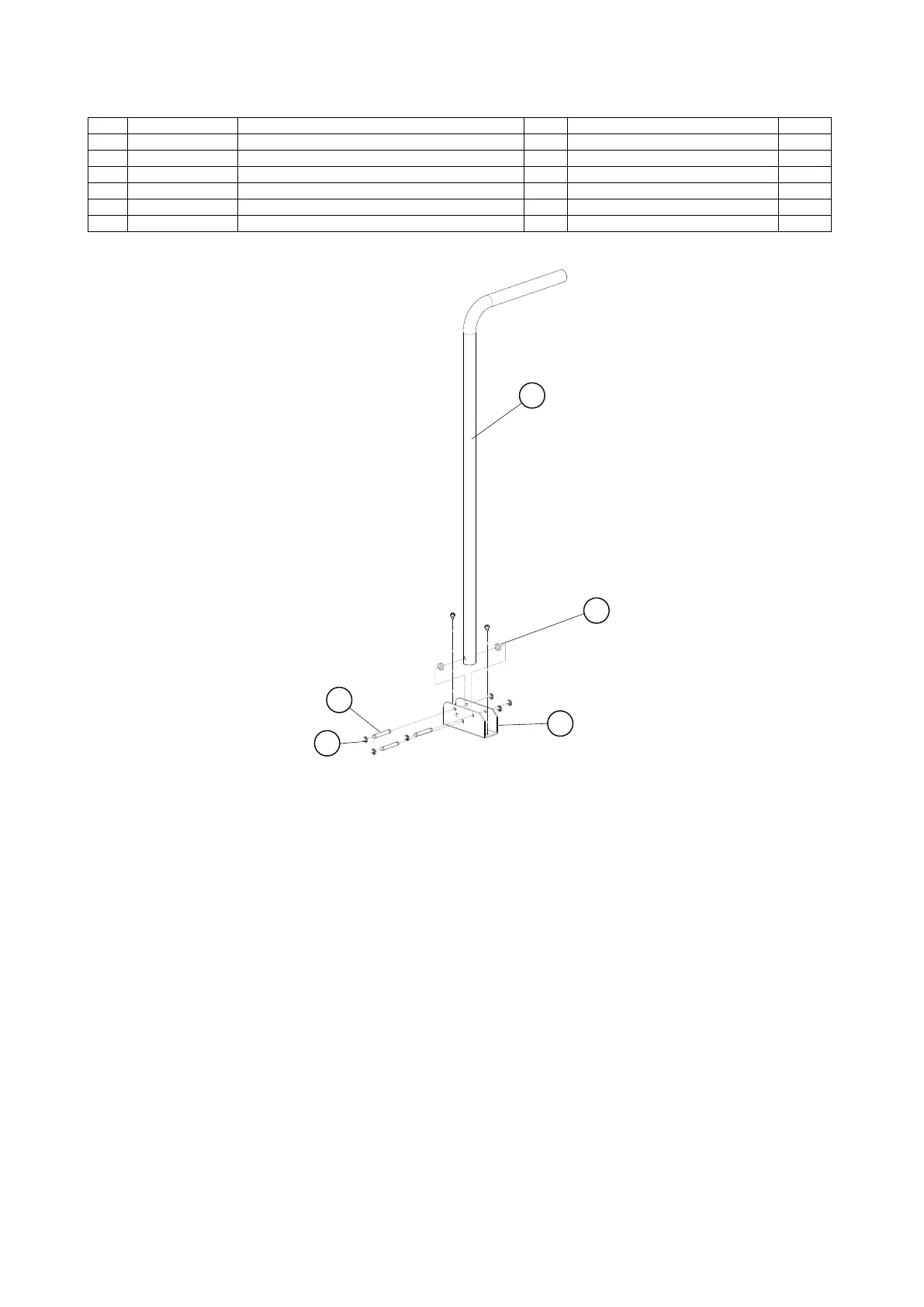

Details of Basket Base Bracket
3
4
5
1
2
