FC9000-UM-251-9370 8-41
8 Electrical Adjustment

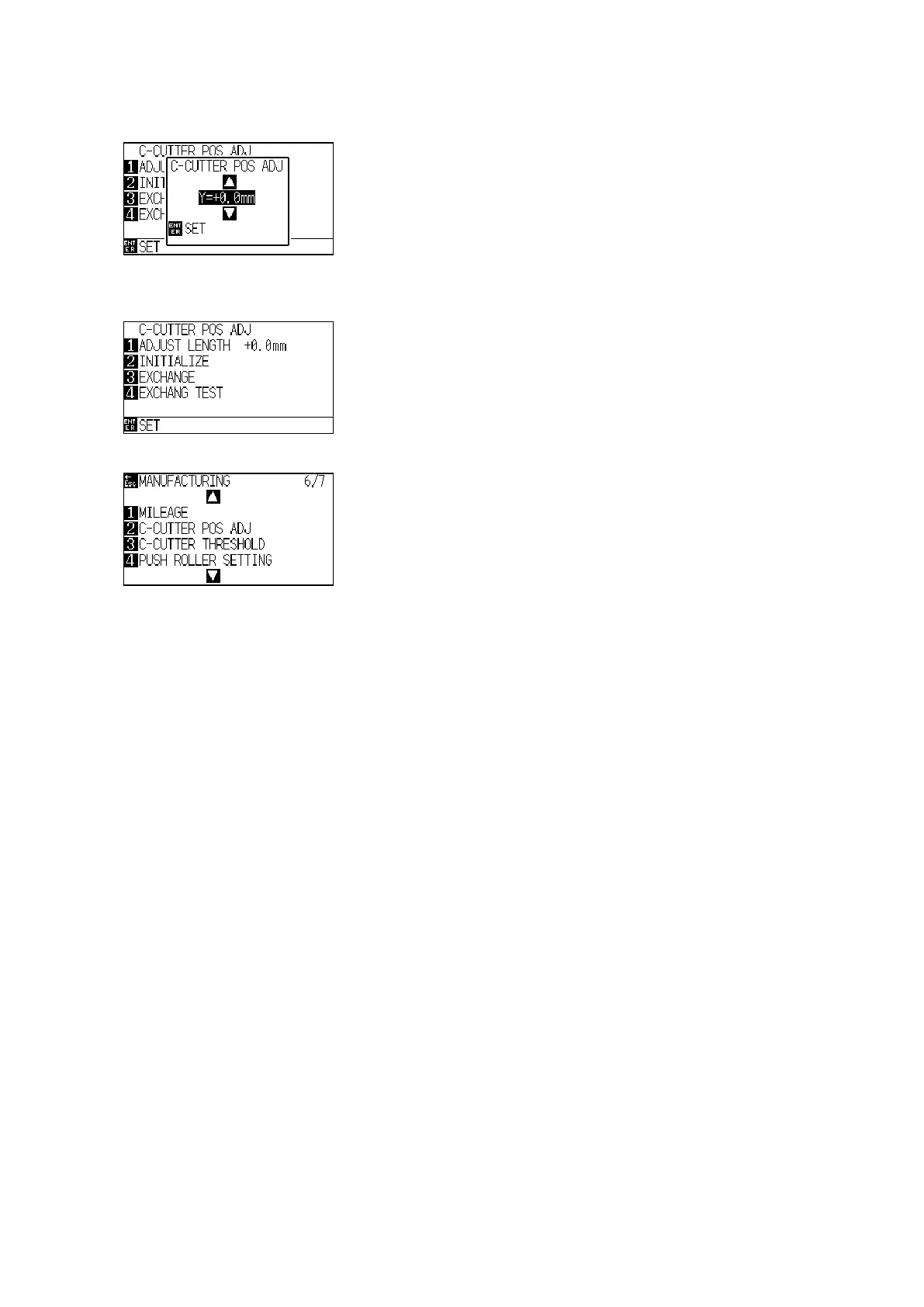

(7) Press the F1 key to display the following menu.
The pen block moves to the left side of the cross cutter home position.
(8) Input the cross cutter home adjustment value from the recorded value of cross cutter home.
(9) Press the ENTER key to display the following menu.
(10) Press the ENTER key to display the following menu.
(11) Turn off the power to exit from the adjustment menu. (When other adjustment is going to perform
continuously it does not need to turn off the power.)
