GRAPHTEC FC9000-75 - Page 133

FC9000-UM-251-9370 8-43
8 Electrical Adjustment

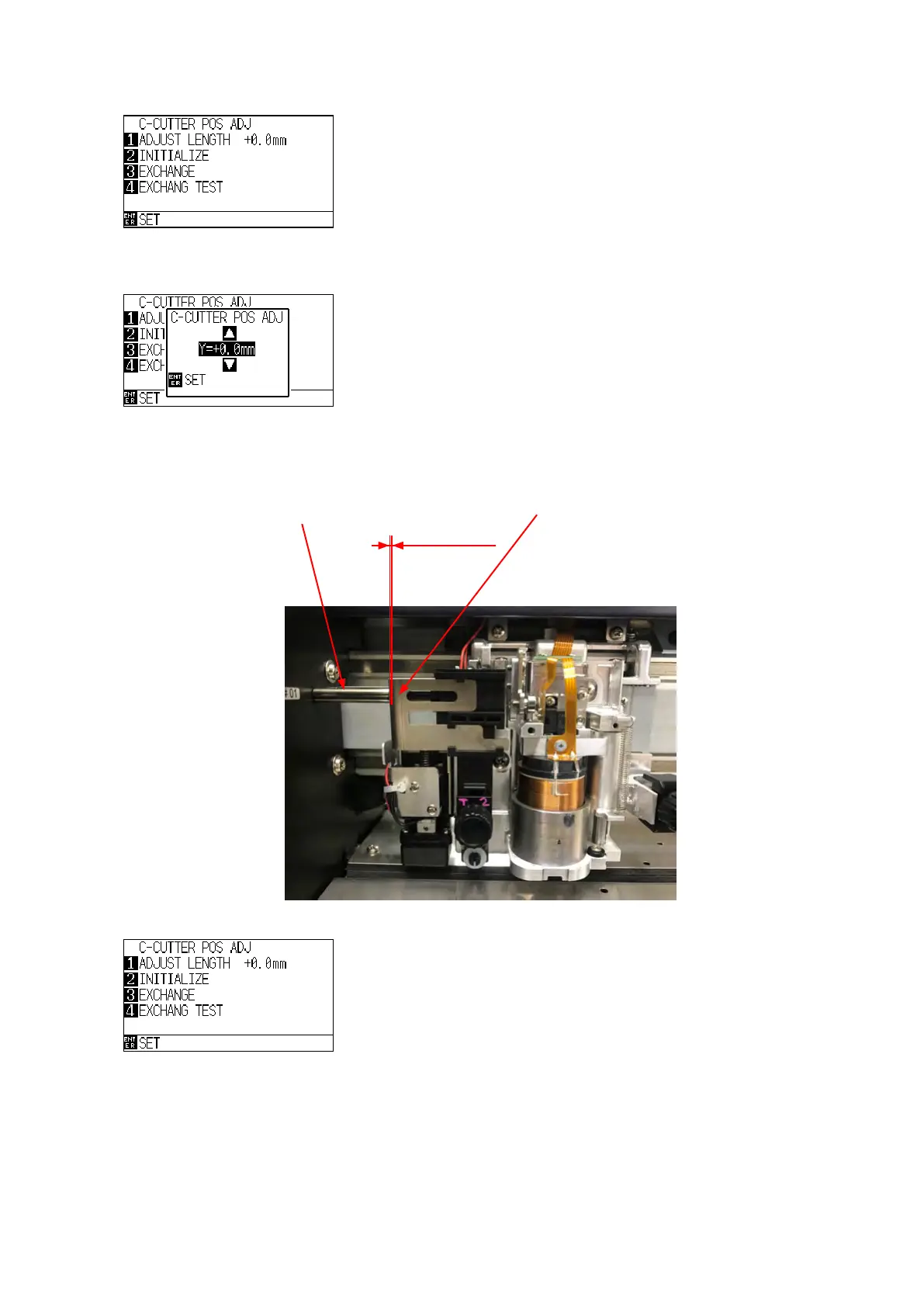

(8) Press the F2 key to display the following menu.
(9) Press the F1 key to display the following menu.
The pen block moves to the left side of the cross cutter home position.
(10) Conrmthegapbetweenthecrosscutterdogandthecrosscutterreleaseplate.
(11) Adjust the gap to a value in the range of 0.6 mm to 1.0 mm.
Press the UP or DOWN position key to adjust the gap.
Cross cutter dog
Cross cutter release plate
0.6 to 1.0 mm
(12) Press the ENTER key to display the following menu.
(13) PresstheF4keytotestandconrmthegap.
If the cross cutter dog presses on the cutter release plate too much, a position alarm error will be
displayed.
At this time reduce the adjustment value.
