FC9000-UM-251-9370 7-37
7 DISASSEMBLY AND REASSEMBLY
How to reinstall the Y Flexible cable
(1) Fold the Y relay board side of Y exible cable at same position with the removed Y exible cable.
(2) Move the pen block to the left end.

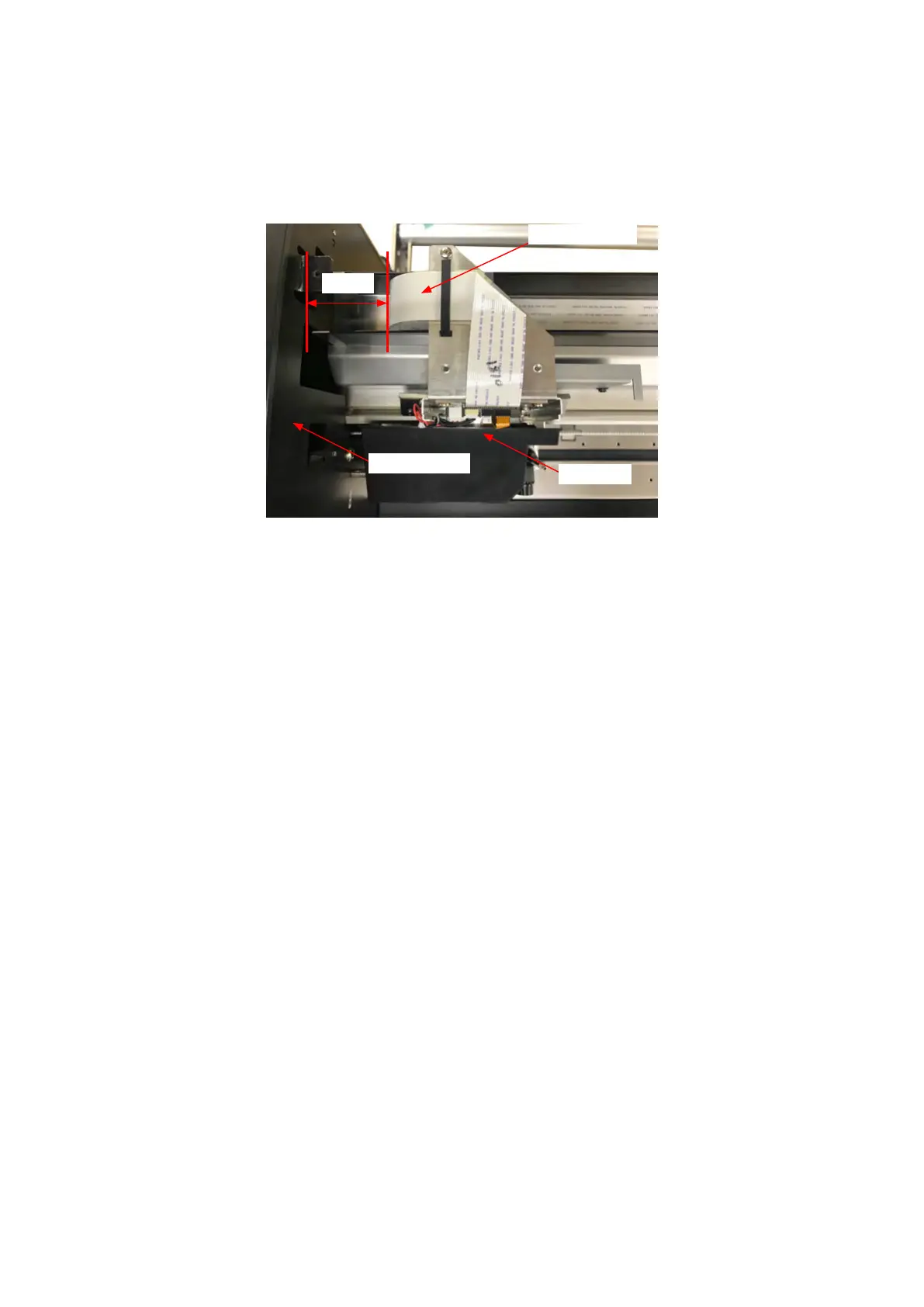

(3) Fit the Y-exible cable into the Y-rail as shown below. The Y-exible cable shouldn’t touch the left side
plate. Allow a 25 mm space between the left end of the Y-exible cable and the left side.
Pen block
Left side plate
Y exible cable
25 mm
(4) Secure the Y-exible cable onto the exible cable guide of the Y-rail using double-sided adhesive tape.
(5) Reattach the other parts in the reverse order in which they were detached.
(6) Conrm the wiring for Y exible cable (Refer to subsection 7.4.).
