Grizzly G1026 User Manual

-18-
Model G1026 (Mfd. Since 10/13)

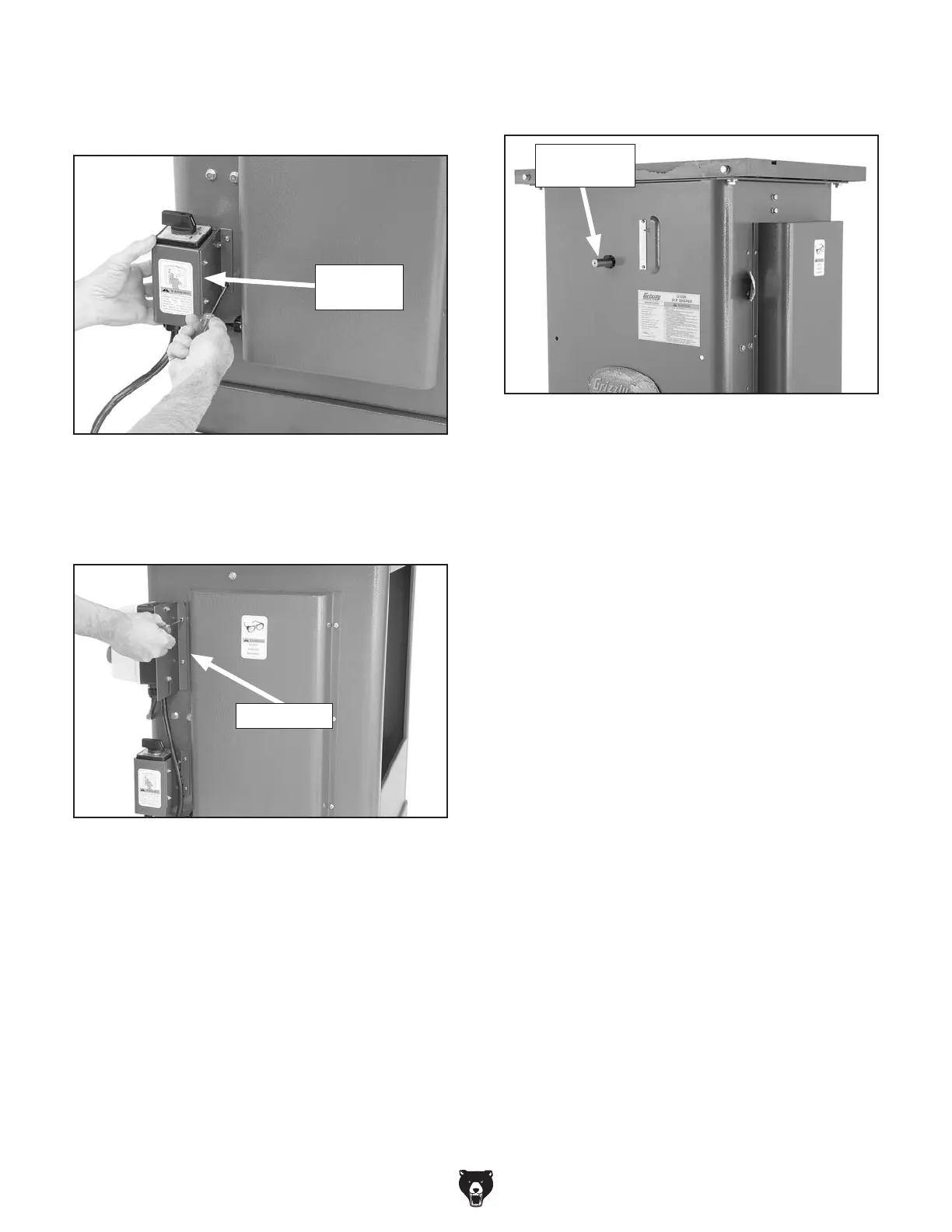

7. Mount the FOR/REV switch to the cabinet, as
shown in Figure 11, using the screws already
mounted in the cabinet at that location.
Figure 11. Securing FOR/REV switch to cabinet.
8. Mount the magnetic switch to the cabinet, as
shown in Figure 12, using the screws already
mounted in the cabinet at that location.
Figure 12. Securing mag switch to cabinet.
9. Slide the handwheel onto the handwheel
shaft shown in Figure 13.
Figure 13. Location of handwheel shaft.
Handwheel
Shaft
10. Tighten the handwheel set screw against the
flat part of the handwheel shaft.
11.
Thread the handle into the handwheel, and
tighten the hex nut on the handle against the
handwheel.
FOR/REV
Switch
Mag Switch
