-22-
Model G1026 (Mfd. Since 10/13)
— If the wing is slightly tilted up or down,
place some masking tape along the whole
length, between the table and the wing.
Place the tape above the bolts to lower the
wing (see Figure 21) or below the bolts
(see Figure 22) to raise it.
10.
Following adjustments, tighten the hex bolts
in the sequence they were installed.

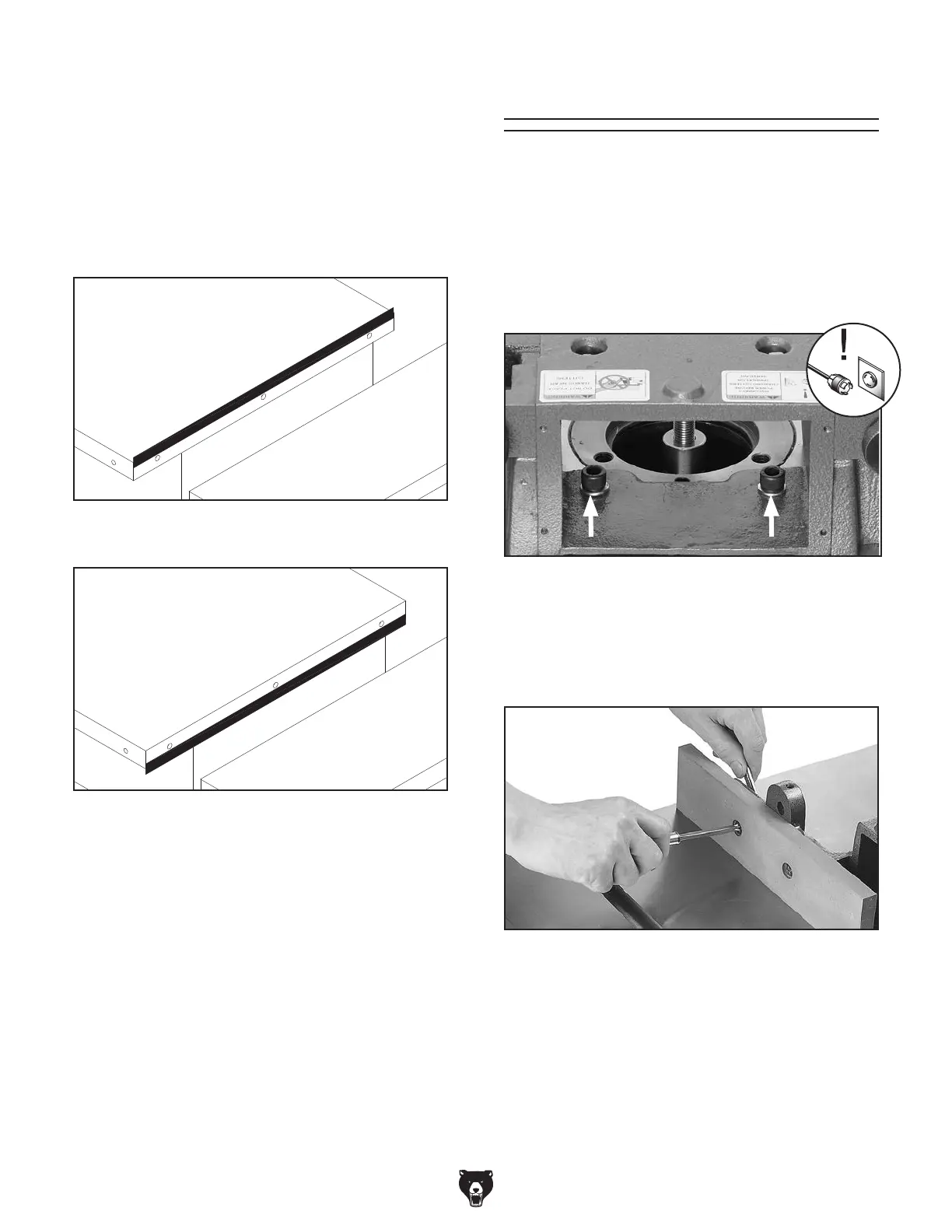

Figure 22. Masking tape location for raising
wing.
Figure 21. Masking tape location for lowering
wing.
8.
Inspect your results with a good-quality
straightedge.
To install the fence assembly:
1.
KEEP SHAPER DISCONNECTED FROM
POWER!
2.
Attach the fence assembly to the table, as
shown in Figure 23, with the cap screws and
lock washers already mounted to the table.
Figure 23. Fence assembly attachment location.
3. Secure the wooden fence pieces with the
(4)
5
⁄16"-18 x 1
1
/2" flat head screws, flat wash-
ers and hex nuts provided, as shown in
Figure 24.
Figure 24. Attaching wooden fence assembly.
Fence Assembly
