Grizzly G1026 User Manual

-24-
Model G1026 (Mfd. Since 10/13)

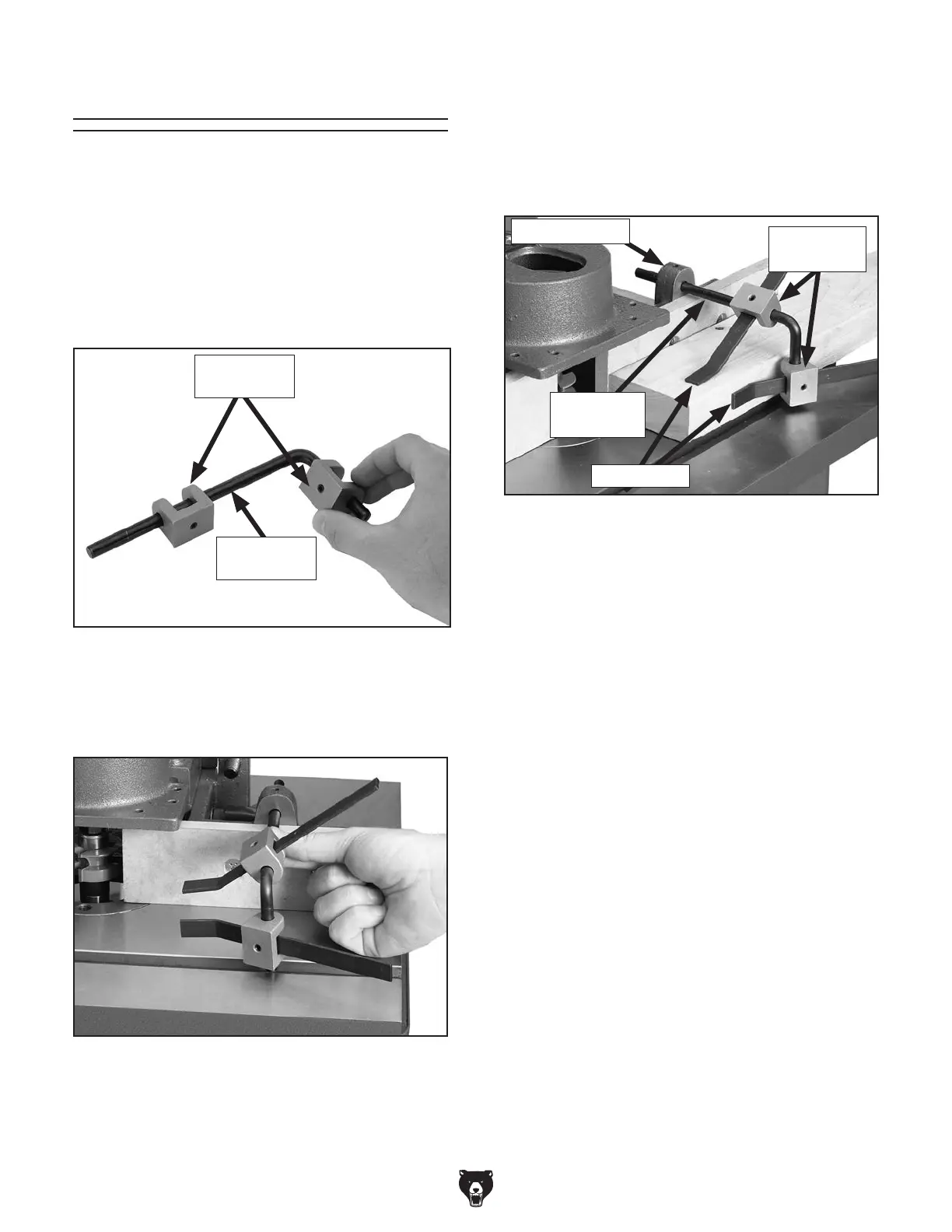

Hold-downs are used to hold the workpiece flat on
the table and snug against the fence as shown in
Figure 28.
To assemble the hold-downs:
1.
Slide two hold-down brackets onto each of
the hold-down bars (one on the short arm,
one on the long arm), as shown in Figure 26.
Figure 26. Brackets on hold-down bar.
Hold-Down
Bar
Hold-Down
Brackets
2. Slide the long arm of the hold-down bars
through the holes in the cast iron fence brack-
ets, as shown in Figure 27.
3. Partially screw the
5
⁄16"-18 x
3
⁄8" set screws
into the hold-down brackets.
4. Slide each hold-down between a hold down
bracket and hold down bar, as shown in
FIgure 28.
Figure 27. Inserting hold-down bar into fence
bracket.
Figure 28. Using hold-downs on both sides.
Hold-Downs
5. Position the hold-downs according to the size
of your workpiece.
6. Tighten the set screws in the fence brackets
and the hold-down brackets to fix the position
of the hold-downs.
Note: Remove the hold-down assembly when
not in use.
Hold-Downs
Hold-Down
Brackets
Fence Bracket
Hold-Down
Bar
