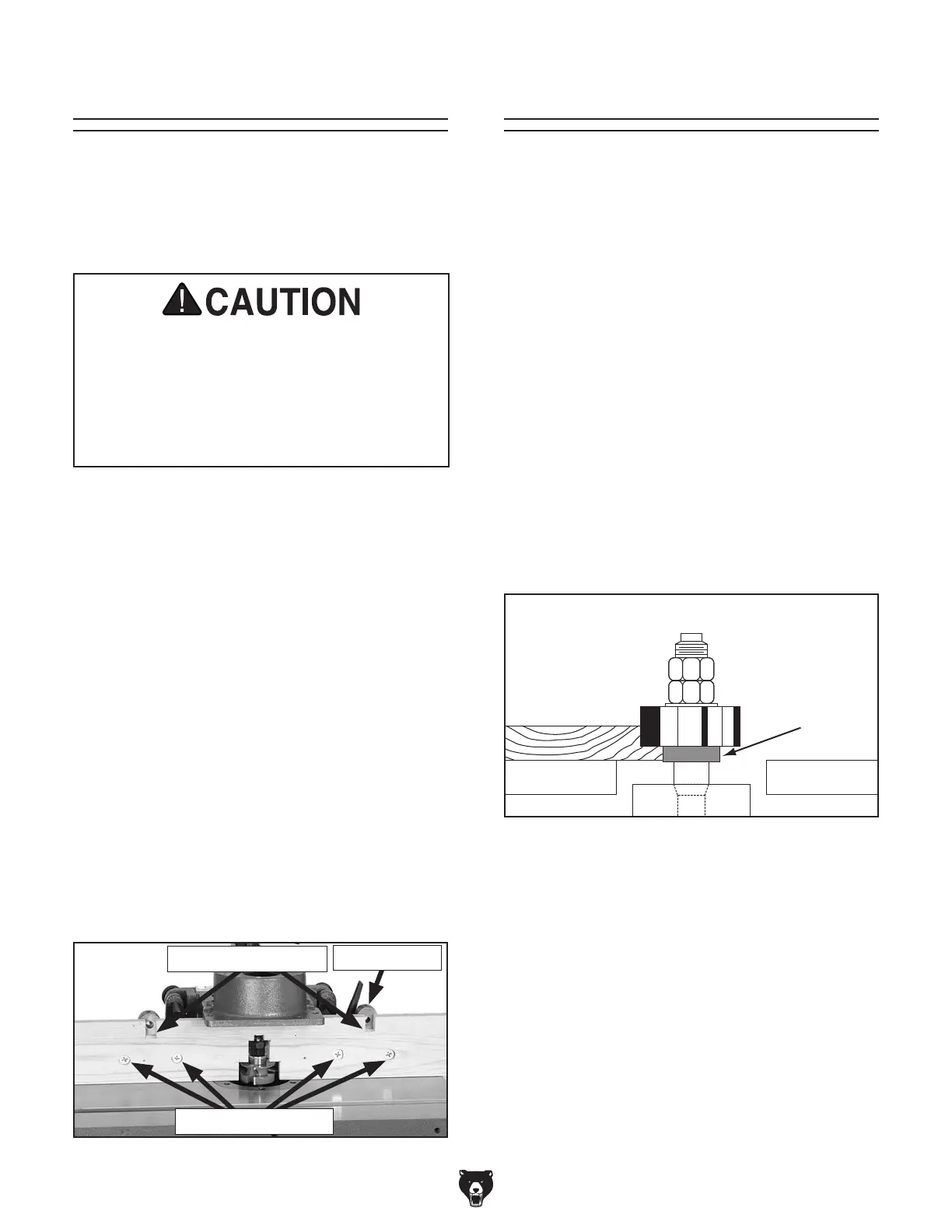

-34-
Model G1026 (Mfd. Since 10/13)
Shaping small stock is inherently dangerous on a
shaper. Consider making a zero-clearance fence
(see Figure 45) to provide more support than a
standard fence and reduce tearout on narrow or
fragile stock.
Rub collars are used when shaping curved or
irregular workpieces, such as arched doors or
round table tops, and to limit the depth of your cut.
There are two types of rub collars—solid and ball-
bearing. We recommend using ball bearing collars
and we carry an extensive line that is designed for
use with Grizzly shapers. See our current catalog
or website for listings.
Rub collars may be used in any of the follow-
ing positions:
1. Rub collar below the cutter: When the rub
collar is placed below the cutter, as shown
in Figure 46, the progress of the cut can be
observed. However, any unintentional move-
ment may lift the workpiece into the cutter,
damaging your work and creating a danger-
ous situation. We DO NOT recommend using
the rub collar in this position.
Figure 46. Cutting with rub collar below cutter.
To make a zero-clearance fence:
1.
DISCONNECT MACHINE FROM POWER!
2. Remove the wood facing and fasteners on
the fences.
3. Place a 1 x 4 over the fence mounts and
mark and drill four holes for securing the
board to the mounts.
4. Transpose an outline of the spindle, cutter,
and its components onto the board, leaving
room for moving parts so they will not hit the
board.
5.
Using a bandsaw, cut out the outline.
6. Cut notches in top of board for attaching hold-
downs (see Figure 45), secure it to the fence
mounts with the fasteners removed in Step 2.
Rub Collars
Always use hold-downs or featherboards
when shaping small or narrow stock. These
devices will keep your hands away from the
spinning cutterhead and support stock suf-
ficiently to allow a safe and effective cut.
Failure to follow this warning may lead to
severe personal injury.
Figure 45. Example of a zero-clearance fence.
Hold Down Notches
Holes for Fasteners
Fence Mount
Shaping Small Stock
