6. Remove the spindle and replace the bear-
ings inside the bearing housing. If you need
pointers regarding bearing replacement, call
Technical Support.
7.
To slide the housing back in, reverse the pro-
cedure. Make sure the hex bolt is tightened
securely.
8.
Re-install the rear cover.
4. To tension the V-belt, slide the motor to
the left until the V-belt is snug, then tighten
the bolts. The amount of V-belt deflection
between the pulleys should be approximately
1
⁄4" when moderate pressure is applied, as
shown in Figure 67.
5.
When the V-belt is adjusted properly, tighten
the motor mount hex bolts.
6.
Check to make sure the V-belt is correctly
aligned on both pulleys (refer to Pulley
Alignment on Page 48 for detailed instruc-
tions).
7.
Re-install the rear cover.
Pulley
Deflection
Pulley

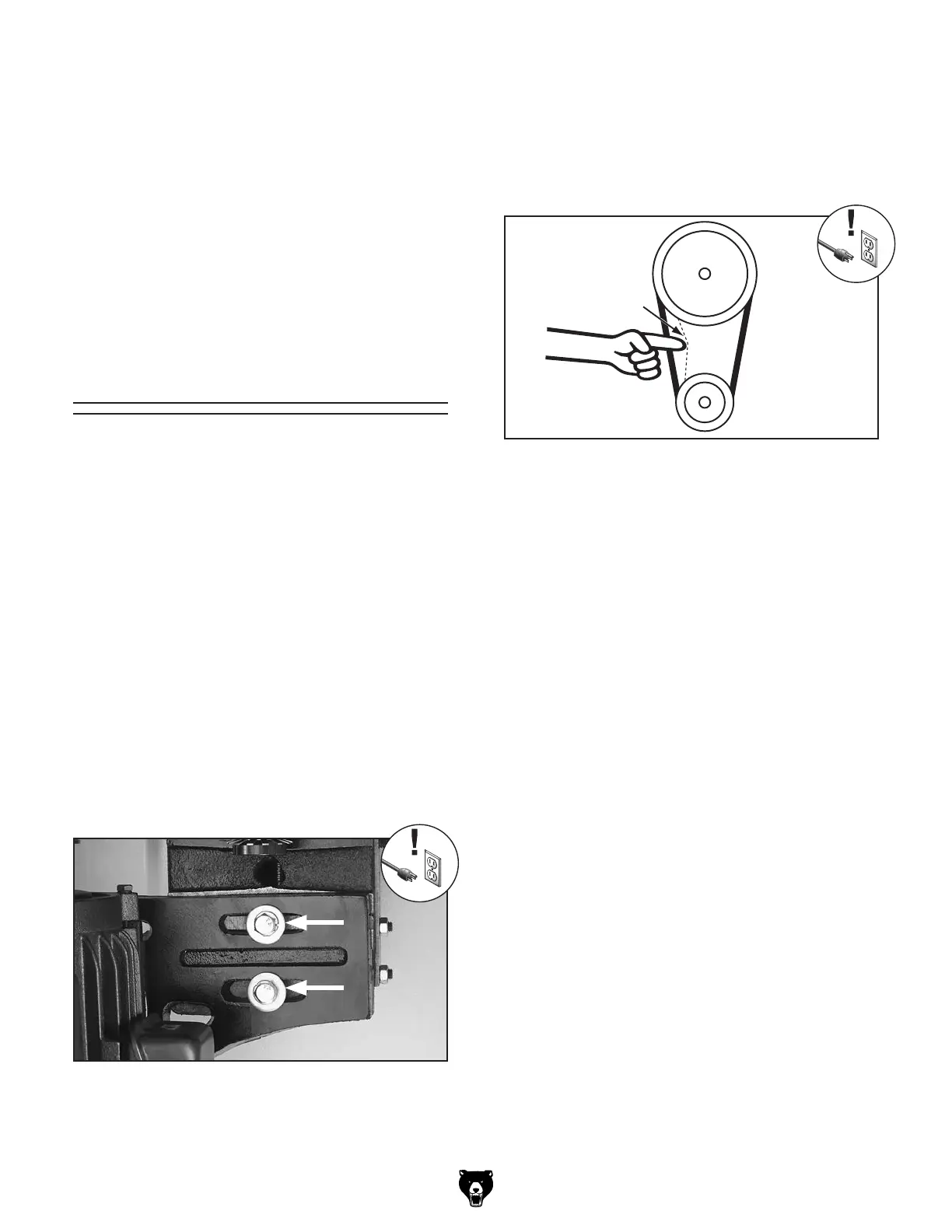

Figure 67. Checking V-belt tension.
1
⁄4"
V-Belt Tension &
Replacement
The V-belt transfers power from the motor to the
spindle. If the V-belt does not have the proper
tension or is damaged in any way, the shaper will
not operate optimally, and unnecessary wear on
the moving parts will occur. Regularly check the
V-belt tension and replace it when necessary.
Tools Needed Qty
Open-End Wrench or Socket 19mm ................. 1
To tension the V-belt:
1.
DISCONNECT MACHINE FROM POWER!
2. Remove the rear cover.
3. Loosen the two hex bolts holding the motor
mount to the spindle slide (see Figure 66).
Do not remove the bolts completely.
Figure 66. Location of motor mount hex bolts.
— If the V-belt is cracked, excessively worn,
or damaged, slide the motor to the right,
then replace the V-belt.
