Model G1026 (Mfd. Since 10/13)
-23-
Lock
Handle
Top
Guard
Front
Guard
Knob
Bolt
(1 of 2)
Main
Guard
Extension
Bracket
Shaft
Shaft
Mount
Set Screw
Lock
Knob
Extension
Bar

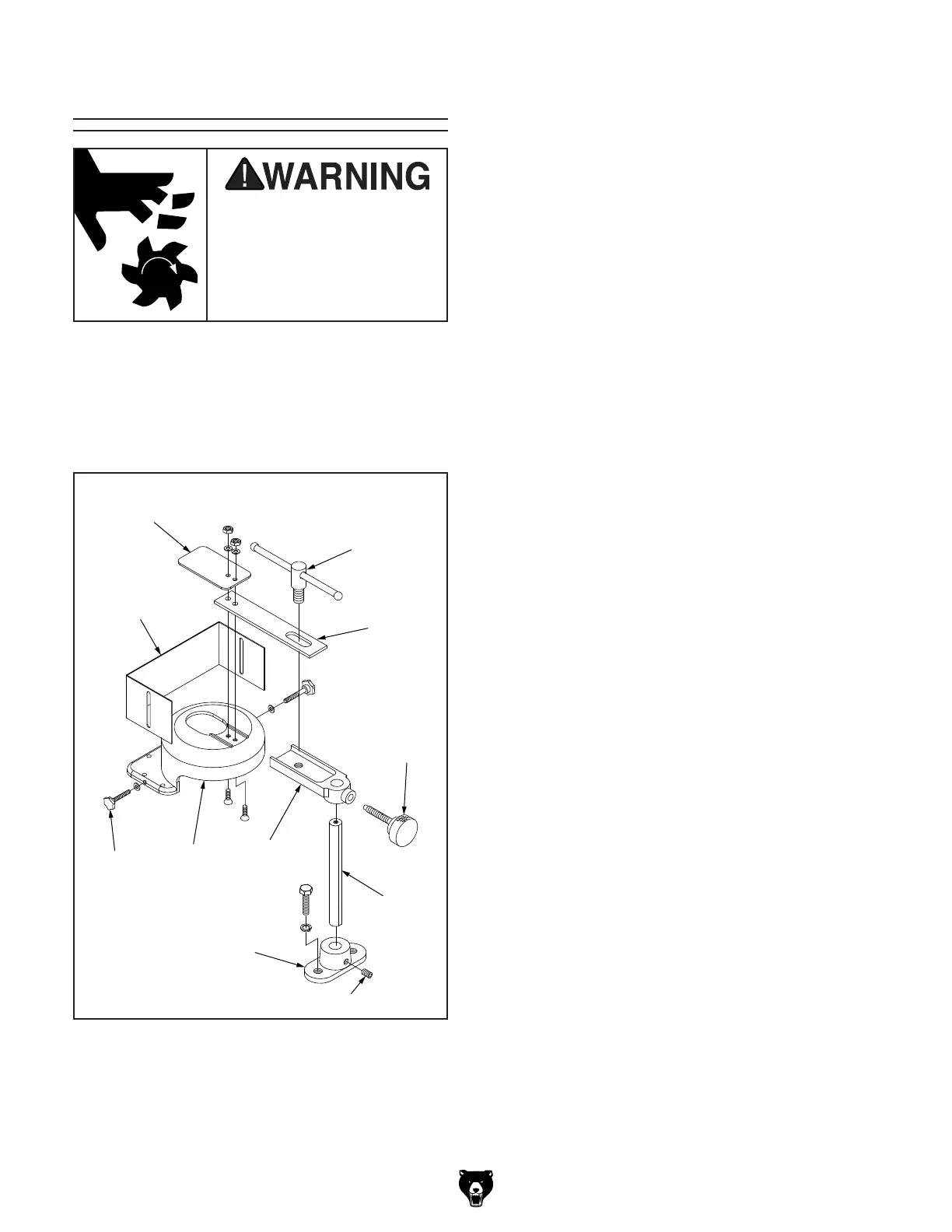

Figure 25. Safety guard assembly.
All safety guards MUST be
installed on your shaper
before operating it. Shapers
can quickly cause serious
injury if some kind of cutter
safety guard is not used.
To assemble and attach the safety guard:
1.
Attach the shaft mount bracket (see Figure 25)
to the back of the table with the (2) pre-
installed hex bolts and lock washers.
2.
Insert the shaft into the bracket so the flat
surface faces toward the rear, then secure it
with the set screw.
3.
Slide the extension bracket onto the shaft
and secure with the lock knob.
4.
Sandwich the extension bar between the top
safety guard and the cutterhead guard, then
secure the components with (2)
1
⁄4"-20 x 1"
flat head screws, (2)
1
⁄4" flat washers, and (2)
1
⁄4"-20 hex nuts, as illustrated in Figure 25.
5.
Attach the front safety guard to the sides
of the cutterhead guard with (2)
1
⁄4"-20 x
1
⁄2"
knob bolts and (2)
1
⁄4" flat washers.
6.
Secure the extension bar to the extension
bracket with the lock handle to finish the
assembly.
IMPORTANT: During operation, raise or lower
the front safety guard so that it is as close to
the workpiece as possible without interfering
with workpiece travel past the cutter.
Always use the included safety guard or
some type of guard when performing shaping
operations.
Safety Guard
To Next Page
