5. To lock the axle, push the enclosed
metal pin (25) sideways into the hole
provided on the cutting head holder
(19) and on the bottom ange (33a).
6. Unscrew the xing nut clockwise with the
aid of the maintenance key (26) and re-
move the top ange (33b) and the metal
cutting blade (18).

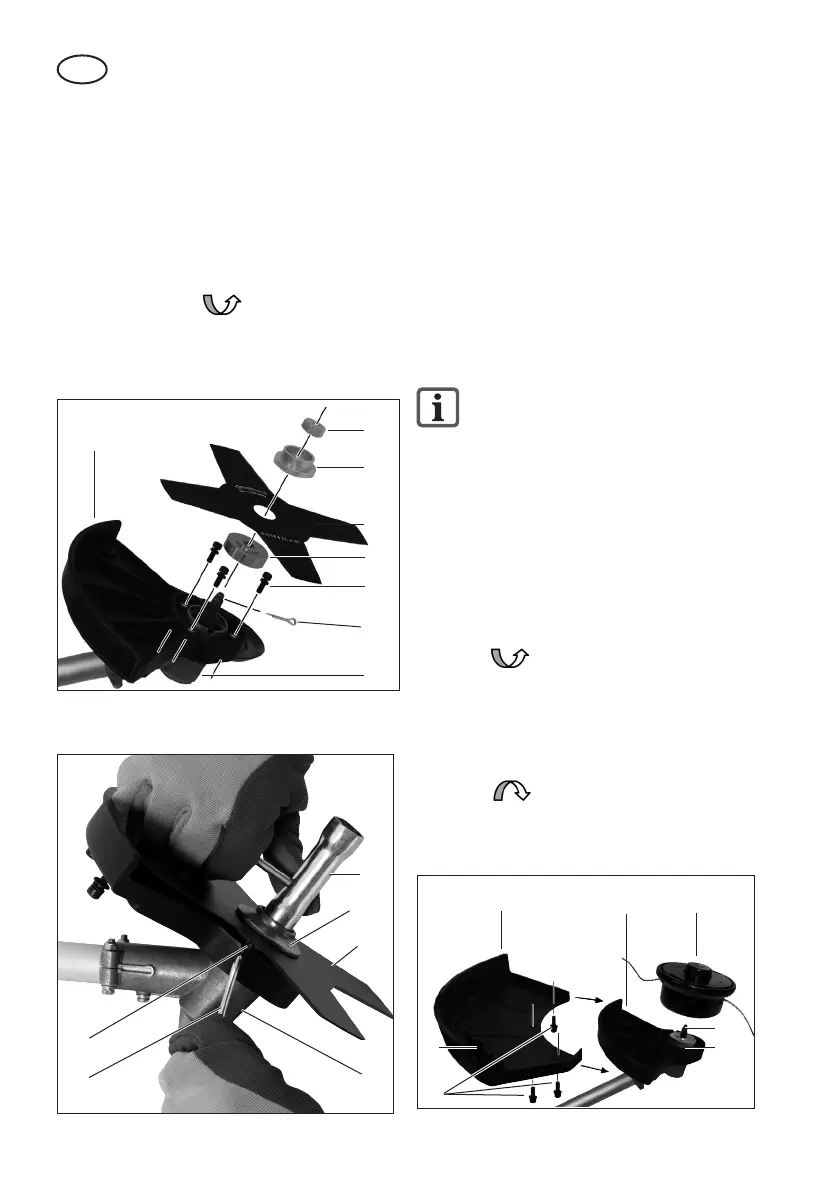

Installing/Removing the Reel
Capsule (Pic. 7)
Dismantling the metal cutting blade
is described in the section on “In-
stalling/Removing the Metal Cutting
Blade”.
Installing the protective cover/thread reel:
1. Screw the protective cover / reel capsule
(15) onto the protective cover / metal cut-
ting blade (20) using the 3 screws (36)
enclosed.
Installing the reel capsule:
2. Screw the reel capsule (16) anticlock-
wise onto the cutting head holder
by hand, as indicated in the diagram.
3. Remove the protective cap on the thread
cutter (14).
Removing the reel capsule:
4. Unscrew the reel capsule (16) clock-
wise by hand. To make the work
easier, the cutting head holder (19) and
bottom ange (33a) can be locked using
the enclosed metal pin (see also pic. 6).
33a
19
15
14
1620
36
pic 7
Installing the metal cutting blade
(pic. 5):
3. Place the metal cutting blade (18) and
anges (33a+b) on the cutting head
holder (19) in the following order:
Bottom ange (33a) – metal cutting
blade (18) – top ange (33b).
4. Screw on the metal cutting blade (18)
anticlockwise using the xing nut
(35) and with the aid of the maintenance
key (see pic. 6, no. 26).
Insert the cotter pin (19a)
33b
33a
34
35
18
19
19a
20
pic 5
Removing the metal cutting blade (pic. 6):
33b
18
26
25
19
pic 6
33a
