Care and Maintenance
Have any work not described in
these instructions carried out by
our Grizzly service centre. Wear
gloves when handling the metal
cutting blade and thread cutter.
Never use metallic threads or
saw blades. The use of such non-
original parts can cause personal
to the equipment and will result
in immediate invalidation of the
guarantee.
Cleaning the Equipment
• Clean the cutting device and protective
cover of grass and earth after each
cutting procedure.
• The equipment is to be neither sprayed
with water nor placed in water.
• Do not use detergents or solvents.
These could cause irreparable damage
to the equipment.

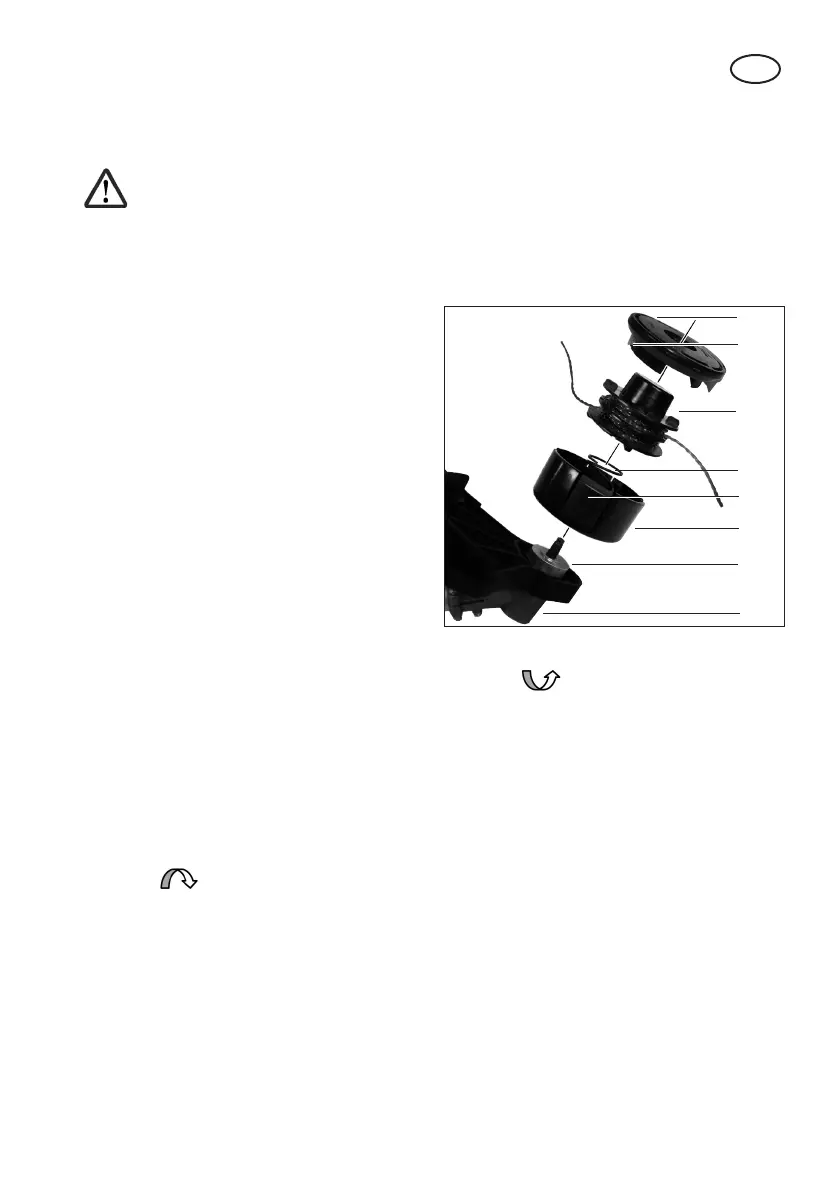

Changing the Reel (Pic. 11)
1. Switch o the engine.
2. Place the equipment on the ground and
ensure that no fuel leaks and that the
equipment is safely supported.
3. Unscrew the reel capsule (16) clock-
wise by hand. To make the work
easier, the cutting head holder (19) and
bottom ange (33a) can be locked us-
ing the enclosed metal pin (see also pic.
6).
4. Press both locking devices (16a) on
the bobbin case (16) at the same time
and remove the spool lid (43). Take the
spool (17) out of the bobbin case (16).
5. Insert a new spool into the spool lid (43)
and thread both thread ends through
the eyes (44) in the spool lid (43).
6. Place the spool lid (43) with the spool
(17) on to the bobbin case (16) so that
the eyes (44) t into the notches on the
bobbin case. It locks into place audibly.
Make sure the spring (45) has a tight t.
pic. 11
43
45
17
44
16
16a
33a
19
7. Screw the reel capsule (16) anticlock-
wise onto the cutting head holder
(19).
8. Trim the thread cord to approx. 13 cm
in order to strain the engine less in the
start and warm-up phase.
