23
English (US)
8.5 KP, Horizontal, cross-section and parts list

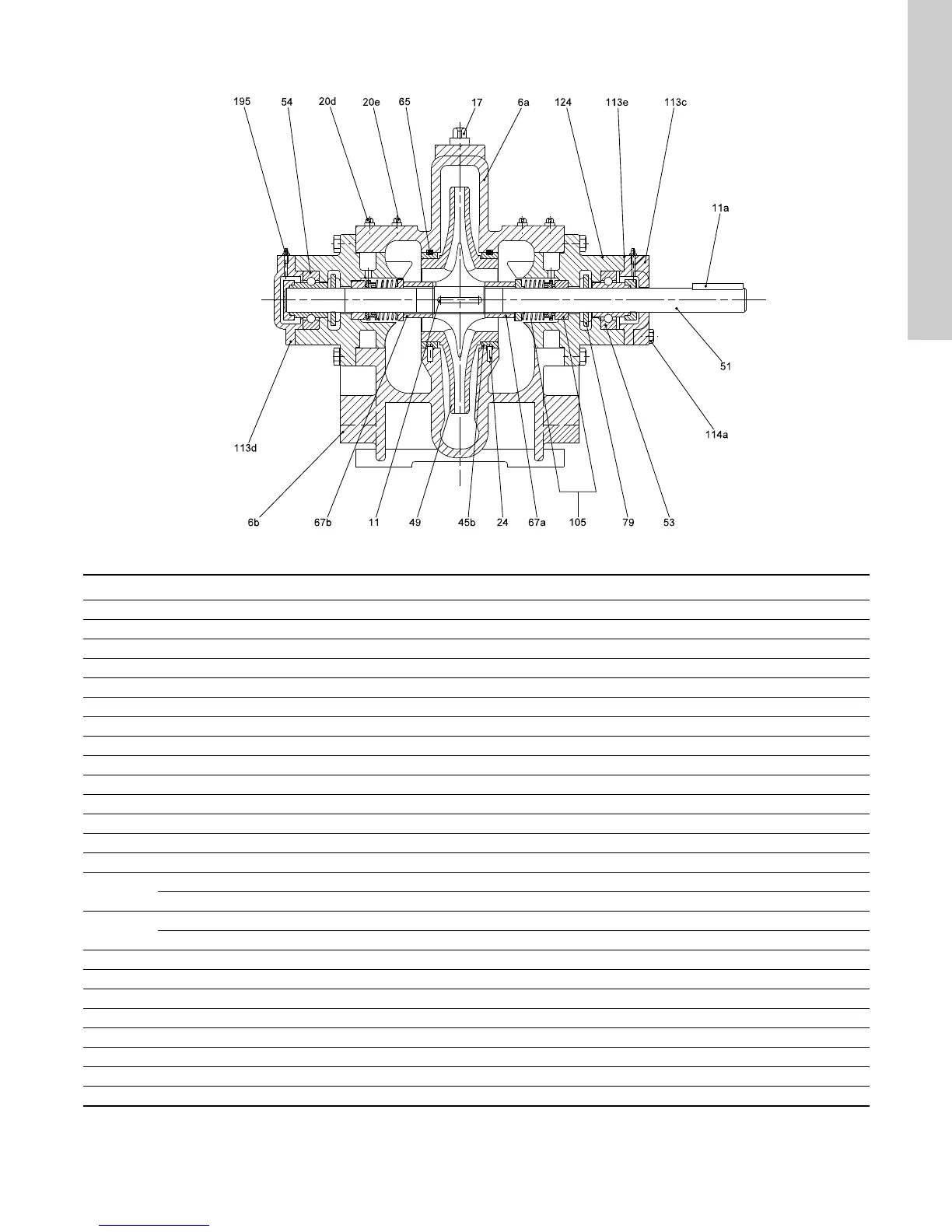

Fig. 14 KP, Horizontal, cross-section
TM03 9952 2512
Pos. Component Material ASTM standard
6a Pump housing, upper Cast iron ASTM A48 CL35
6b Pump housing, lower Cast iron ASTM A48 CL35
11 Key Steel C1018, cold drawn steel
11a Key Steel C1018, cold drawn steel
17 Pipe plug Steel
20d Plug, shaft seal flushing Steel
20e Plug, suction chamber Steel
24 Locking pin, wear ring Steel ANSI/ASME B18.8
45b Wear ring with groove for retaining ring Bronze ASTM B148, C95200
49 Impeller Silicon bronze ASTM B584, C87600
51 Shaft Steel AISI 1144 Stress proof
53 Bearing, drive end Steel
54 Bearing, non-drive end Steel
65 Retaining ring Stainless steel, series 303
67a
Impeller/shaft sleeve nut, right-hand (RH) thread Bronze lll932, C89835
Impeller/shaft lock nut, right-hand (RH) thread Stainless steel
67b
Impeller/shaft sleeve nut, left-hand (LH) thread Bronze lll932, C89835
Impeller/shaft lock nut, left-hand (LH) thread Stainless steel
79 Slinger Neoprene
105 Shaft seal
113c Bearing cover, drive end Cast iron ASTM A48, CL30
113d Bearing cover, non-drive end Cast iron ASTM A48, CL30
113e Gasket Vegetable fiber
114a Screw Steel
124 Bearing housing Cast iron ASTM A48 CL30
195 Lubricating nipple Zinc coated steel
