7.3 Pump identification
All PACO pumps are identified by catalog and serial numbers.
These are stamped on the pump nameplate, as shown in fig. 12,
affixed to the pump housing. Refer to these numbers in all
correspondence with Grundfos.
7.3.1 Nameplate

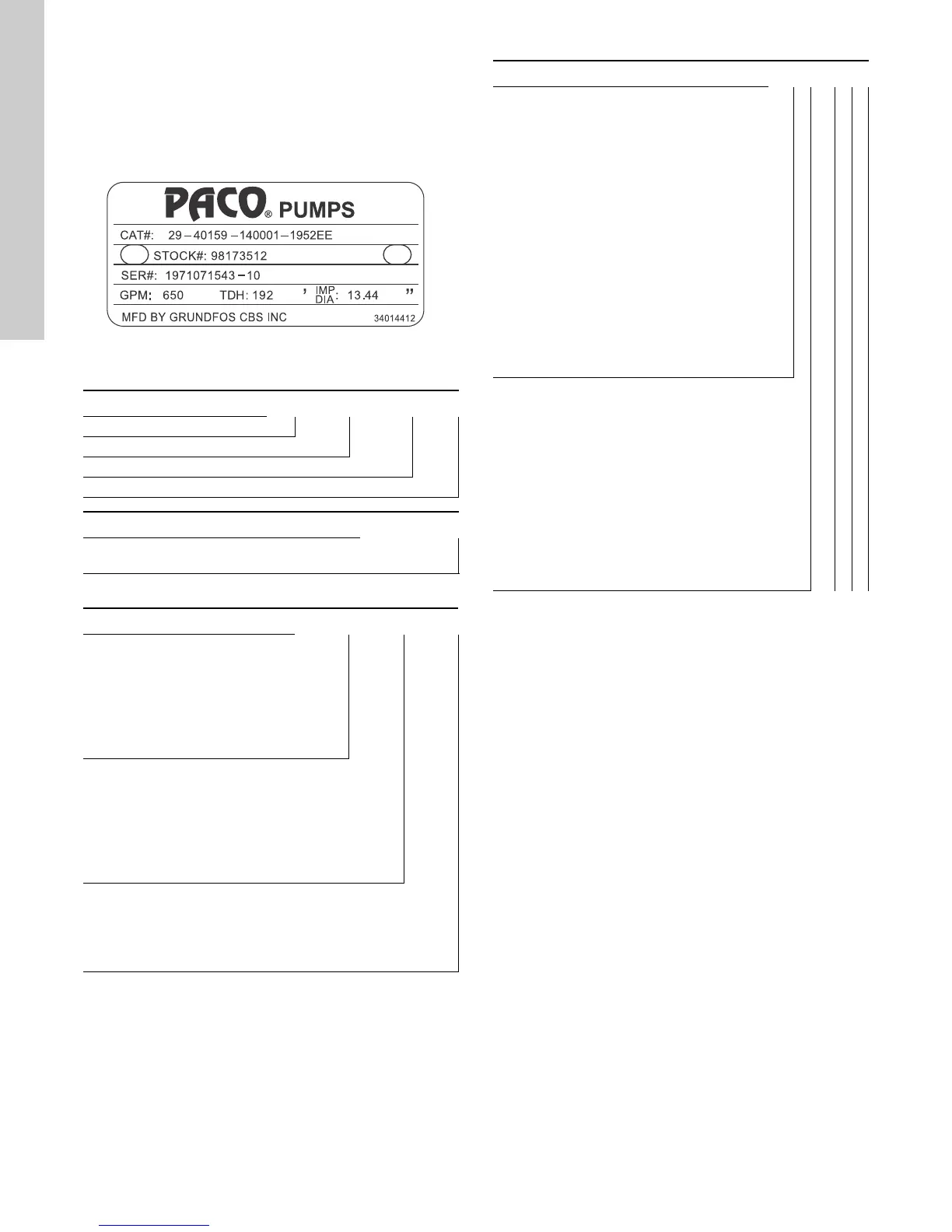

Fig. 12 KP, KPV, KPVS nameplate
7.3.2 KP KPV model number and construction code
7.3.3 Type key
* 2" outlet on pumps with impellers ≤ 13"
TM05 7638 1313
Example 29 60123 140001 1852
Product code
Model code
Materials of construction
Motor code
Production code 29
29: Split case (KP, KPV)
31: Split coupled split case (KPVS)
Model code 60 12 3
Pump outlet
20 = 2"*
30 = 3"
40 = 4"
50 = 5"
60 = 6"
80 = 8
10 = 10"
12 = 12"
14 = 14"
16 = 16"
20 = 20"
24 = 24"
Nominal maximum impeller diameter
95 = 9.5"
12 = 12"
13 = 13"
14 = 14"
15 = 15"
19 = 19"
20 = 20"
24 = 24"
25 = 25"
27 = 27"
28 = 28"
Impeller design
Clockwise rotation:
1, 3, 5, 7, 9
Counterclockwise rotation:
0, 2, 4, 6, 8
Materials of construction 1 4 00 0 1
Packing or seal
3 = Standard packing
1 = Type 21, single seal, ceramic seat, Buna
2 = Type 21, single seal, Tungsten carbide seat,
Viton
6 = Type 21, single seal, Ni-Resist seat, Viton
7 = Type 21, single seal, Ni-Resist seat, Buna
8 = Type 1B, single seal, Ni-Resist seat, Buna
9 = Type 21, single seal, Ni Resist seat, Viton
A = Type 1, single seal, ceramic seat, Buna
B = Type 1, single seal, Ni-Resist seat, Viton
C = Type 1, single seal, Tungsten Carbide seat,
Viton
D = Type 1, single seal, Ni Resist seat, Buna
E = Type 1, single seal, ceramic seat, Buna
F = Type 1, single seal, Si Cbrd seat, EPDM
G = Type 8-1, single seal, Si C brd seat, Viton
H = Type 8-1, single seal, ceramic seat, Buna
ID of packing or seal
2 = 1"
3 = 1 - 1/4"
E = 1 - 1/2"
4 = 1 - 3/4"
5 = 2 - 1/4"
6 = 2 - 3/4"
7 = 3"
K = 3 - 1/2"
V = 4"
H = 4.1"
B = 4.7"
N = 5.5"
