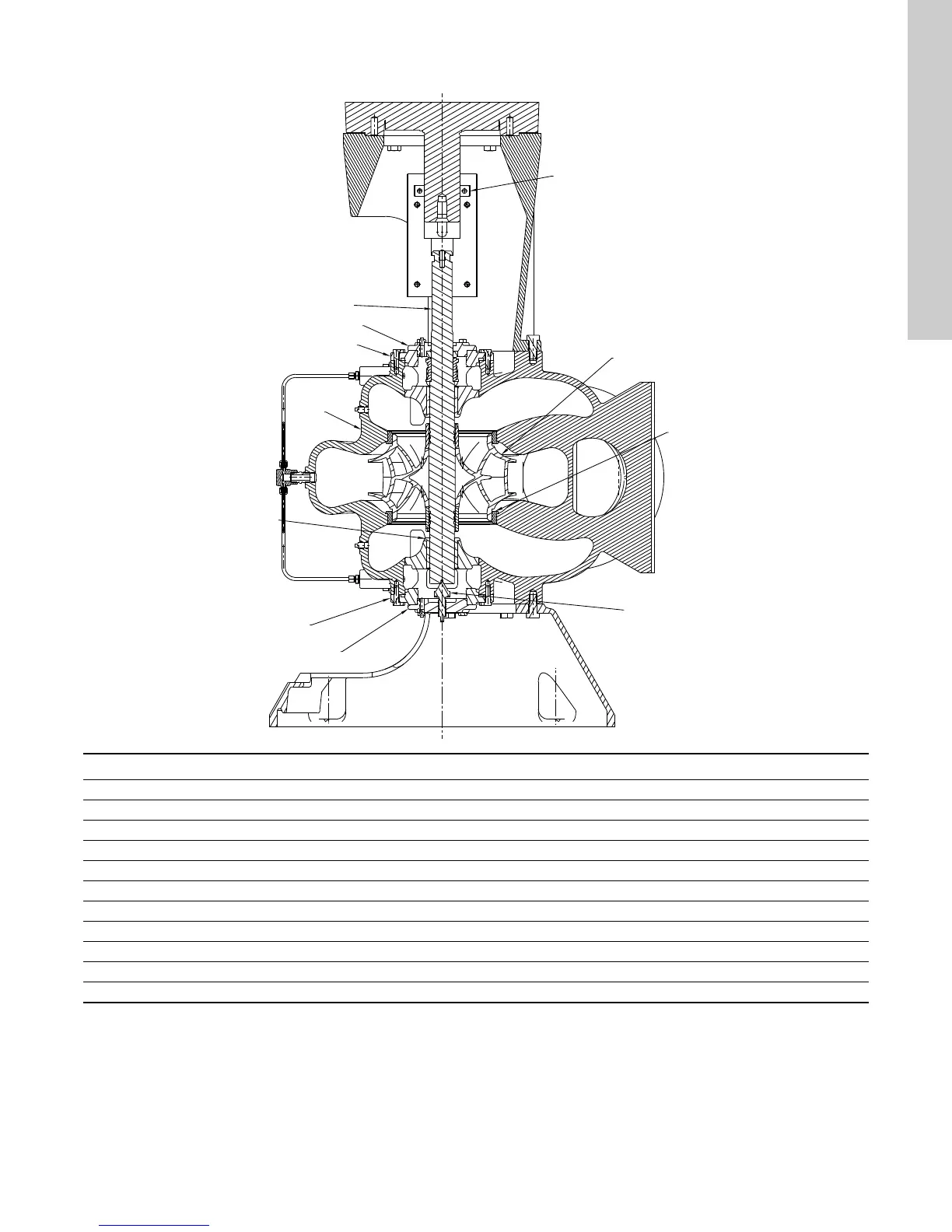

8.7 KPVS, Vertical Split Coupling Split Case, cross-section and parts list
TM06 8407 0417
51
113
124a
49
6a
200
113
113d
114d
45
204
Pos. Component Material ASTM standard
6a Pump housing Cast iron ASTM A48 CL35
45 Wear ring Bronze ASTM B148, C95200
49 Impeller Silicon bronze ASTM B584, C87600
51 Shaft Steel AISI 1144 Stress proof
113 Bearing housing Cast iron ASTM A48, CL30
113d Bearing cover, non-drive end Cast iron ASTM A48, CL30
114d Jacking screw
124a Seal housing Cast iron ASTM A48, CL30
200 Sleeve bearing Vesconite
203 Coupling Aluminum
204 Shaft collar Stainless steel
