8.6 KPV, Vertical, cross-section and parts list

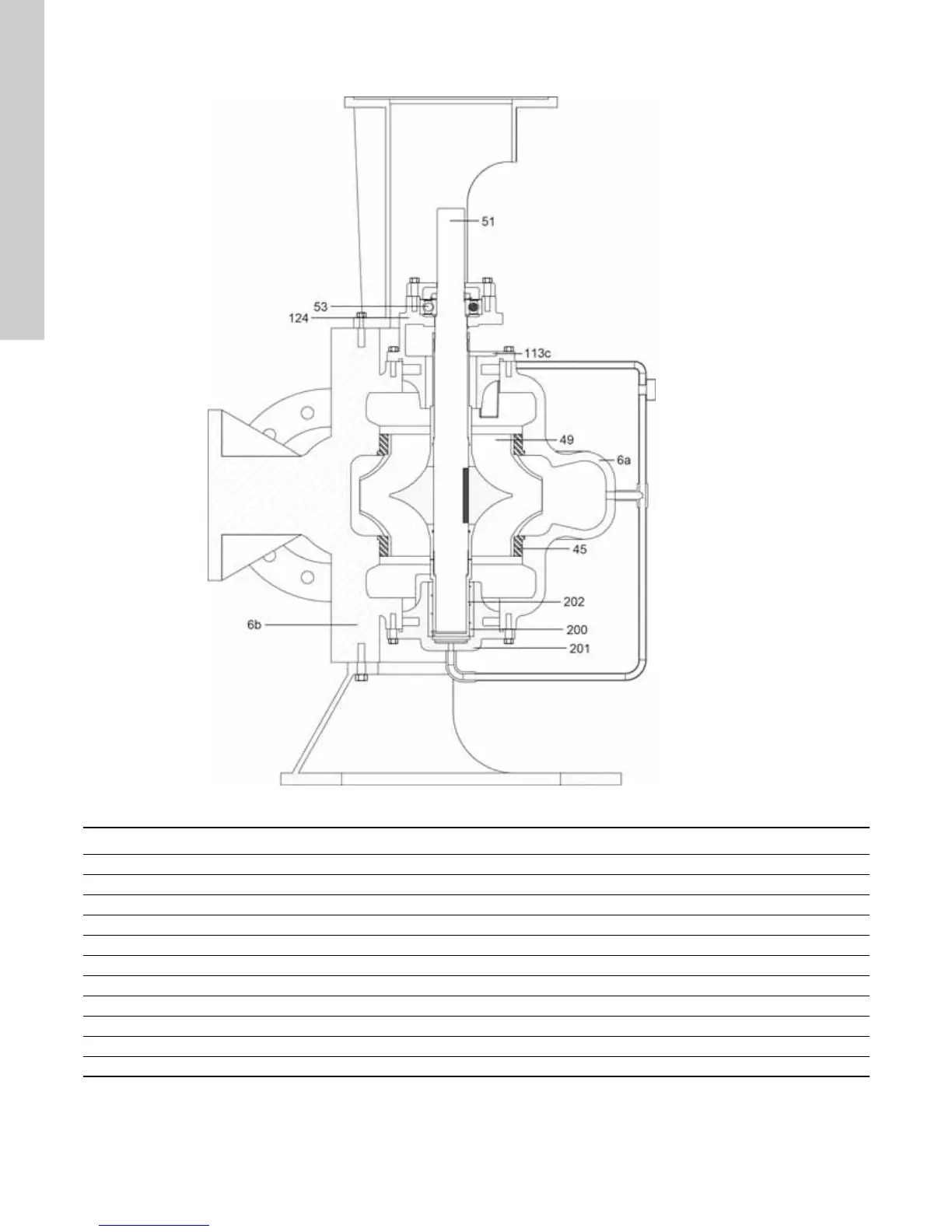

Fig. 15 KPV, Vertical, cross-section
TM05 9317 3713
Pos. Component Material ASTM standard
6a Pump housing, upper Cast iron ASTM A48 CL35
6b Pump housing, lower Cast iron ASTM A48 CL35
45 Wear ring Bronze ASTM B148, C95200
49 Impeller Silicon bronze ASTM B584, C87600
51 Shaft Steel AISI 1144 Stress proof
53 Ball bearing, drive end Steel
113c Bearing cover, drive end Cast iron ASTM A48, CL30
124 Bearing housing Cast iron ASTM A48 CL30
200 Sleeve bearing Graphalloy Grade GM 343.3
201 Sleeve bearing housing Cast iron
202 Lower sleeve Stainless steel, series 416
