GSE 250 - Communication Port Connection; RS-232 Serial Connection

Page 16 250 Technical Reference
C
C
O
O
M
M
M
M
U
U
N
N
I
I
C
C
A
A
T
T
I
I
O
O
N
N
P
P
O
O
R
R
T
T
C
C
O
O
N
N
N
N
E
E
C
C
T
T
I
I
O
O
N
N
This section provides diagrams to illustrate the terminal connections.

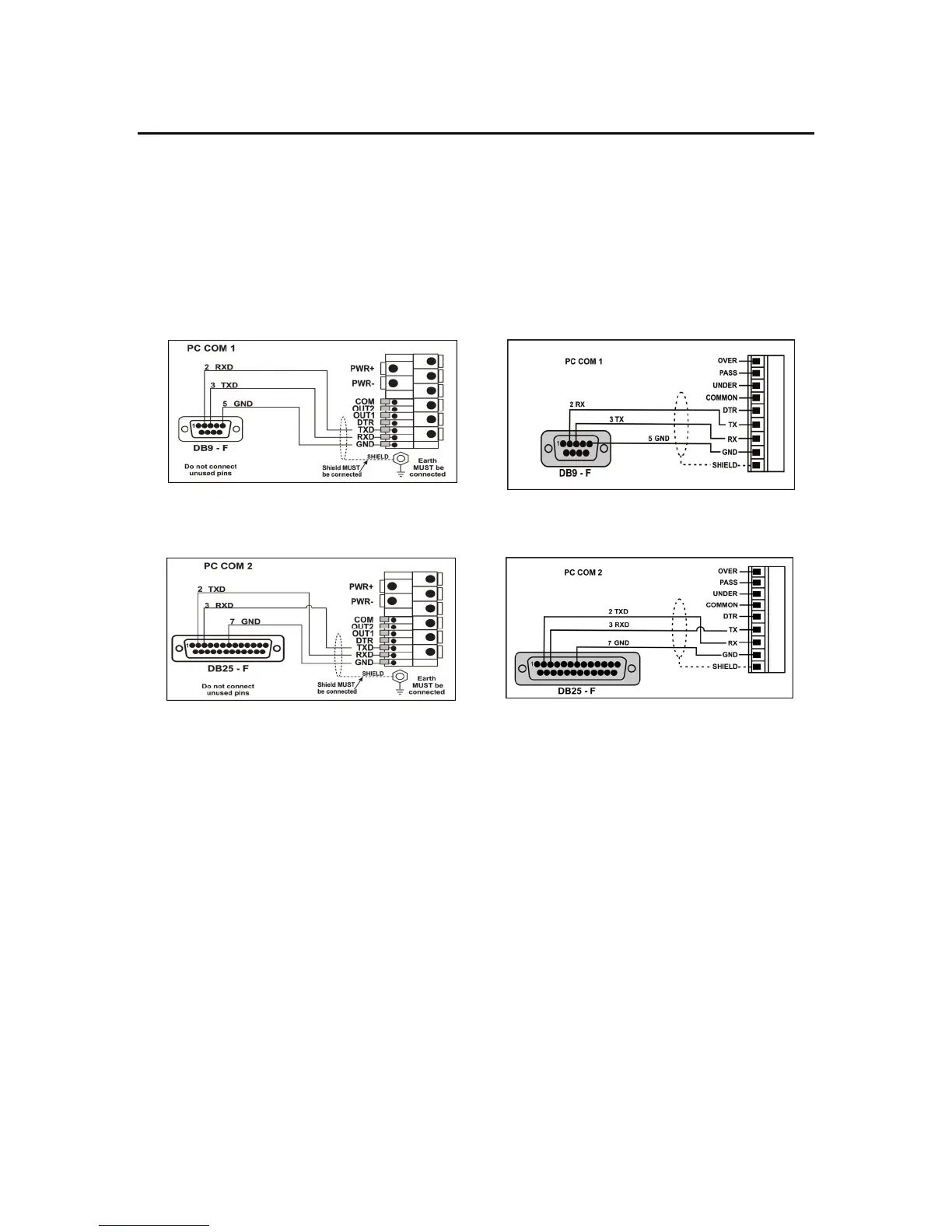

RS-232 SERIAL
Connection between the indicator and computer DB9 or DB25 serial port (RXD, TXD, GND)
DB25 RS-232 - Indicator to PC (250/250SS)
DB25 RS-232 - Indicator to PC (250X)
DB9 RS-232 - Indicator to PC (250/250SS)
DB9 RS-232 - Indicator to PC (250X)
