Register Description Code Example
Second 0157 00000015
Key locking 0160 00000000
Special function setting 0161 00000000
Auto power off setting 0162 00000000
Backlight options 0163 00000000
Remote key function setting 0164 00000000
Setpoint target high 0171 000007D0
Setpoint target low 0172 000003E8
Counting sample quantity 0180 0000000A

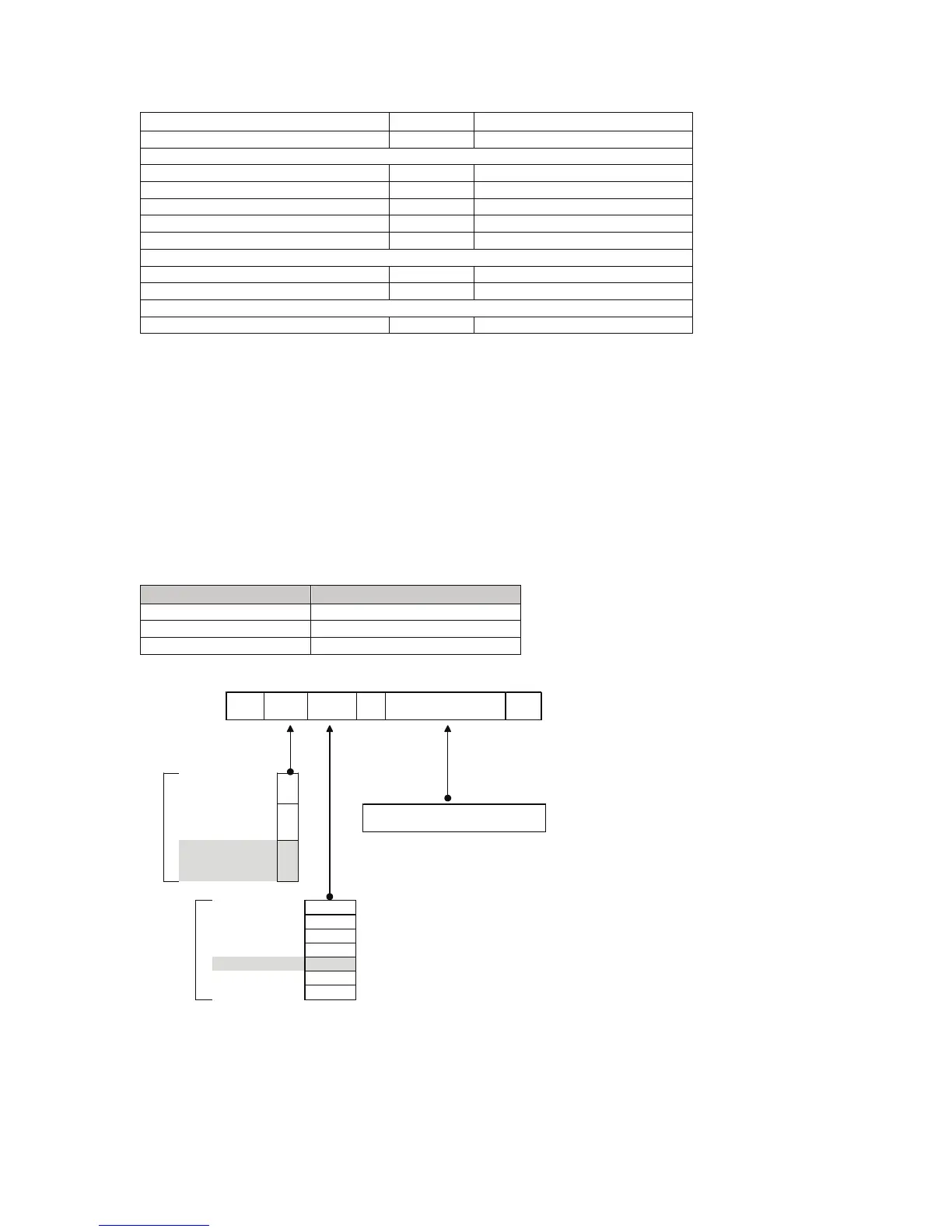

EXAMPLE: REMOTE KEYPRESS
This example shows how to perform a keypress remotely. It is possible to simulate keypad
keypress via RS-232 or GSE-link. Refer to the chart below for the hexadecimal code for each
key. The entered value is always preceded with 20 and is followed with the code for the type of
transaction and then the register of the stored data.
To perform a TARE keypress remotely, key in the following:
Enter 20120008:8003
Then enter one of the following commands:
Command Program
Send
GSE View
<Alt> 013 <Alt> 010
Communication Plus
<CR><LF>
Other terminal program
20 12 0008
:
8003 
Read Literal
Value
05
Read Final Value
in Hex
11
Commands
Write Final
Value
12
Gross Weight 0026
Net Weight 0027
Target High 0171
Target Low 0172
Keypress 0008
System Status 0021
Registers
System Error 0022
Keypress value to write (in
hexadecimal)
The indicator will respond with a message similar to the following:
9F120008:0000
Where the value after the “:” indicates no key was pressed. See the Codes for Keypad Related
Registers chart for a reference of related codes.
