GSE 250 - GSE-Link Option Connection (Opto-Link)

Version 2.4 Page 19
G
G
S
S
E
E
-
-
L
L
I
I
N
N
K
K
O
O
P
P
T
T
I
I
O
O
N
N
C
C
O
O
N
N
N
N
E
E
C
C
T
T
I
I
O
O
N
N
(
(
O
O
P
P
T
T
O
O
-
-
L
L
I
I
N
N
K
K
)
)
A temporary infrared communication link can be established between the Model 250 and a
computer using the GSE-LINK cable option. The GSE-LINK cable can be used to transfer setup
and calibration information from a computer. It can also be used to download software upgrades
to the Model 250 from a PC.
The computer end of the GSE-LINK cable is a standard female DB9 connector. The indicator
end of the cable consists of an infrared transceiver, which attaches to the left side of the Model
250 display. To facilitate a quick and simple connection, the infrared transceiver is secured in
place by a permanent magnet located within the head of the GSE-LINK.
Refer to GSE-LINK Activation on page 25 for more information.

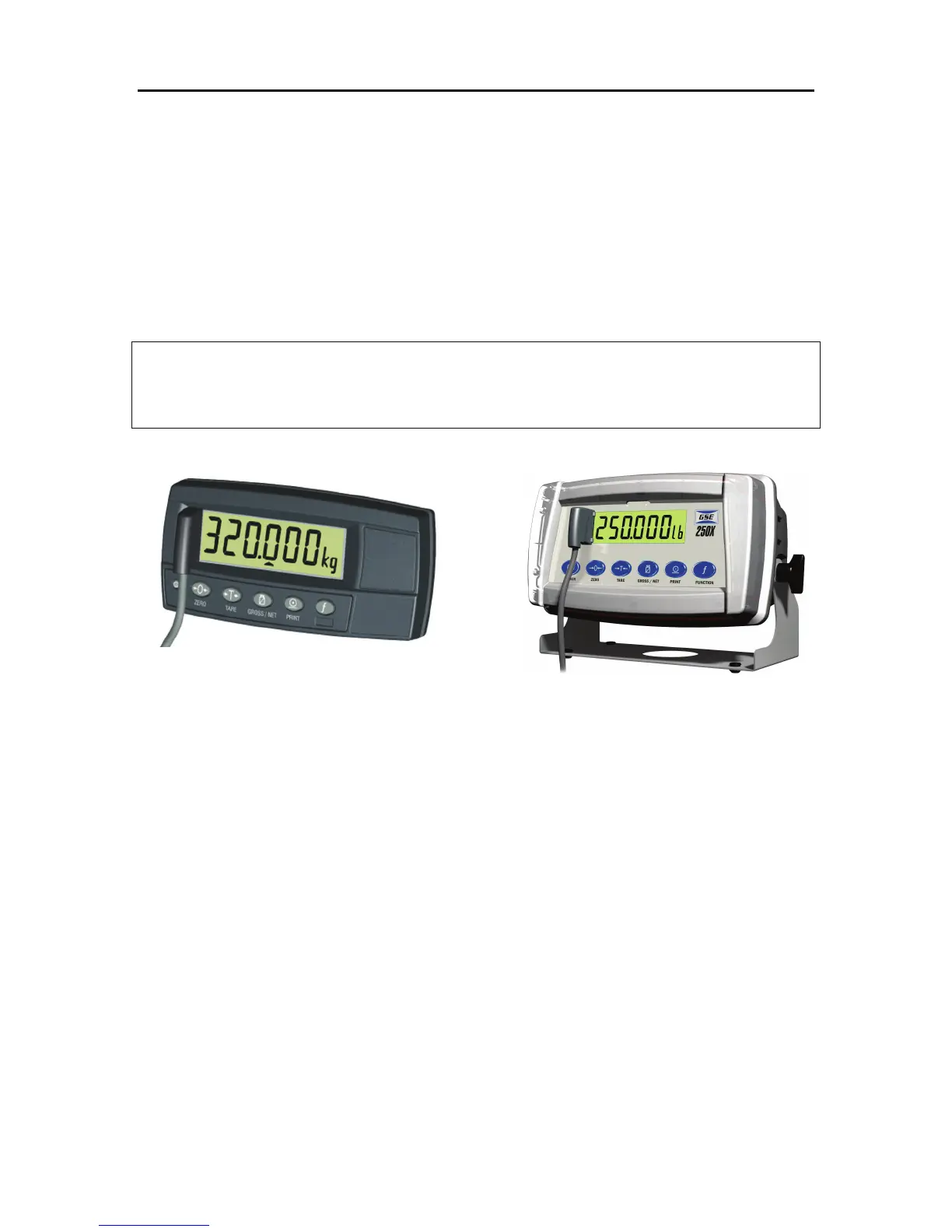

Figure 4: GSE Link Option Attachment
 WARNING
The GSE-LINK head contains a strong magnet and care should be taken with it's proximity to
electronic media (e.g. credit cards, floppy disks, etc.) and/or other electronic instrumentation.
