3.1 Panel Components and Operations
3.1.1 Operation panel
Numbers shown after names in the following figures correspond to item numbers in the detailed
descriptions below.
Shortcut keys 5.2.6
DIGIT key 5.2
UP/DOWN keys 5.2
LCD 5.1
MODIFY dial 5.2
Output ON/OFF LED
3.4.8
ENTER key 5.2
OUTPUT key
3.4.8
CANCEL key 5.2

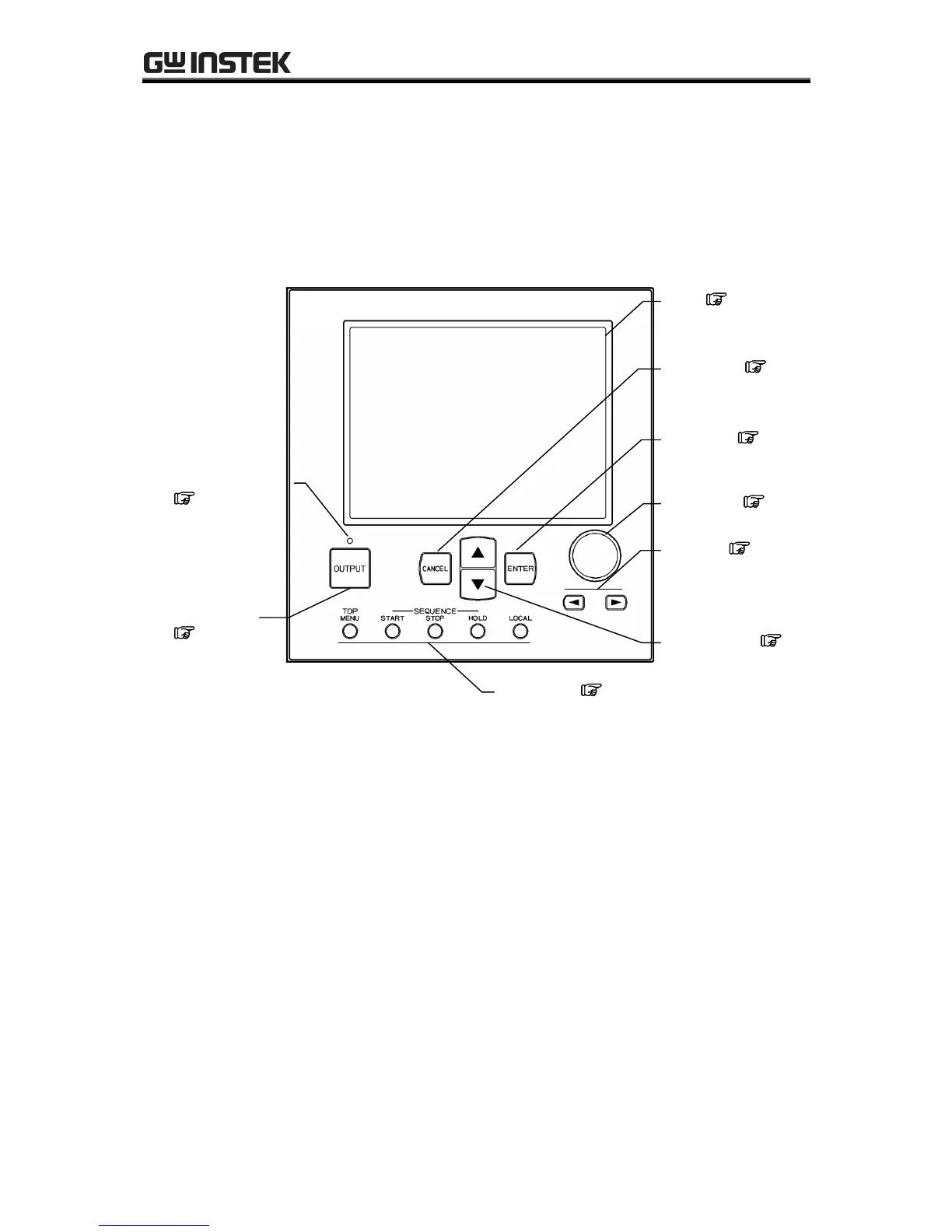

Figure 3-1. APS-1102A Operation Panel
