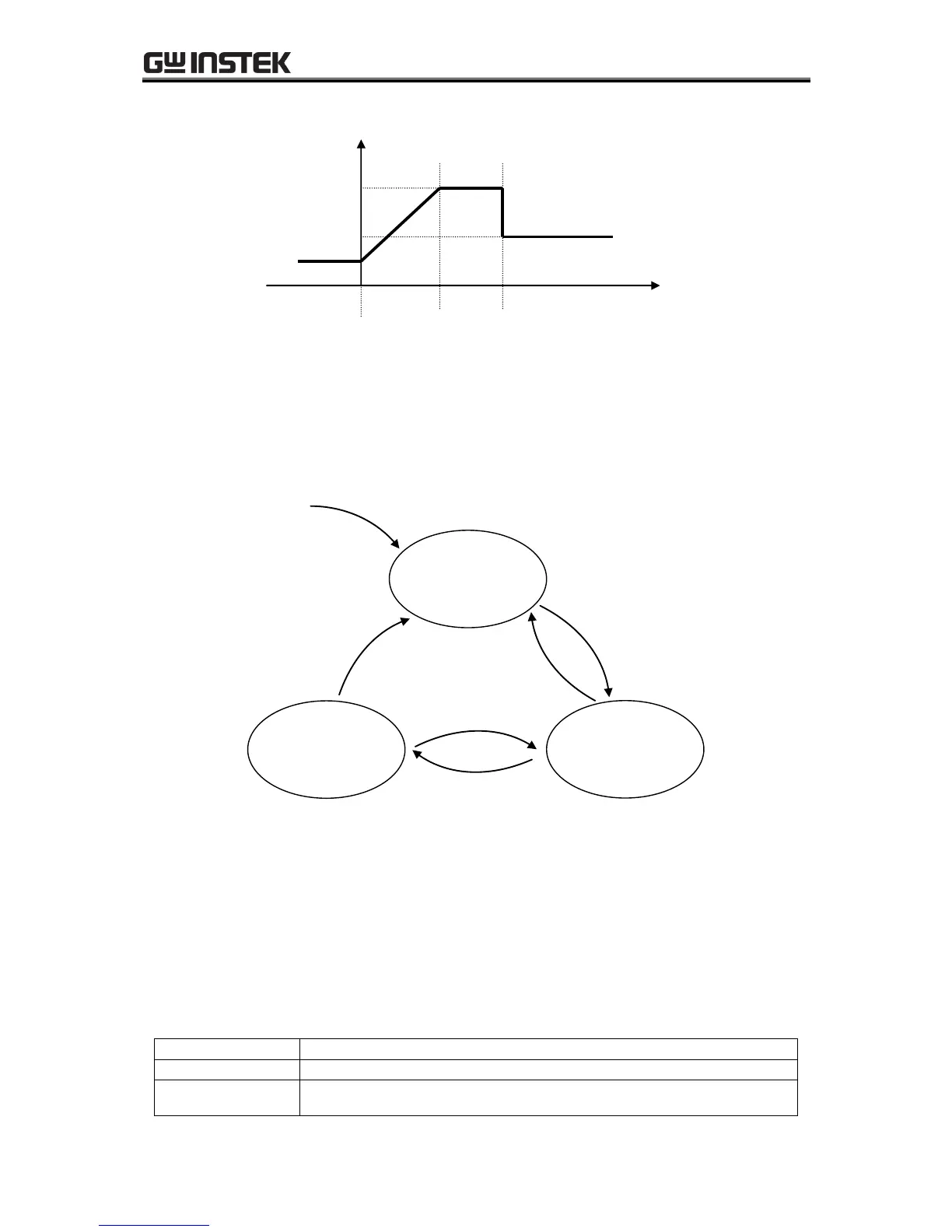

GW Instek APS-1102A - Figure 4-5. Example of Basic Step Transitions; Figure 4-6. Block Diagram of Sequence Mode Transitions; Table4-6. Sequence Modes

4 ADVANCED OPERATION EXAMPLE
APS-1102A
4-25
An example of basic step transitions is shown below.
<START>
Output parameters
Time
Normal output
step
Step 1
Step 2
Step 3
Steps 1, 2
Step 3
Figure 4-5. Example of Basic Step Transitions
c) Sequence mode
Figure 4-6 shows a mode transition diagram for sequence operations.
Idle mode
(normal output)
Output on
Run mode
(sequence
execution)
Hold mode
(pause)
<Start>
<Stop>
<Stop>
<Hold>
<Start>
Figure 4-6. Block Diagram of Sequence Mode Transitions
---------- Notes -----------------------------------------------------------------------------------------------------
 Modes also change according to the [step end] specification.
-------------------------------------------------------------------------------------------------------------------------
Table4-6. Sequence Modes
Idle mode
Mode during normal output.
Run mode
Mode during sequence execution.
Hold mode
Sequence pause mode.
Maintains output at time when <Hold> was set.
