GW Instek APS-1102A - Rear Panel; Figure 3-3. APS-1102 A Rear Panel

APS-1102A User Manual
APS-1102A
3-4
3.1.3 Rear panel
External signal input/external sync signal input connector 3.3.5
External control I/O connector 3.3.4
Output terminals 3.3.1
LINE INPUT 2.3
USB connector 3.3.3
Exhaust vent
RS232 connector 3.3.2

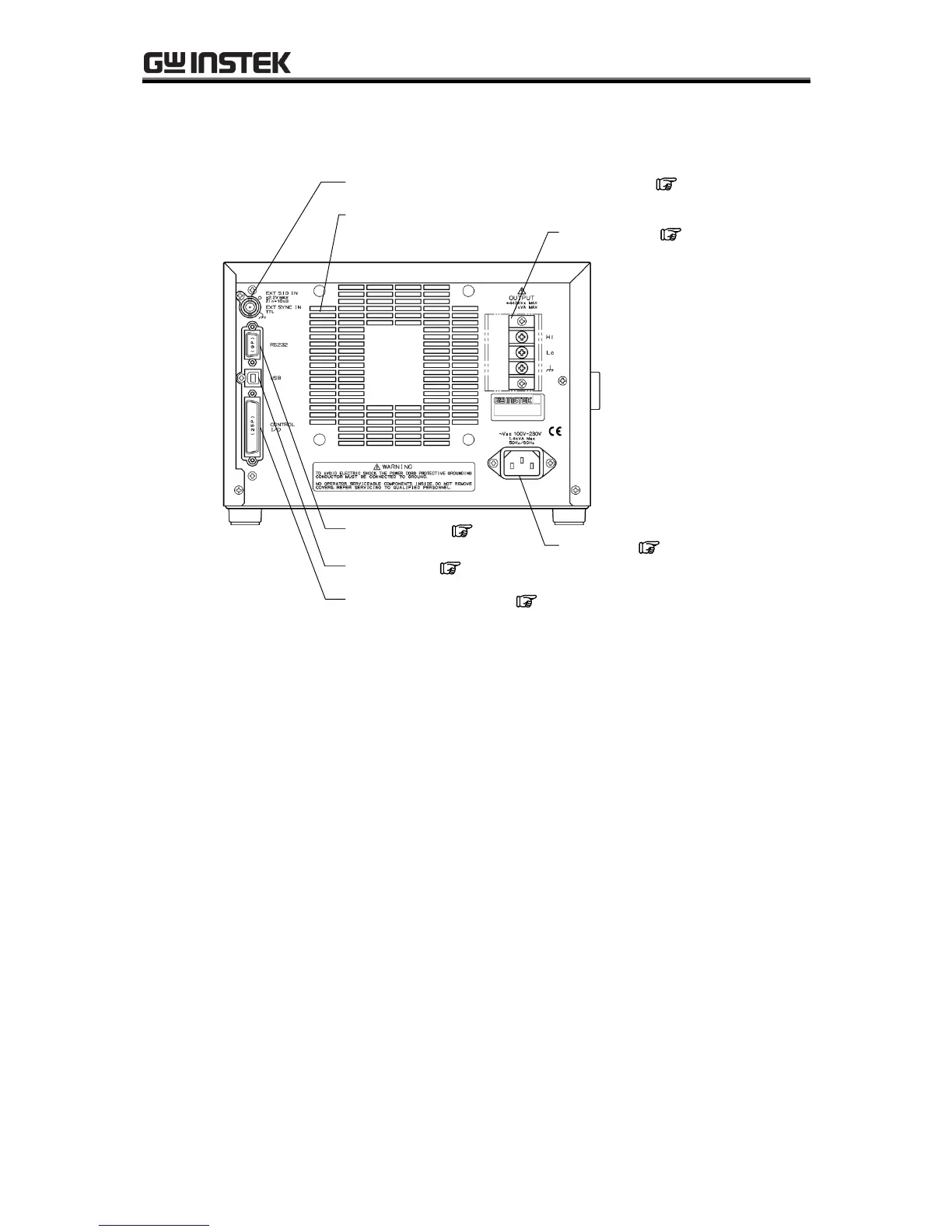

Figure 3-3. APS-1102A Rear Panel
