3.5 Output Characteristics
The following charts show output voltage vs. output current of the APS-1102A (resistance load, 45 Hz to
65 Hz or DC, typical character).
Figure 3-14 and Figure 3-15 show AC output characteristics, and Figure 3-16 and Figure 3-17
show DC output characteristics.
48.4
75.0
100.0
100.0 155.075.0
Maximum output power = 750 VA
100 V range: 100 Vrms/10 Arms
200 V range: 200 Vrms/5 Arms
-------------------------------------------------------------------------
Output voltage (Vrms)/Rated output voltage (Vrms) × 100 (%)
Output current (Arms)/Maximum output current (Arms)  100 (%)
Output range: Rated voltage/Maximum current
48.4
75.0
100.0
100.0 155.075.0
Maximum output power = 750 VA
100 V range: 100 Vrms/10 Arms
200 V range: 200 Vrms/5 Arms
-------------------------------------------------------------------------
Output voltage (Vrms)/Rated output voltage (Vrms) × 100 (%)
Output current (Arms)/Maximum output current (Arms)  100 (%)
Output range: Rated voltage/Maximum current

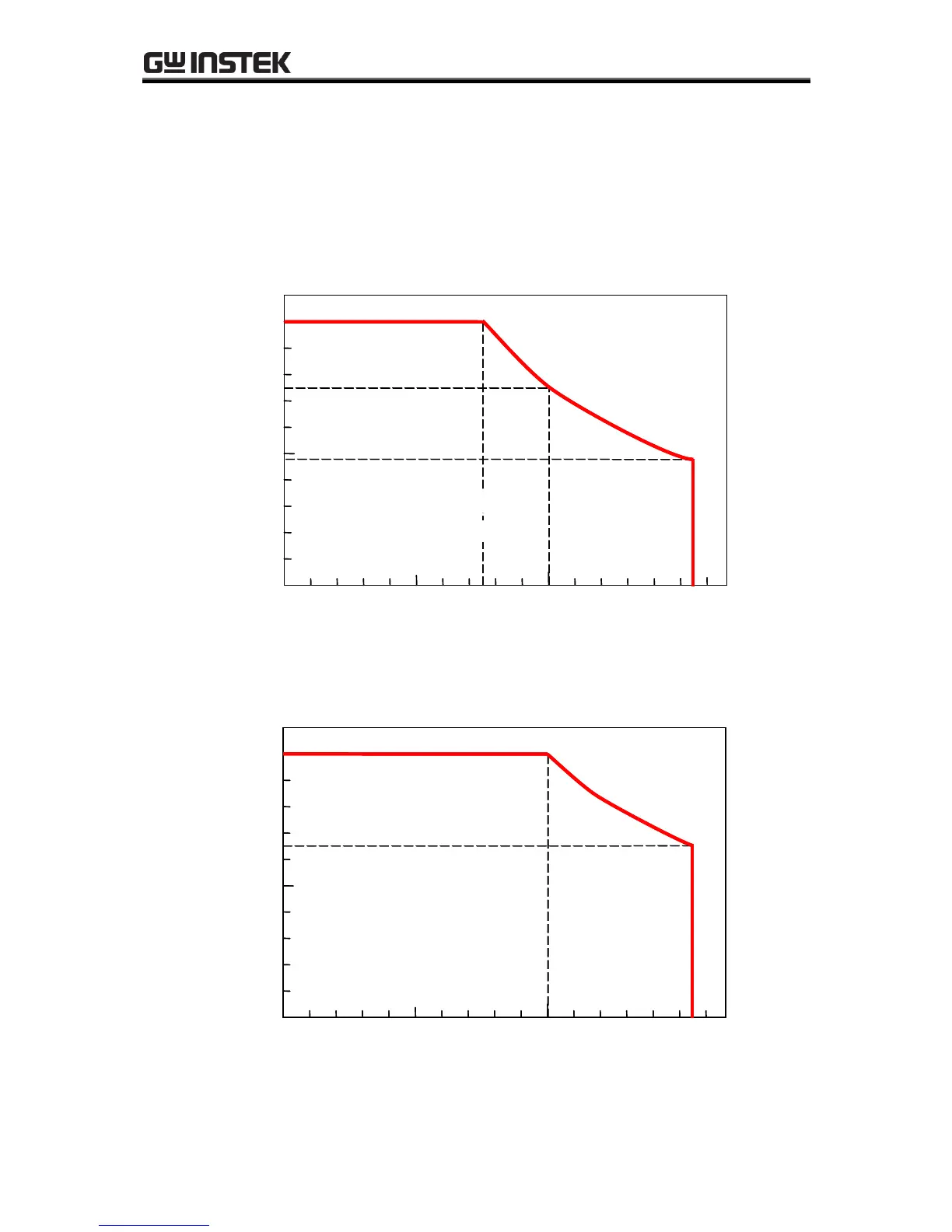

Figure 3-14. Output Voltage (AC) vs. Output Current Characteristics
(100 V AC Input, AC-INT)
74.1
100.0
100.0 155.0
Maximum output power = 1000 VA
100 V range: 100 Vrms/10 Arms
200 V range: 200 Vrms/5 Arms
------------------------------------------------------------------------
Output voltage (Vrms)/Rated output voltage (Vrms) × 100 (%)
Output current (Arms)/Maximum output current (Arms)  100 (%)
Output range: Rated voltage/Maximum current
74.1
100.0
100.0 155.0
Maximum output power = 1000 VA
100 V range: 100 Vrms/10 Arms
200 V range: 200 Vrms/5 Arms
------------------------------------------------------------------------
Output voltage (Vrms)/Rated output voltage (Vrms) × 100 (%)
Output current (Arms)/Maximum output current (Arms)  100 (%)
Output range: Rated voltage/Maximum current
Figure 3-15. Output Voltage (AC) vs. Output Current Characteristics
(200 V AC Input, AC-INT)
