GW Instek APS-1102A - RS232 Connector; Figure 3-7. RS232 Connector; Table3-4. Specification of RS232 Interface

3 PANEL AND BASIC OPERATIONS
APS-1102A
3-11
3.3.2 RS232 connector
APS-1102A is equipped with the RS232 interface to control from an external computer, See “6.
REMOTE INTERFACE”.
RS232 connector

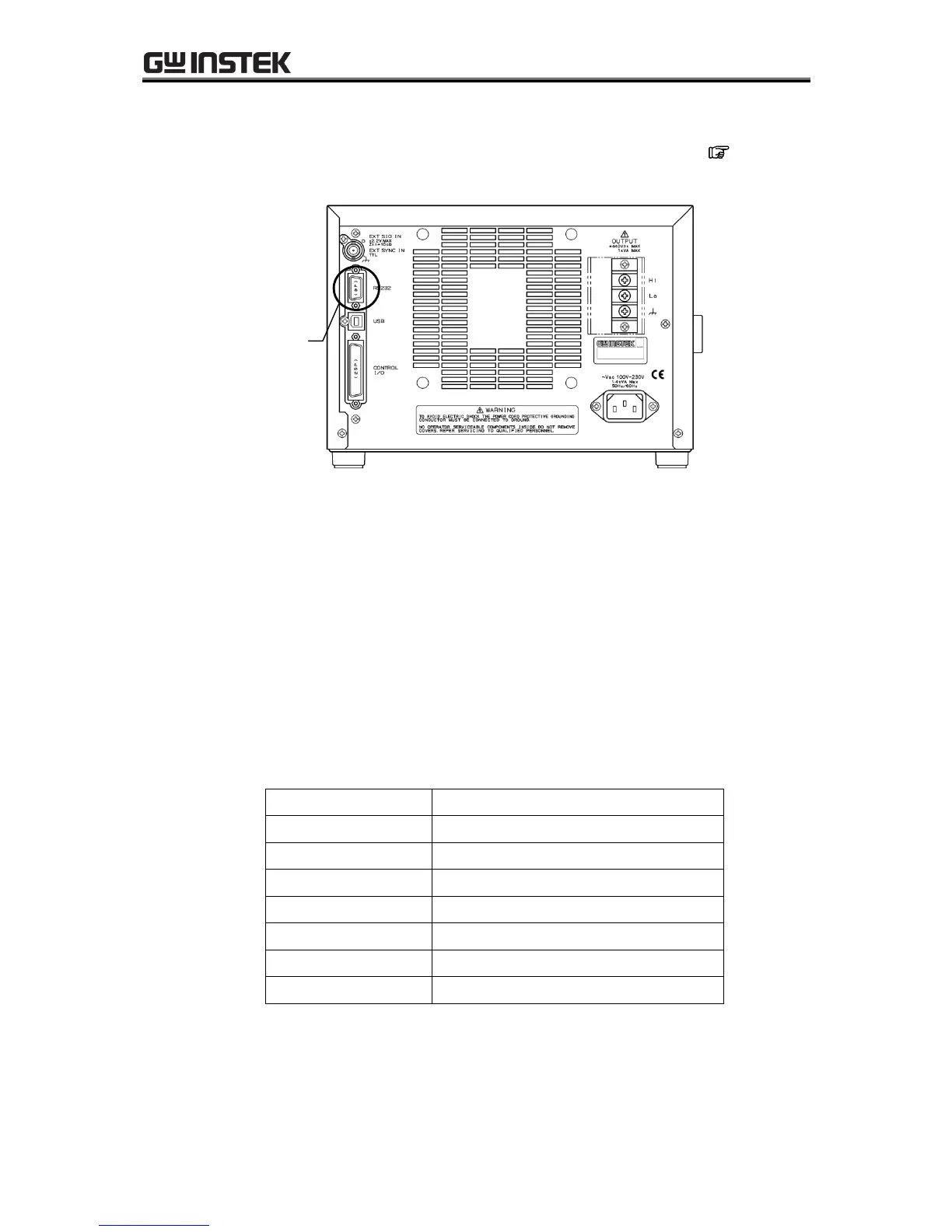

Figure 3-7. RS232 Connector
------- Notes --------------------------------------------------------------------------------------------------------
 Binary transmission is not supported.
 Use a cross cable.
 To transfer arbitrary waveform data, use the USB interface.
-------------------------------------------------------------------------------------------------------------------------
The specifications of RS232 interface are shown in “Table3-4. Specification of RS232
interface”.
Table3-4. Specification of RS232 interface
Item
Description or Selection
Terminal
D-sub 9-pin(male, UNC #4-40 screws)
Baud rate
9600 bps / 19200 bps
Terminator
“CF”“LF” / “CR” / “LF”
Parity
None/Odd/Even
Stop bit
1 / 2
Data bit
7 / 8
Flow control
None/Hardware/Software
