GW Instek GDS-1062A - Autoset Key; Hardcopy Key; Help Key; Horizontal Menu Key

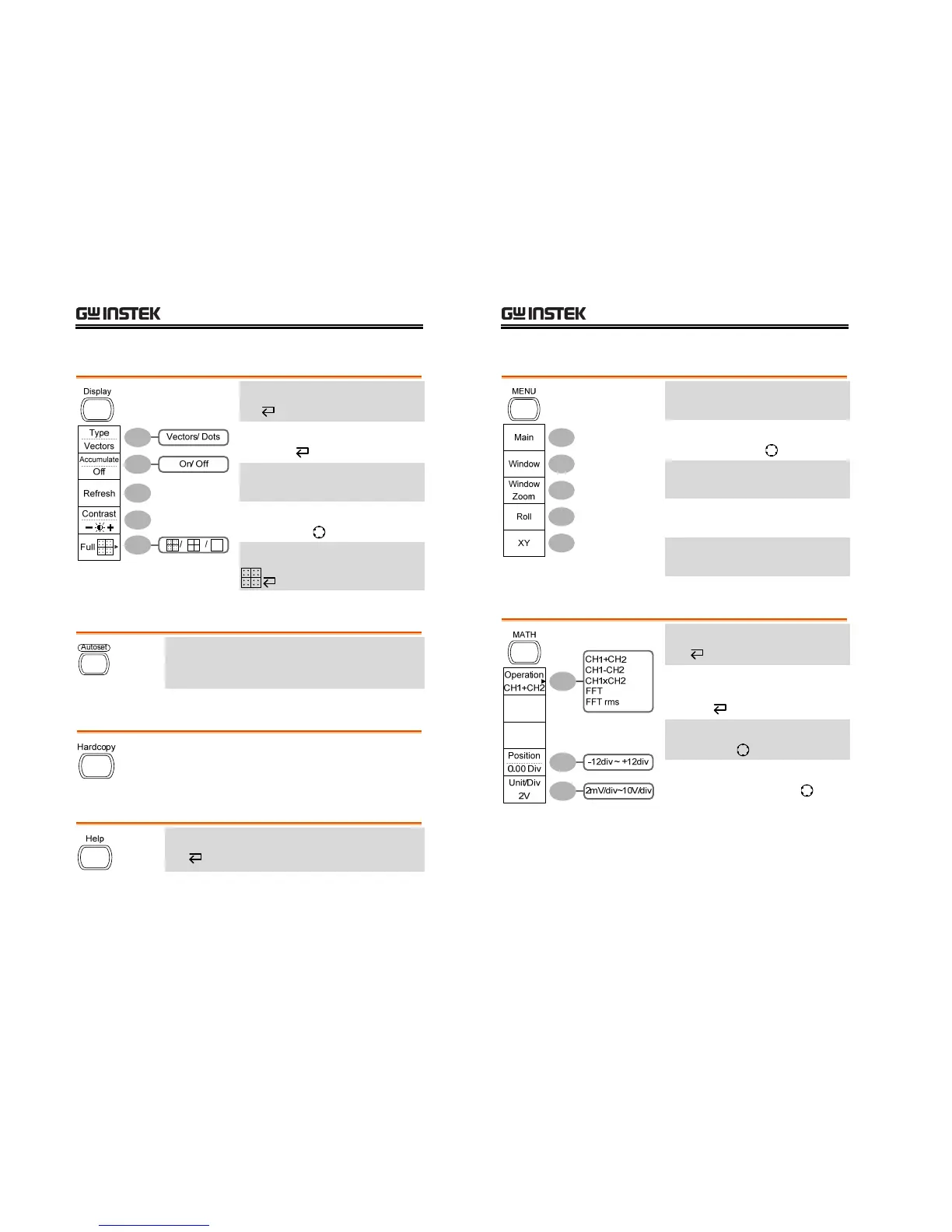

QUICK REFERENCE
25
Display key
Select waveform type
Type
Waveform accumulate On/Off
Accumulate
Refresh accumulation
Refresh
Set display contrast
Contrast→VAR
Select display grid
Autoset key
Automatically find the signal and set the scale
Autoset
Hardcopy key
→ See Utility key (page36)
Help key
Turn help mode on/off
Help
GDS-1000A Series User Manual
26
Horizontal menu key
Select main (default) display
Main
Select window mode
Window→TIME/DIV
Zoom in window mode
Window Zoom
Select window roll mode
Roll
Select XY mode
XY
Math key 1/2 (+/-/x)
Math on/off
Math
Select math operation type (+/–
/x/FFT/FFT rms)
Operation
Set result position
Position→VAR
Math result Volt/Div
Unit/Div→VOLTS/DIV(CH2)
