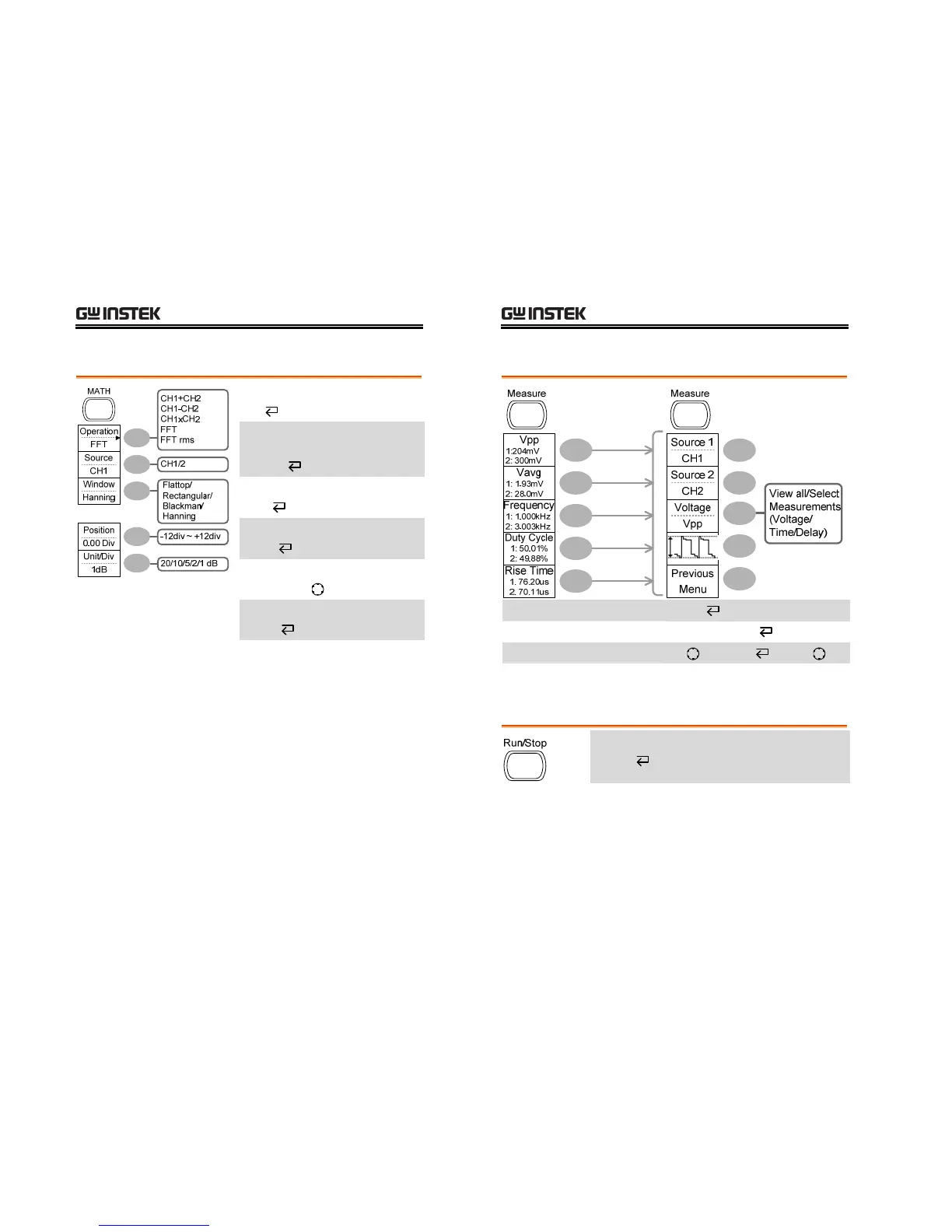

Math key 2/2 (FFT/FFT rms)
Math on/off
Math
Select math operation type (+/–
/x/FFT/FFT rms)
Operation
Select FFT source channel
Source
Select FFT window
Window
Select FFT result position
Position→VAR
Select vertical scale
Unit/Div
GDS-1000A Series User Manual
28
Measure key
Turn on/off measurement
Measure
Select measurement type
Voltage/Time/Delay
Select measurement item
VAR or Icon(F3) / → VAR
Go back to previous menu
Previous Menu
Run/Stop key
Freeze/unfreeze waveform or trigger
Run/Stop
