GW Instek GPP-3060 - Page 19

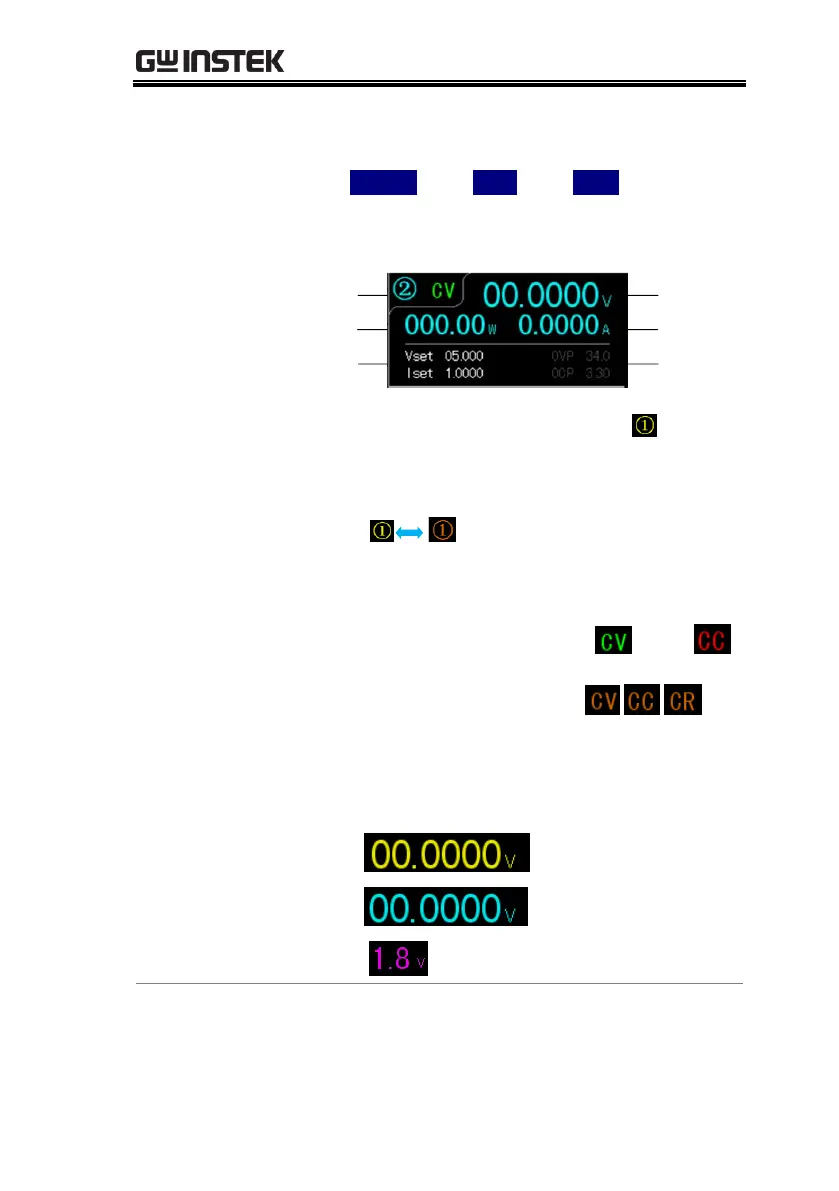

OVERVIEW
19
Channel
distribution
Channel number and distribution vary by
models with different colors identifications:
CH1: Yellow CH2: Blue CH3: Pink
CH1 is master and CH2 becomes yellow under
tracking series and tracking parallel modes.
Single channel
display
Channel/
Status
Power
display
V/I
setting
Voltage
display
Current
display
OVP/OCP
setting area
Channel no.
Color of channel remains the origanl when
not in the state of setting.
Color of channel blinks between the original and
orange when being set.
Channel status
Display active channel state
Power supply: CH1/CH2: green or red
Load Mode: CH1/CH2: orange
Voltmeter
Indicators
Displays the output voltage with up to 6 digits
of resolution. The default units are Volts (V).
CH1：
CH2：
CH3：
Ammeter
Indicator
Displays the output current with up to 5 digits
of resolution. The default units are ampere (A).
