CH1:
CH2：
CH3：None

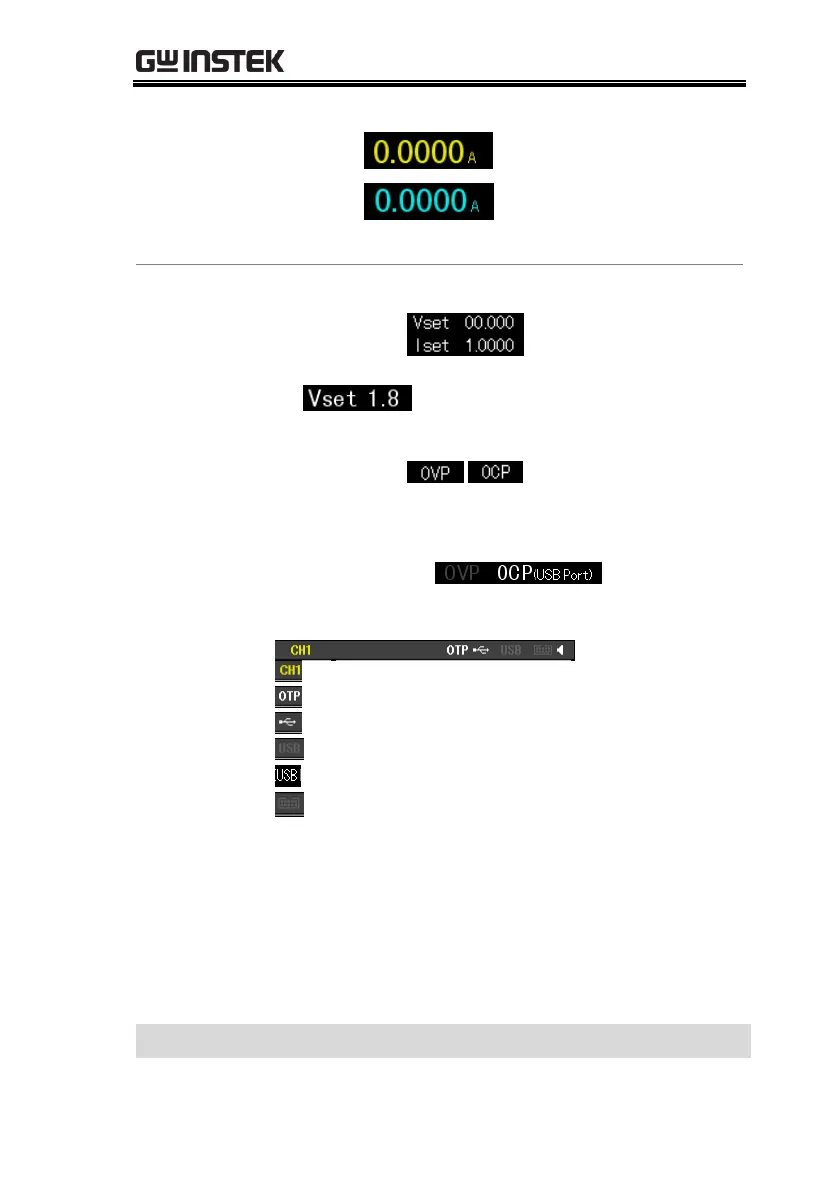

Setting Display
Displays the voltage and current settings.
CH1/CH2:
CH3: displays setting of voltage only
Display OVP/OCP settings
CH1/CH2: , The CH3 OVP is a
fixed value (approx. 5.5V), non-configurable and
with only on or off switch available for user.
OCP is available only for USB output port
(approx. 3.1A)
Status
Indicator
Display the set function/remote control interface
: The active channel under setting status
: The status of OTP protection mode
: The status of USB flash drive connected
: USB remotely disconnected
: USB remotely connected
: The status of control I/O connected
Others: when operating in the series/parallel
tracking mode, the corresponding SER/PAR icons
appear on the display.
when Sequence/Delay/Monitor/Recorder is
activated, the corresponding SEQ/DLY/MON/
REC icons appear on the display.
Function Keys
