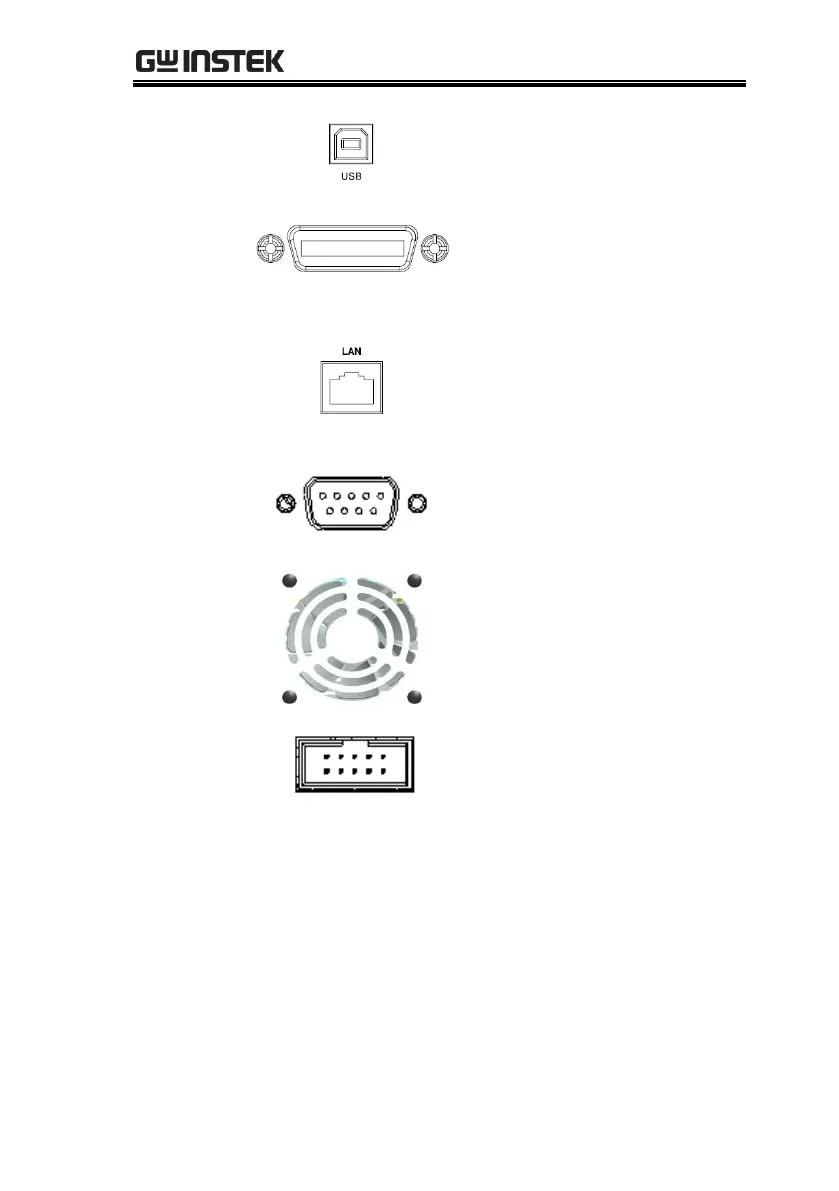

OVERVIEW
25
US
B port
USB device
port for remote
control. See page
101
for
details.
GPIB port
GPIB slave port
for remote
control. Abides to
IEEE488.2
(SCPI) protocol.
See page
108 for details.
LAN port
LAN port for remote
control. See page
110
for
LAN setting and opera
tion
details.
RS
-232 port
RS
-
232
port f
or remote
control. See
page
104
for
details.
Heat sink
fan
It is used to discharge t
he
heat inside the equipme
nt
through air flow.
C
ontrol I/O
port
5 ports in all for
input/output c
ontrol. See
page
85
for deta
ils of
configuration.
24
26
Table of Contents
Table of Contents
3
Safety Instructions
7
Safety Symbols
7
Safety Guidelines
8
Power Cord for the United Kingdom
11
Overview
13
Introduction
13
Key Features
16
Front Panel
18
Rear Panel
24
Constant Voltage/Constant Current Crossover Characteristics
26
Getting Started
27
Start up
28
Load Connection
29
Select Front/Rear Panel Output
31
Turning the Output On/Off
32
Basic Operation
33
Display Change
34
Source Function
37
Independent Output Mode
43
Tracking Series and Tracking Parallel Modes
45
Load Function
50
Sequence Function
54
Set Sequence Output
54
Set Group Parameter
57
Construct Templet
58
Menu Tree
61
Save and Recall
63
Delay Function
66
Set Delay Output
66
Set Group Parameter
69
Menu Tree
72
Save and Recall
74
Monitor Function
77
Set Monitor
77
Recorder Function
81
Set Recorder
81
External I/O Control
85
Key Function Description
87
File Operation
89
Save/Recall
90
Restore Factory Default Settings
93
System Settings
94
System Information
95
System Settings
96
Firmware Upgrading
98
Description of Using Flash Drive
99
Remote Control
101
Connection Usage
103
Usb
106
Gpib
108
Lan
110
Command Syntax
116
Command List
120
Measurement Instructions
120
Display Functions
120
Output Commands
120
Source and Load Commands
121
Status Commands
126
System Commands
127
System Related Commands
128
IEEE488.2 Common Commands
129
Command Details
130
Measurement Commands
130
Display Commands
132
Output Commands
134
Source and Load Commands
139
Status Commands
183
System Commands
190
System Related Commands
199
SCPI Status Registers SCPI
200
Event Registers
202
Enable Registers
202
Status Byte Register
202
Standard Event Register
204
Status Byte Register Commands
205
Standard Event Register Commands
206
Other Status Register Commands
208
Errors
209
Error Message
209
Command Errors
209
Appendix
213
Replacing the Fuse
213
Specifications
214
Optional Accessories
217
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the GW Instek GPP-3060 and is the answer not in the manual?
Ask a question
GW Instek GPP-3060 Specifications
General
Brand
GW Instek
Model
GPP-3060
Category
Power Supply
Language
English
