H3C S5130S-EI series Installation Guide

2-21
Connecting the AC power cord for the fixed AC power supply
(method 2)
1. Insert the two ends of the bail latch through the two holes at both sides of the AC-input power
receptacle.
2. Pivot up the bail latch, as shown in Figure2-23.
3. Connect the plug of the AC power cord to the AC-input power receptacle on the switch, as
shown by callout 1 in Figure2-24.
4. Pivot down the bail latch to secure the plug to the power receptacle, as shown by callout 2 in
Figure2-24.
5. Connect the other end of the power cord to the power source.

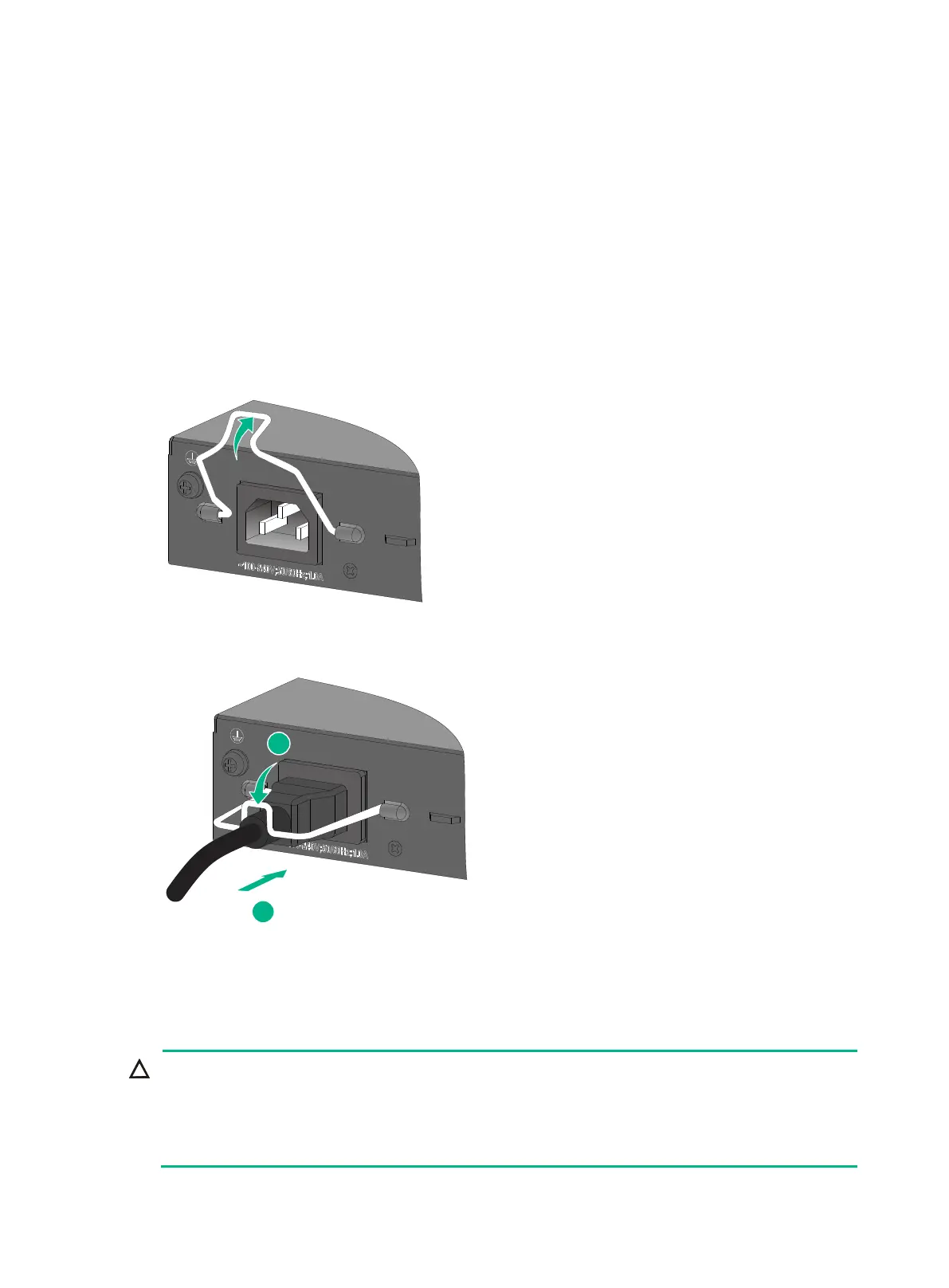

Figure2-23 Connecting the AC power cord for the fixed AC power supply
Figure2-24 Securing the AC power cord for the fixed AC power supply through a bail latch
Connecting the DC power cord for the fixed DC power supply
(method 1)
CAUTION:
•
To connect the switch to a –48 VDC power source
, use the DC power cord provided by H3C. To
avoid connection mistakes, identify the positive (+) and negative (-) marks on the two wires
of the
DC power cord before connection.
• To connect the switch to an H3C RPS, use a power cord compatible with the RPS.
2
1

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
