H3C S5130S-EI series Installation Guide

2-27
(1) Grounding screw
(2) Power supply 1 (PWR1)
(3) Power supply 2 (PWR2)
The S5130S-52F-EI switch comes with power supply slot 1 empty and power supply slot 2 installed
with a filler panel. You can install one or two power supplies for the switch as needed. In Figure2-24,
two PSR150-A1 AC power supplies are installed.
S5130S-28MP-EI

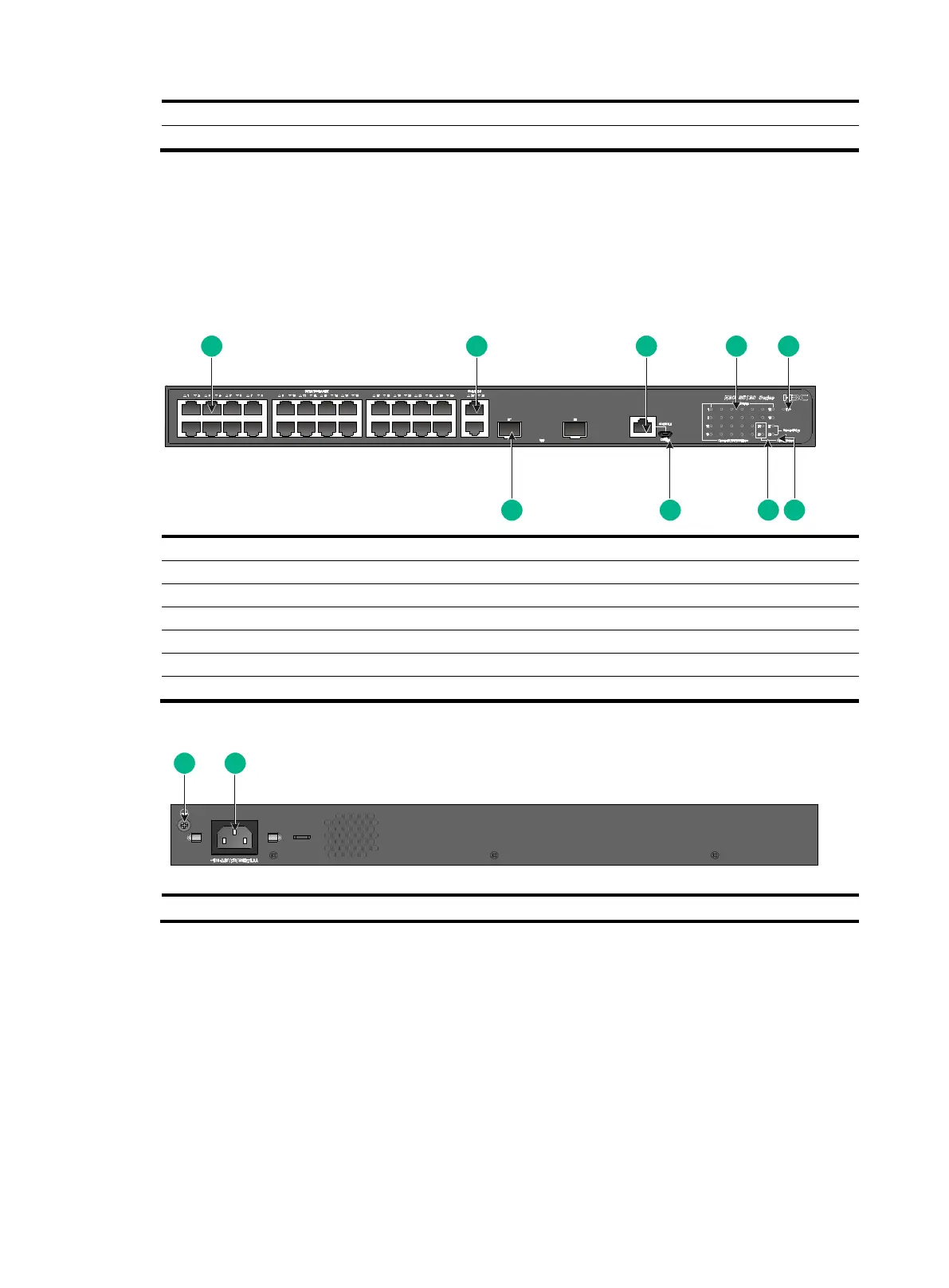

Figure2-25 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 5G/2.5G/1000BASE-T autosensing Ethernet port (5GBASE-T)
(3) Console port (CONSOLE)
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) System status LED (SYS)
(6) SFP port LED
(7) 5G/2.5G/1000BASE-T autosensing Ethernet port LED
(8) Micro USB console port
(9) SFP port
Figure2-26 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
2
3
5
89
4
7
6
1
1
2

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
