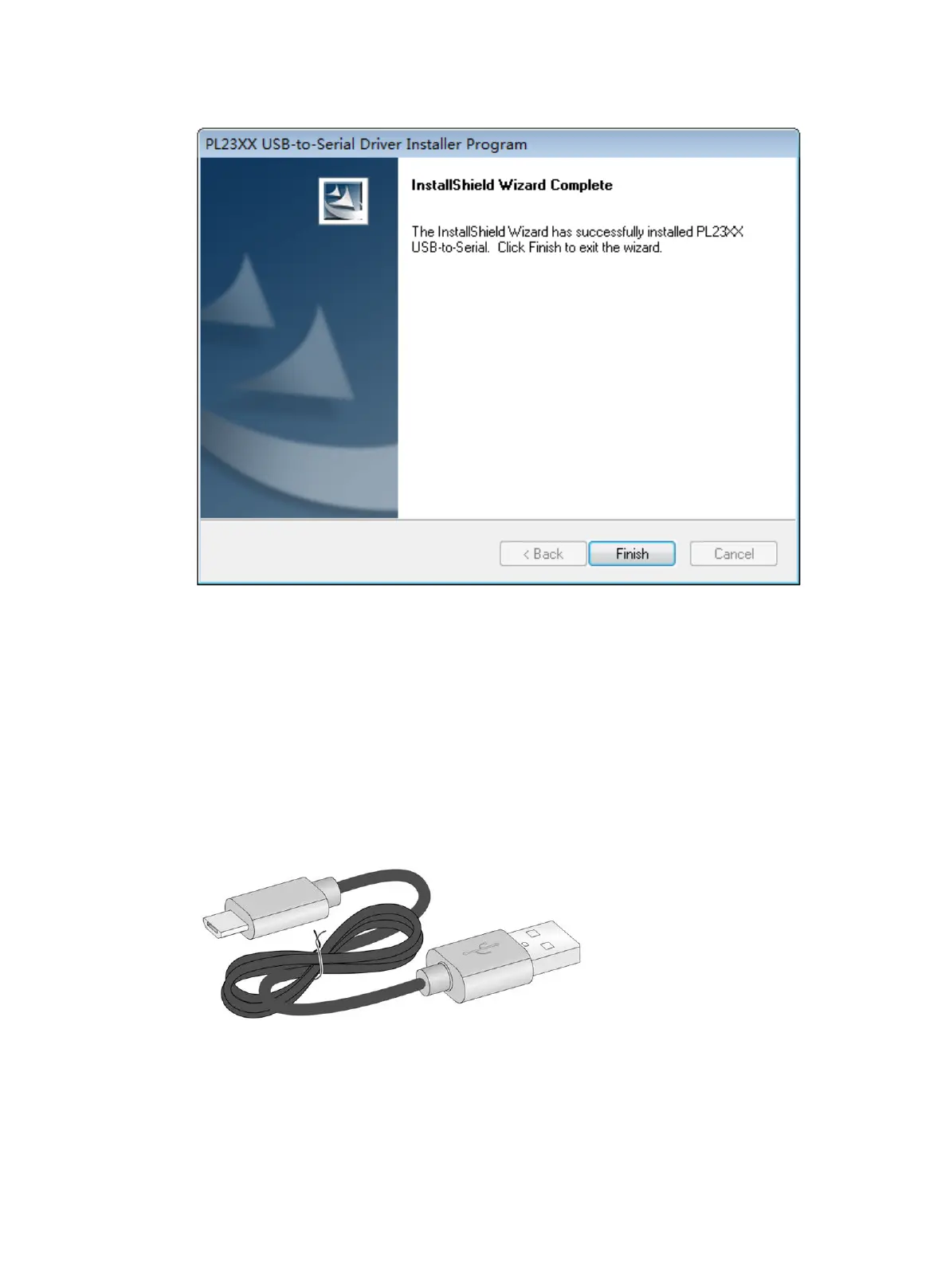

Figure3-5 Finishing the driver installation
6. Connect the standard USB connector of the cable to the USB port of the configuration terminal.
7. Connect the RJ-45 connector of the cable to the console port of the switch.
Connecting a micro USB console cable
A micro USB console cable has a micro USB connector at one end to connect to the micro USB
console port of the switch, and a standard USB connector at the other end to connect to the USB port
on the configuration terminal.
Figure3-6 Micro USB console cable
To connect the switch to a configuration terminal, for example a PC, by using a micro USB console
cable:
1. Connect the standard USB connector to the USB port of the PC.
