H3C S5130S-EI series Installation Guide

2-41
(1) 2.5G/1000/100BASE-T autosensing Ethernet port
(2) SFP+ port
(3) Console port (CONSOLE)
(4) Port LED mode switching button
(5) 2.5G/1000/100BASE-T autosensing Ethernet port LED
(6) System status LED (SYS)
(7) RPS status LED (RPS)
(8) SFP+ port LED
(9) Mode LED (MODE)
(10) Micro USB console port

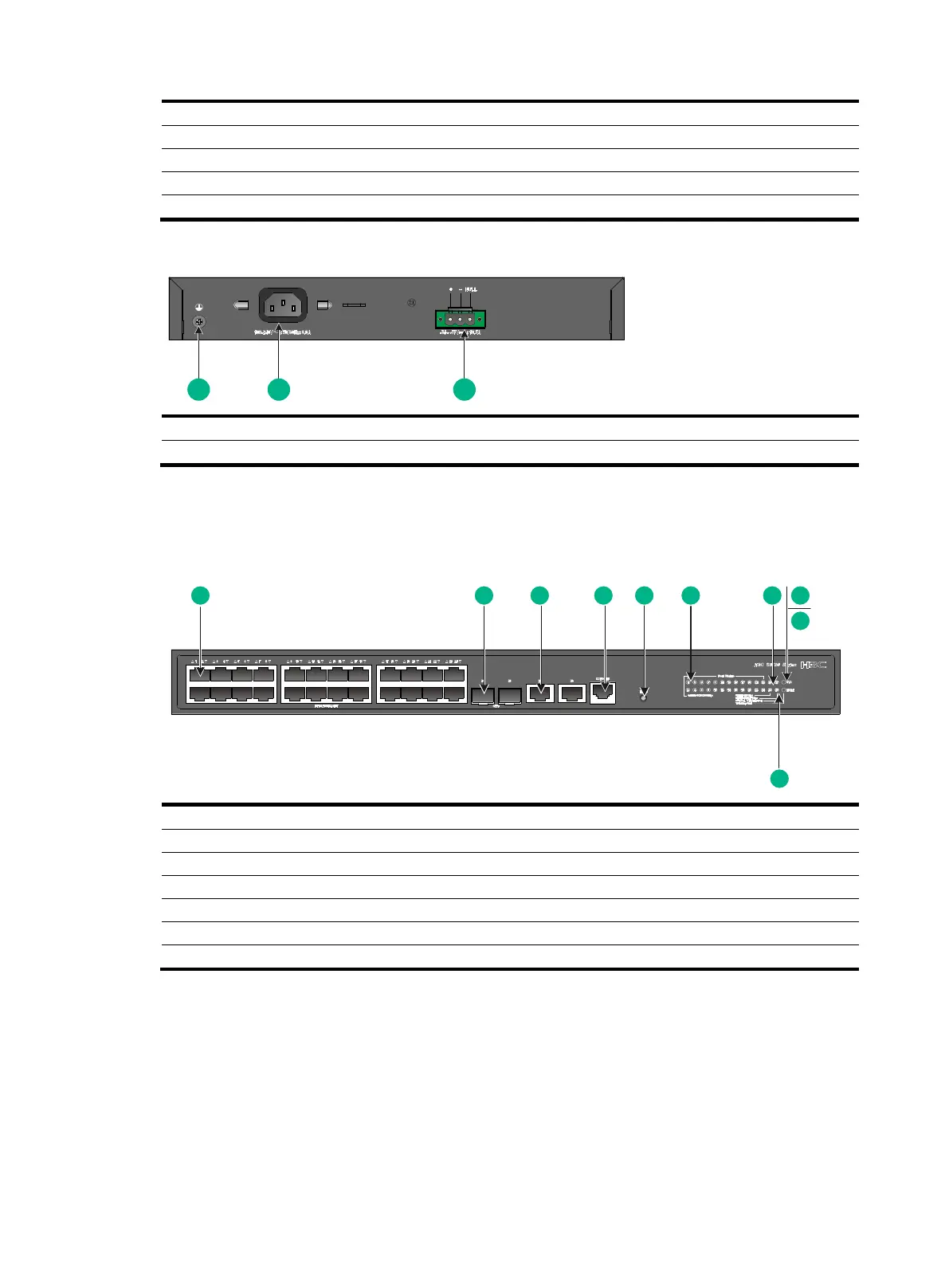

Figure2-66 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
S5130S-28ST-PWR-EI
Figure2-67 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) SFP+ port
(3) 10/5/2.5/1GBASE-T autosensing Ethernet port
(4) Console port (CONSOLE)
(5) Port LED mode switching button
(6) 10/100/1000BASE-T autosensing Ethernet port LED
(7) SFP+ port LED
(8) System status LED (SYS)
(9) Mode LED (MODE)
(10) 10/5/2.5/1GBASE-T autosensing Ethernet port LED
1 32
1
2
3
4
5
6
7
9
8
10

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
