H3C S5130S-EI series - S5130 S-28 Mp-Hpwr-Ei; S5130 S-10 Ms-Upwr-Ei

2-40
S5130S-28MP-HPWR-EI

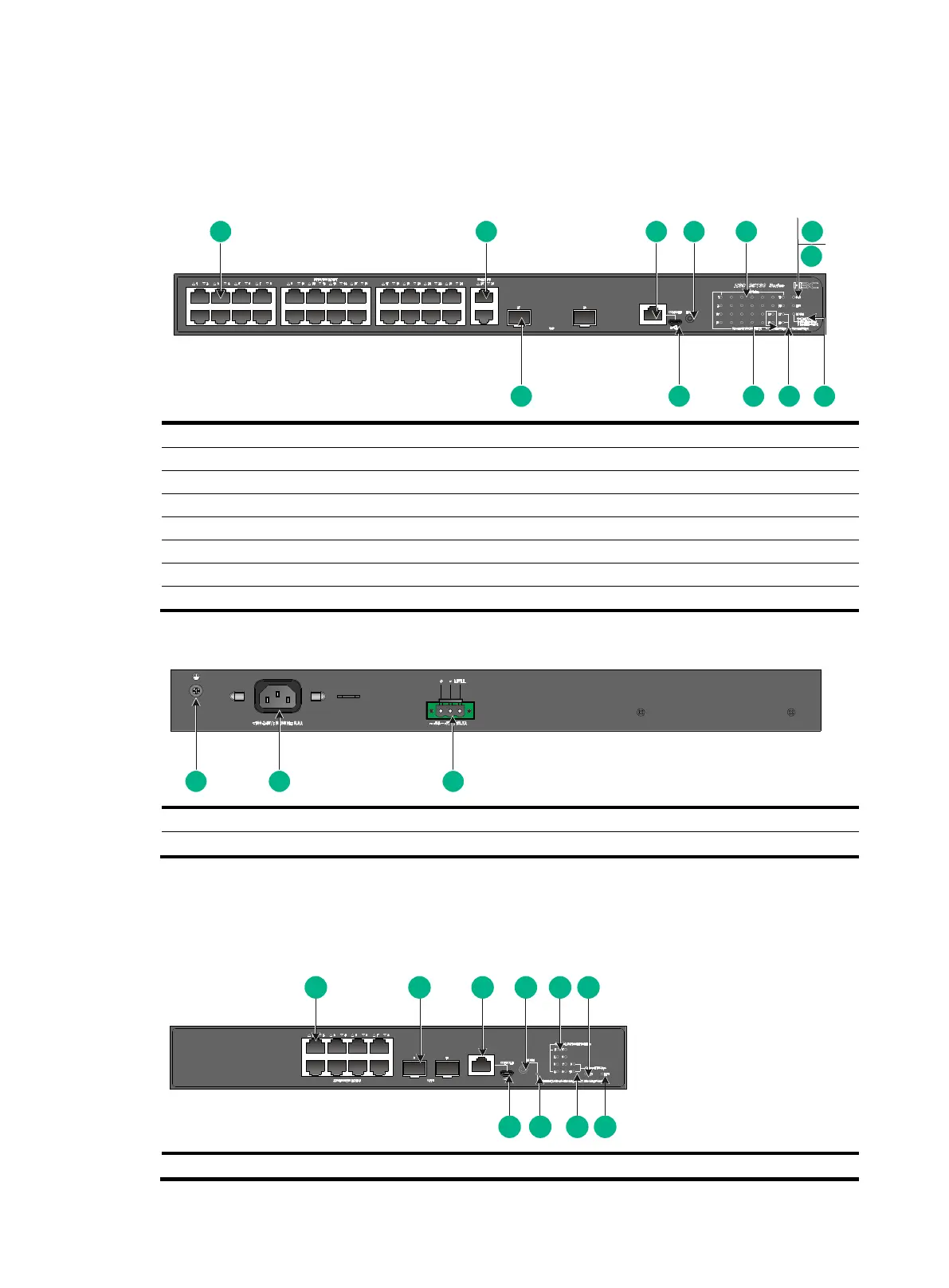

Figure2-63 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 5G/2.5G/1000BASE-T autosensing Ethernet port (5GBASE-T)
(3) Console port (CONSOLE)
(4) Port LED mode switching button
(5) 10/100/1000BASE-T autosensing Ethernet port LED
(6) System status LED (SYS)
(7) RPS status LED (RPS)
(8) Mode LED (MODE)
(9) SFP port LED
(10) 5G/2.5G/1000BASE-T autosensing Ethernet port LED
(11) Micro USB console port
(12) SFP port
Figure2-64 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
(3) DC-input power receptacle
S5130S-10MS-UPWR-EI
Figure2-65 Front panel
(1) 2.5G/1000/100BASE-T autosensing Ethernet port
(2) SFP+ port
