H3C S5130S-EI series Installation Guide

2-33

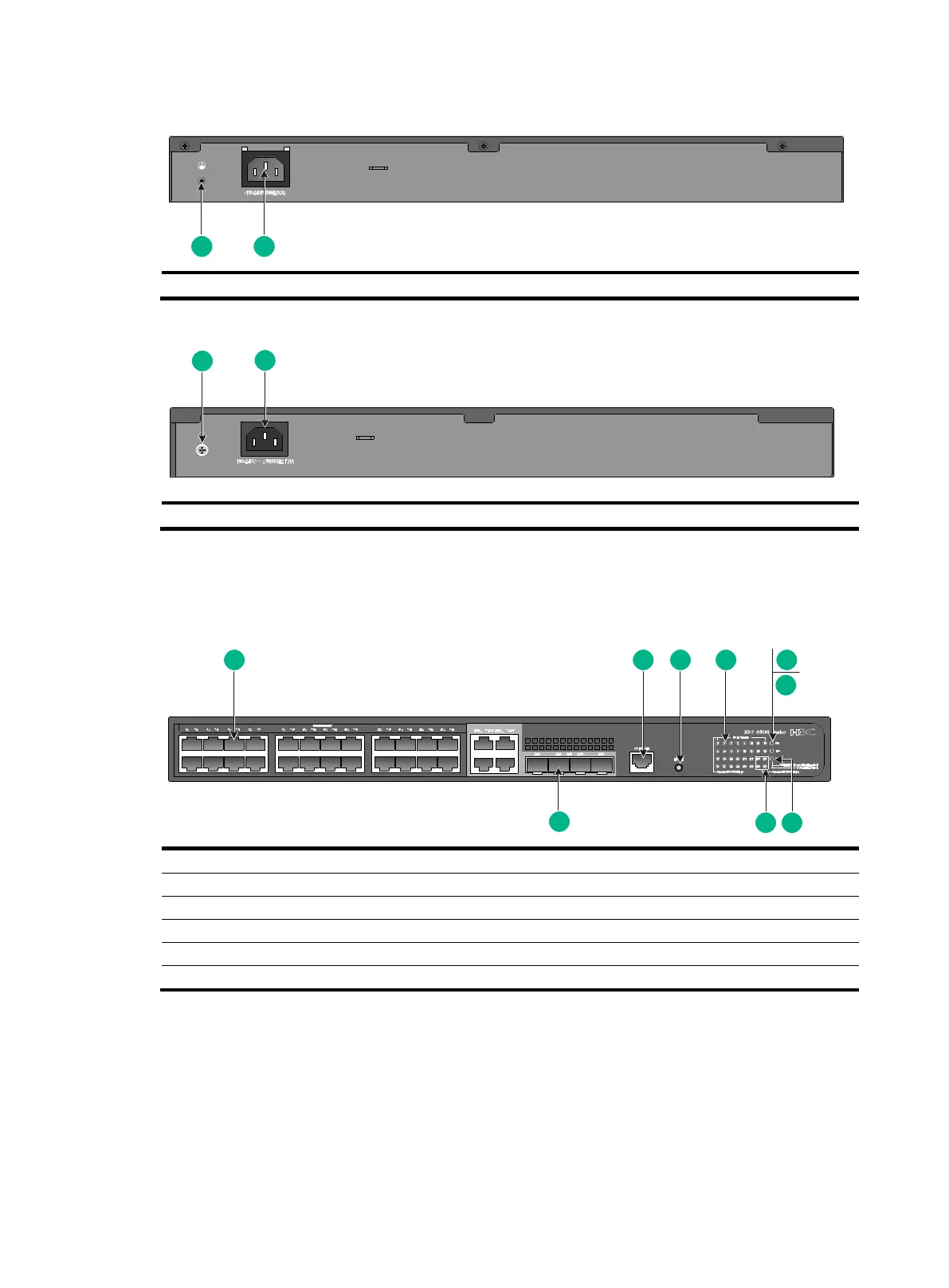

Figure2-42 Rear panel (product code LS-5130S-28P-PWR-EI)
(1) Grounding screw
(2) AC-input power receptacle
Figure2-43 Rear panel (product code LS-5130S-28P-PWR-EI-H1)
(1) Grounding screw
(2) AC-input power receptacle
S5130S-28P-HPWR-EI
Figure2-44 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Console port (CONSOLE)
(3) Port LED mode switching button
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) System status LED (SYS)
(6) RPS status LED (RPS)
(7) Mode LED (MODE)
(8) SFP port LED
(9) SFP port
1 2
1
2
1
9
3
5
2
8
4
6
7

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
