H3C S5130S-EI series Installation Guide

2-21
S5130S-28P-EI/S5130S-28P-EI-M

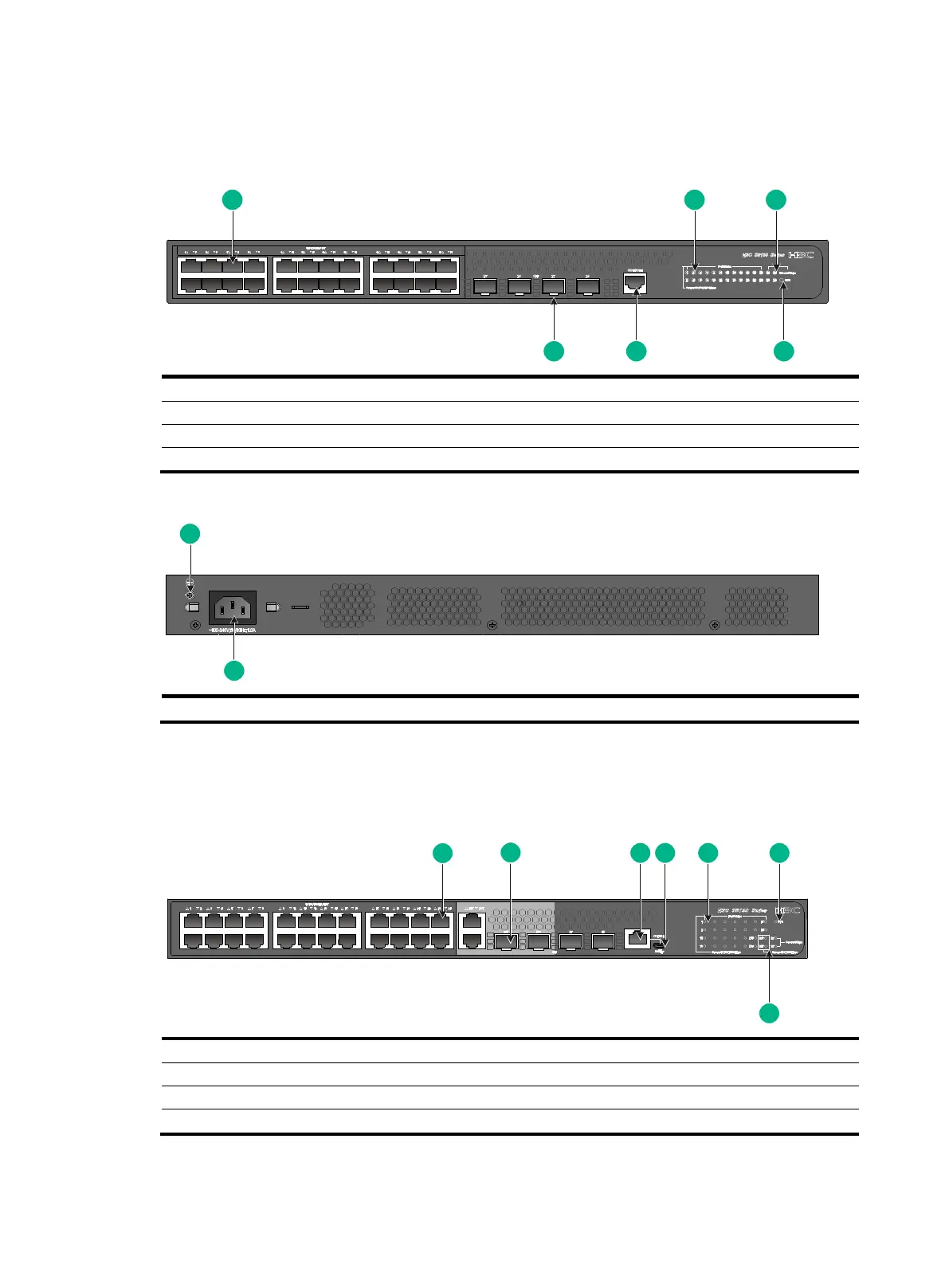

Figure2-7 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP port LED
(4) System status LED (SYS)
(5) Console port (CONSOLE)
(6) SFP port
Figure2-8 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5130S-28TP-EI
Figure2-9 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) SFP port
(3) Console port (CONSOLE)
(4) Micro USB console port
(5) 10/100/1000BASE-T autosensing Ethernet port LED
(6) System status LED (SYS)
(7) SFP port LED
1
5
2
3
6
4
2
1
1
2
3 4
7
5
6

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
