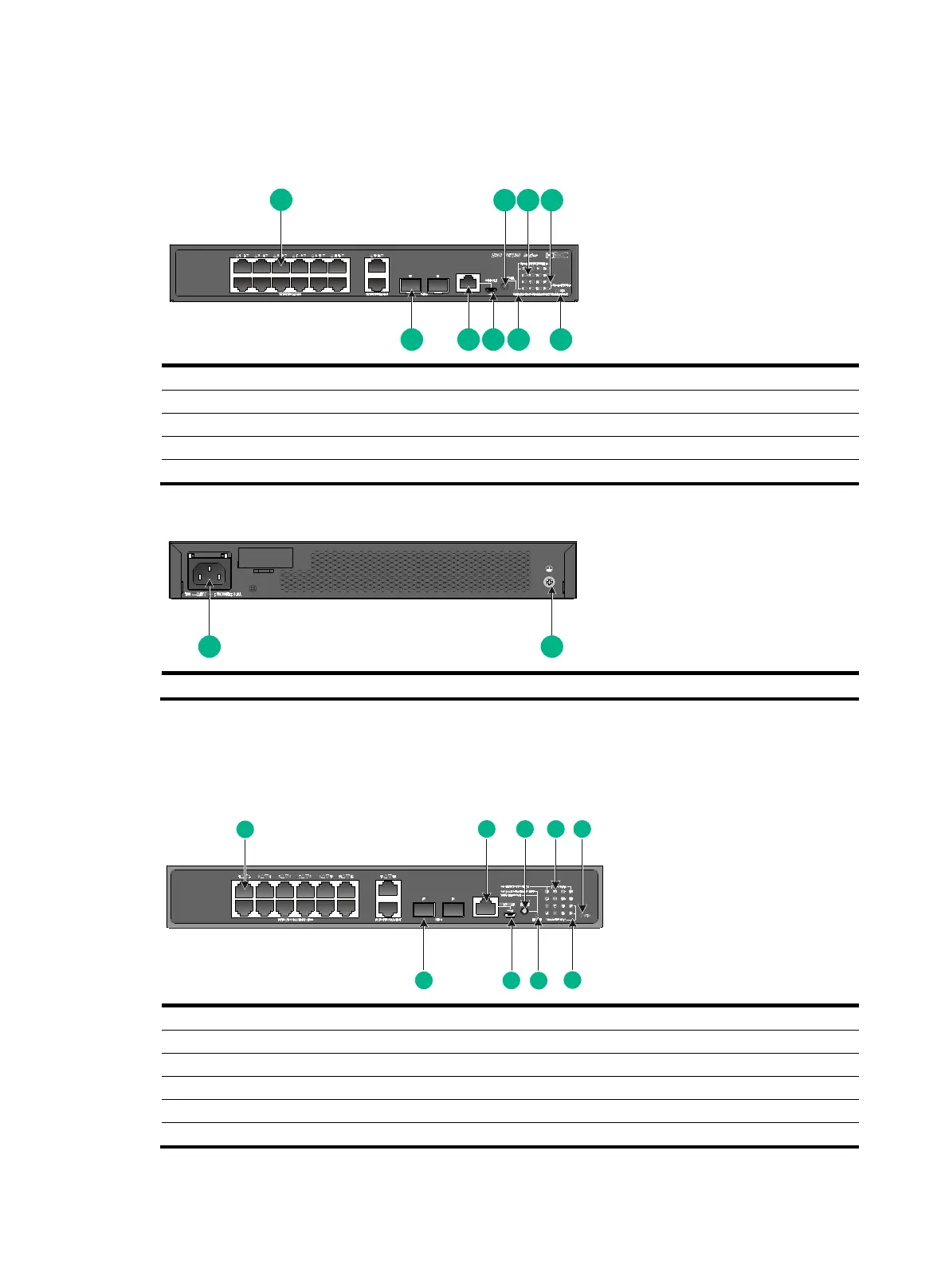

H3C S5130S-EI series Installation Guide

2-35
S5130S-16S-PWR-EI
Figure2-48 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Port LED mode switching button
(3) 10/100/1000BASE-T autosensing Ethernet port LED
(4) SFP+ port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) Micro USB console port
(8) Console port (CONSOLE)
(9) SFP+ port
Figure2-49 Rear panel
(1) AC-input power receptacle
(2) Grounding screw
S5130S-16S-UPWR-EI-Q
Figure2-50 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Console port (CONSOLE)
(3) Port LED mode switching button
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) System status LED (SYS)
(6) SFP+ port LED
(7) Mode LED (MODE)
(8) Micro USB console port
(9) SFP+ port
1
2
3
4
58 6
79
1
2
1
7
52
3 4
6
8
9

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
